AGE: 1955
SPECIFICATIONS:
Area of table: 90" x 18"
Spindle speeds (24): 13 to 1300 RPM
Longitudinal & cross feeds (32): 3/8 to 90 IPM
Vertical feeds (32): 3/16 to 45 IPM
Longitudinal travel: 42"
Cross travel: 14"
Vertical knee travel: 21"
Distance spindle to table: Min- 0" Max- 21"
Rapid traverse: 150 IPM
Taper in spindle: #50NS
EQUIPPED WITH:
Overarm support.
Dual controls.
Coolant.
MOTOR DATA: 25 HP Spindle Motor - 5 HP Feed Motor
OVERALL DIMENSIONS: 8' x 8'6" x 6'
WEIGHT: 15,000 Lbs.
Loaded on Truck...........Toledo, (Dorr St. Whse.) OH

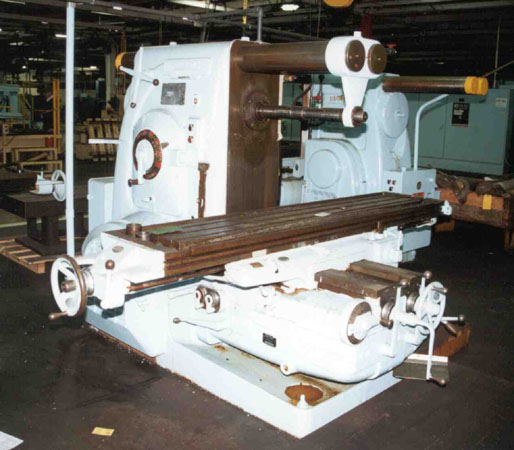

**PHOTO AVAILABLE
