New and Used Metalworking Machinery


6" x 2-1/2" ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP   Our stock number: 15978

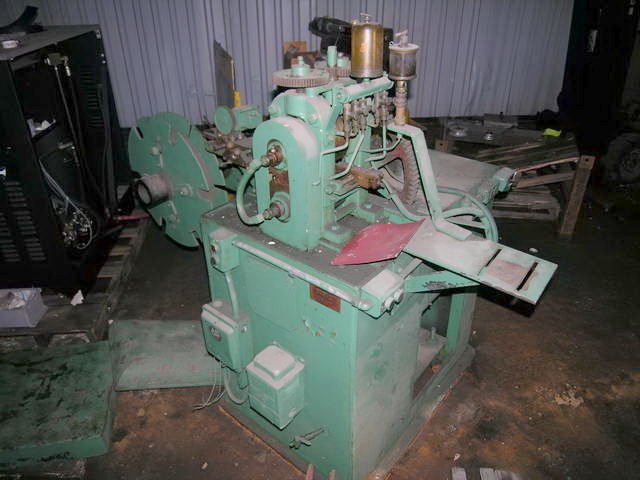

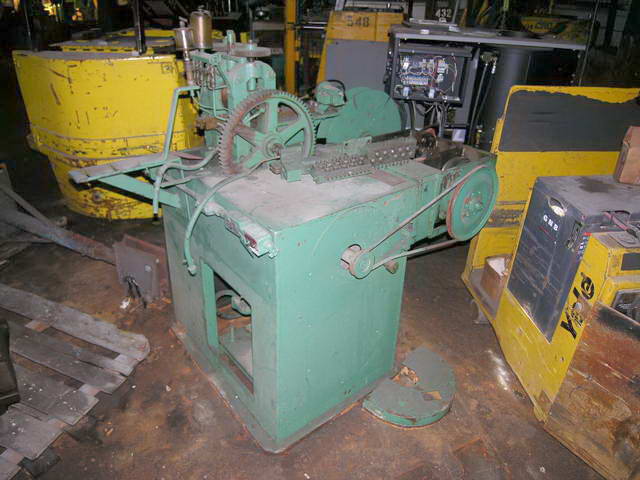

6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP

Click on picture below for larger version
6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP
6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP6 x 2-1/2 ABC, 2-Hi, 22-Roll 2-Plane Str, Recoiler, 5 HP

AGE: 1947

Specifications:

Roll Face - 2-1/2"

Roll Diameter - 6"

Manual Screw Down
Water Cooled Rolls

Straightener - Shuster, 22 Roll, 2-Plane, Size 1/16

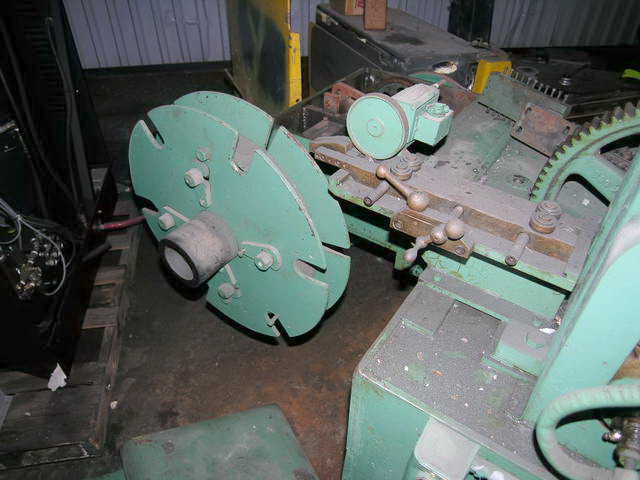

Recoiler - Drum Coiler 16" Diameter x 2-1/2" Traverse
x 20" Outside Diameter

Motor Data - 5 HP, AC, 220/60/3-1750 RPM

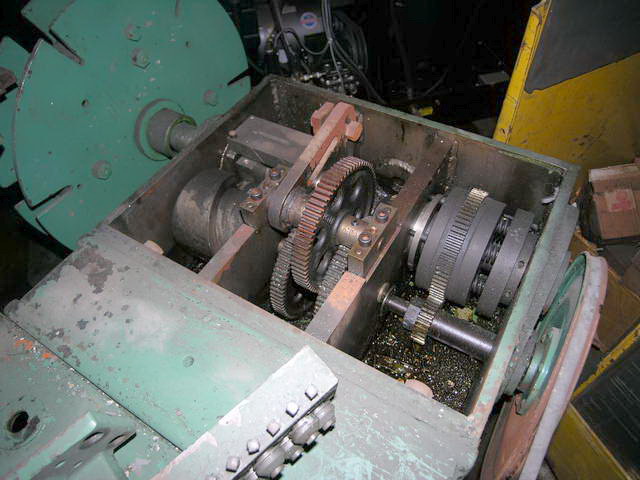

Gearbox Data - 8:1 Ratio, 1750 RPM

Speed - 314 FPM Estimated

Overall Dimensions - 6'4" W x 3'4" L x 5'4" High
Approximate Weight - 2,500#

At Location..................................................
*PHOTO AVAILABLE
