54" x 6" x 20,000 Lb BRANER Slitting Line   Our stock number: 51439

54 x 6 x 20,000 Lb BRANER Slitting Line

Click on picture below for larger version
54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line
54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line54 x 6 x 20,000 Lb BRANER Slitting Line

SPECIFICATIONS:

Material: CR, Mild Steel
Coil Weight: 20,000 Lbs.
Material Thickness: 0.012" to 0.120"
Coil O.D., Max.: 52"
Coil Width, Max.: 54"

Slitting Capacity: 20 Cuts Of 0.018"
20 Cuts Of 0.048"
7 to 8 Cuts Of 0.090"
3 to 4 Cuts Of 0.120"

Line Direction: Right to Left

CONSISTING OF:

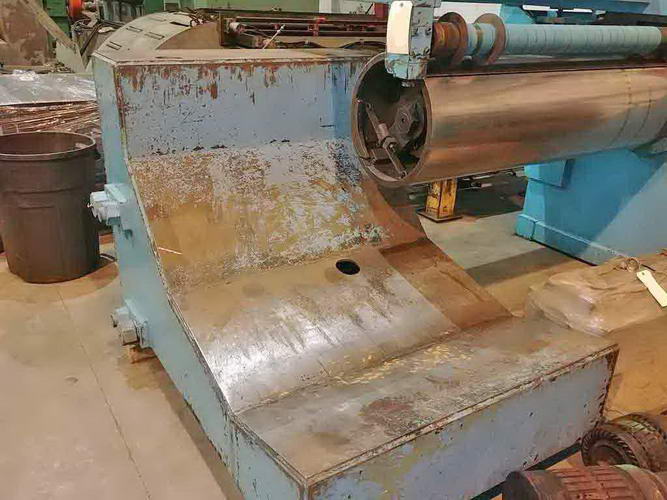

Entry Coil Car:

Above Floor Type

Coil O.D., Capacity: 72"
Bed Width: 48"
Floor to Bottom of "V" Cradle, Approx.: 12"
Hydraulic Lift Cylinder: 7" Bore x 20" Stroke
McGill Camrols: 5" Dia.

Cable Reel
Hand Pendant Control

Motor Data: 3 HP Self-Contained Hydraulics
Overall Dimensions: 82" L x 58" W x 50" High

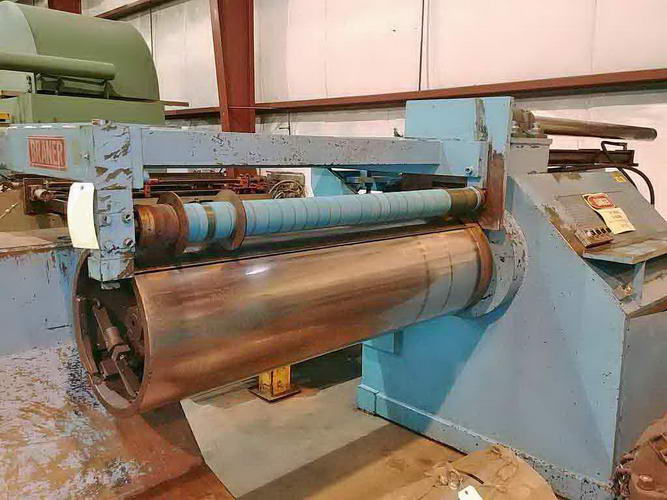

Uncoiler:

Coil I.D.: 20" to 24"
Width: 57"
Powered Holddown Roll, Steel: 50" W x 6" Dia.
Passline, Floor to Center of Mandrel: 41"

Hydraulic Expansion
4-Segment Mandrel
Hydraulic Motor Threading Drive
Sliding Base
Wichita Water Cooled Brake

Overall Dimensions: 167" L x 54" W x 74" High

6" Dia. x 58" Face Rolls Peeler Table:

Hydraulic Cylinder Up / Down and In / Out

Entry Pinch Rolls:

Bottom Roll Driven by Hydraulic Motor

Entry Side Guides:

Manual Adjustment

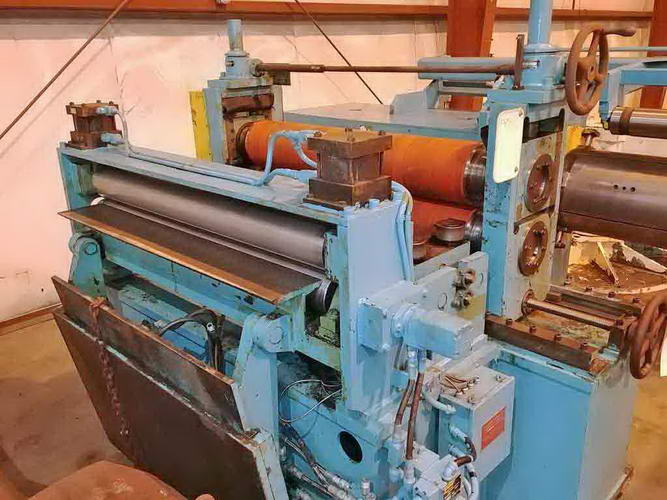

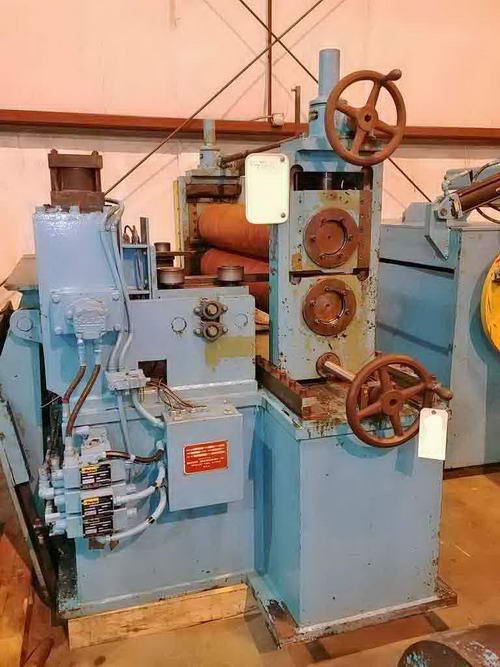

6" Dia. x 56.5" Face Arbors Slitter Head:

Knife Diameter: 9" to 11"
Passline: 45.5"

Jet Nuts
Parallel Arbor Adjustment

Motor Data: 5 HP AC Threading, 1740 RPM, 230/460
Foote Jones Reducer With 105.9:1 Ratio
Overall Dimensions: 140" L x 64" W x 77" High

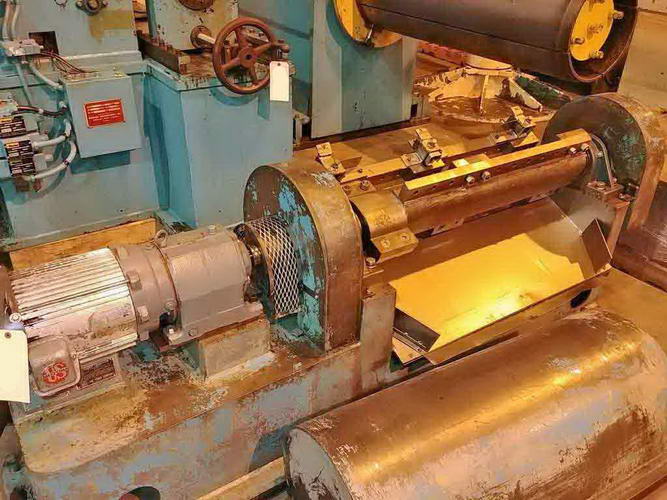

YODER Scrap Chopper:

Motor Data: 7.5 HP AC, 1745 RPM, 208-230/460
Overall Dimensions: 98" L x 26" W x 34" High

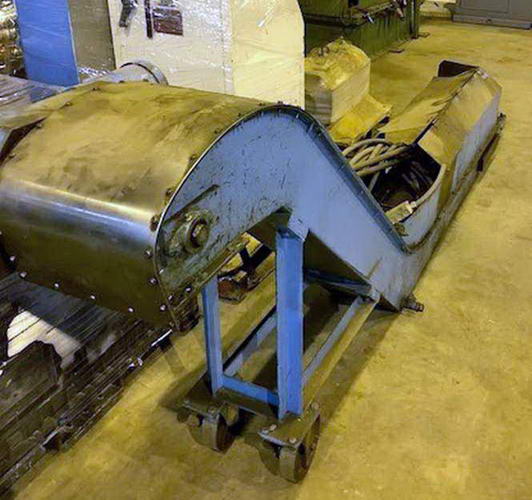

LIVONIA MAGNETICS Scrap Conveyor:

Motor Data: .5 HP AC Thru Reducer, 1725 RPM, 230/460
Overall Dimensions: 140" L x 26" W x 49" High

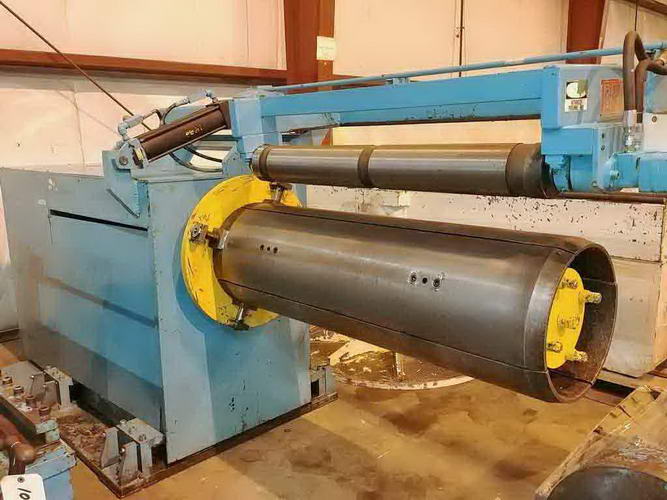

Recoiler:

Drum: 20" Dia. x 64" Face
Passline, Floor to Center of Drum: 42"

Powered Clamp and Expansion
Hydraulic Pushoff
Overarm Separator

Motor Data: 50 HP CMC DC, 1750 RPM, 500 Volt
Reducer With 43:1 Ratio
Overall Dimensions: 168" L x 76" W x 73" High

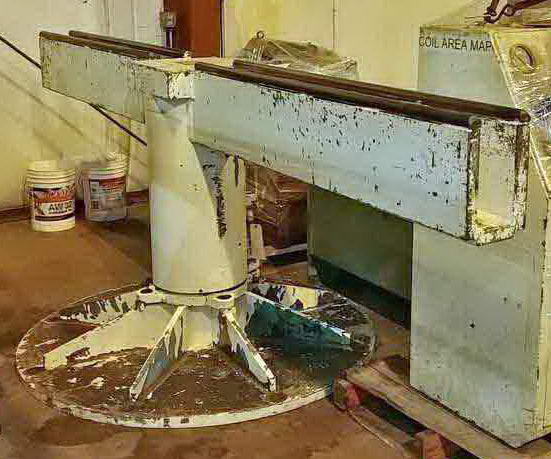

2-Arm Exit Turnstile:

Arm Length, Useable: 59"
C-Hook Slot: 5" W x 11.5" High
Passline, Floor to Top of Arms: 49.5"
Base: 60" Dia.

C-Hook Type Arms
Manual Rotation
No Pushoff

Overall Dimensions: 142" L x 60" W x 49.5" High

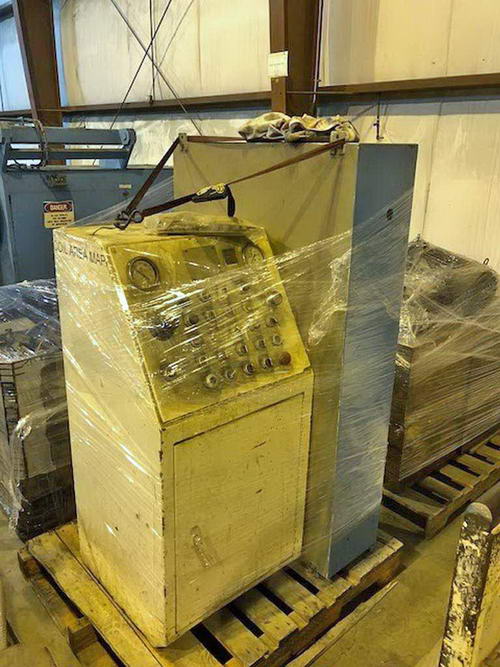

Main Operators Panel:

Overall Dimensions: 26" L x 24" W x 51" High

Slitter Tooling

CMC Drive Panel:

Overall Dimensions: 36" L x 14" W x 62" High

20 HP AC Main Hydraulic Power Unit

Drawings Included:

Mechanical / Electrical
Foundation

Spare Parts:

Wichita Water Cooled Brake
Motor for Hydraulic Power Unit
