14 STND B & K Complete AG Panel Line, 36" Coverage, 95 FPM, Flying Post-Cut-Off   Our stock number: 51378

14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off


Click on picture below for larger version
14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off
14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off14 STND B & K Complete AG Panel Line, 36 Coverage, 95 FPM, Flying Post-Cut-Off

AGE: 1975


SPECIFICATIONS:

Finished Width: 38" to 39" (Depending On Width Of Blank
Used: 40.5" to 41.375")
Total Coverage For Use Of Each Panel: 36"

Runs: 80 to 95 LR/Minute

Electrics: 440/60/3

CONSISTING OF:

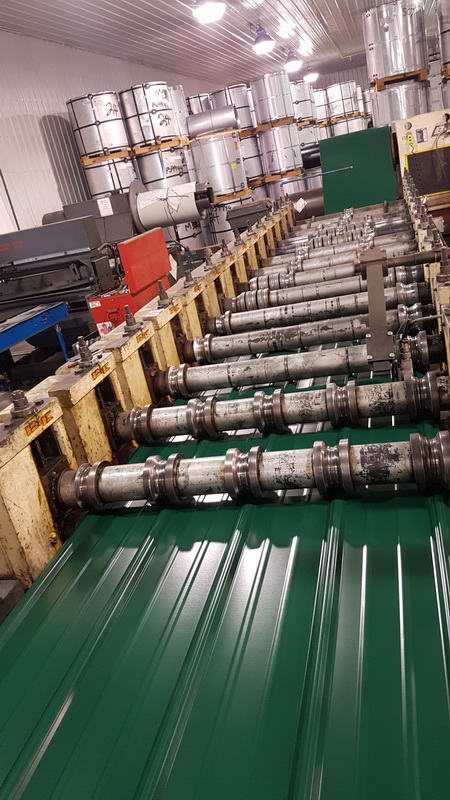

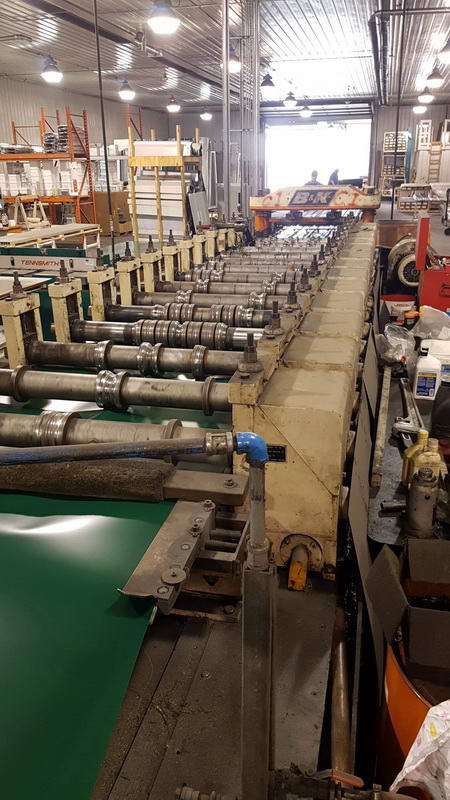

14-Stand B & K Model 2B-11 Roll Former:

Note: This is a 16 Stand Base

All Uppers are Idled (no gears or links)
Spindle Diameter: 3-1/2"
Roll Space: 42"
Vertical: 4-1/2" to 9-1/2"
Horizontal: 16"
Center Bottom Shaft To Bed: 7 1/2"
Width of Bed, Face of Gear Boxes to Outer Edge: 52"

EQUIPPED WITH:

Three Jog/Stop Electrical Boxes Along the

Front of Base
WER Industrial D.C. Variable Speed Drive
Rotary Encoder for Measuring and Cutting to Length

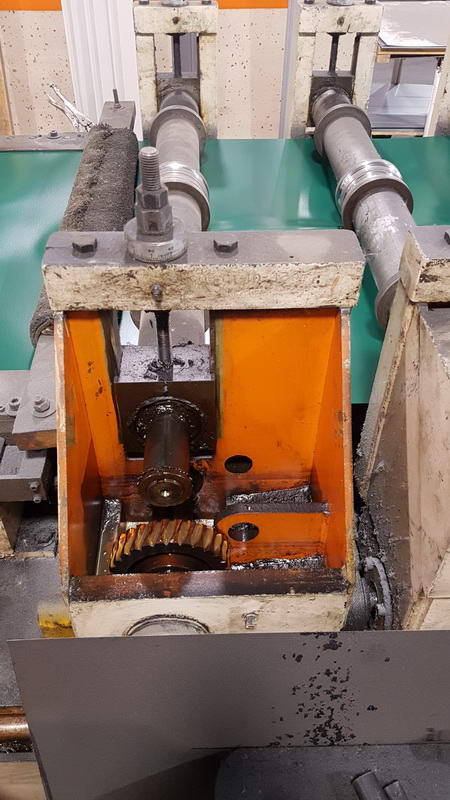

CONDITION: Good - All 14 gear box photos are Available
Spindles Have no Tooling Impression Marks

Motor Data: 30 HP, 230/480/60/3
O.A.D.: 102" x 291" x 58" high

20,000 Lb. Model BKU-M1-01 Uncoiler:

Age: 1975

Coil I.D.: 18-1/2" to 21-1/2"
Width: 42"

Hydraulic Expansion
Hydraulic Sliding Base
Air Brake
Hydraulic Rotation

Motor Data: 7.5 HP, 480 Volt

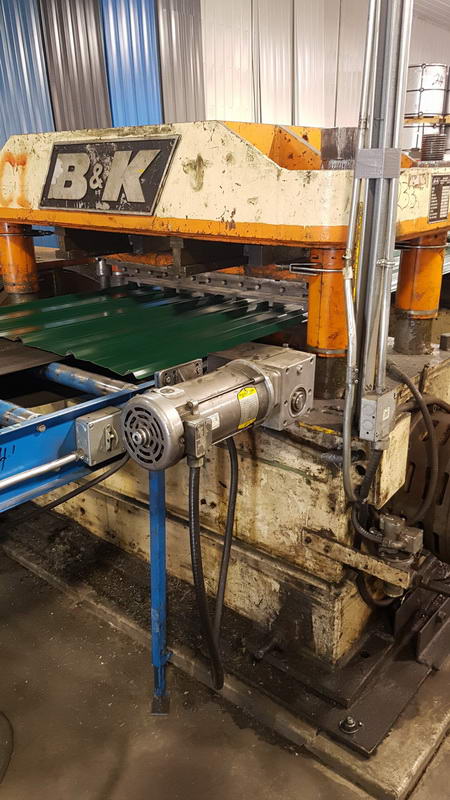

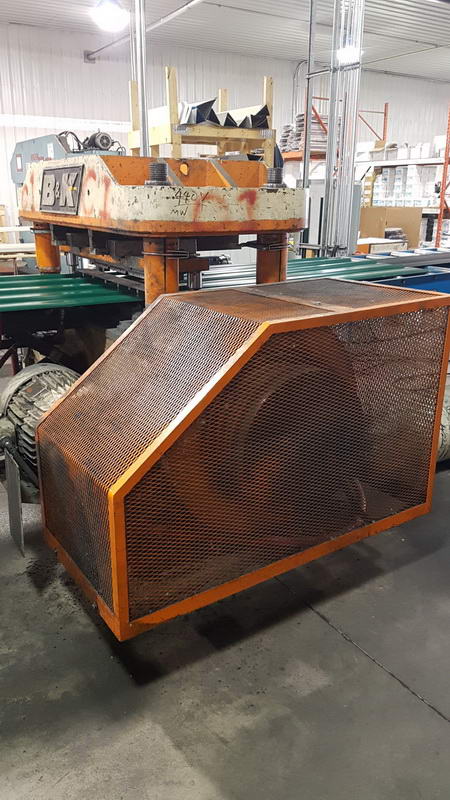

60 Ton B & K Model 4P-16-01 Flying Cut-Off Press:

AGE: 1975

4-Post Under Driven, SN 101
Capacity: 60 tons at 1/4" Off Bottom
Stroke: 3"
Shut Height: 11-1/2" to 14-1/2"
Cuts Per Minute: 30
Between Posts: 18" x 52"
33" Floor to Top of the Bed
Air Clutch & Brake

Induction Motor Data: 15 HP, 230/460/60/3, 1175 RPM

EQUIPPED WITH:

Flying type Cut-Off Die
Power Belt Conveyor
AC Vari-Speed Drive With DC Clutch
Control Panel & Batch Input
Simultaneus 4-post Shut Height Adjustment

OVERALL DIMENSIONS: 36' Long (Uncoiler to Shear Cut Of Press)
WEIGHT: 45,000 Lbs.
CONDITION: Good, As Removed Directly from Service
