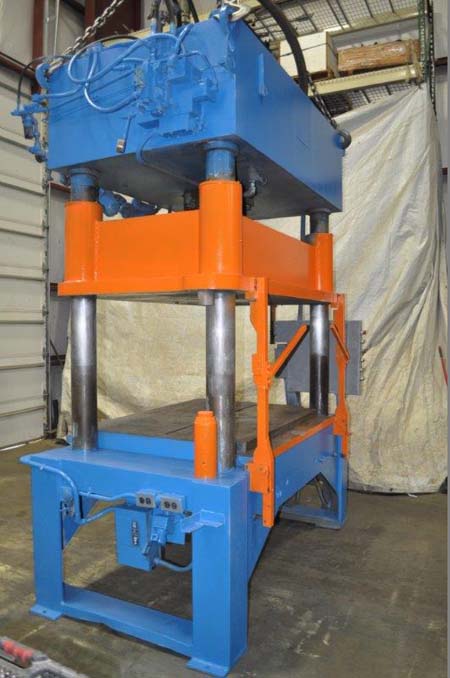

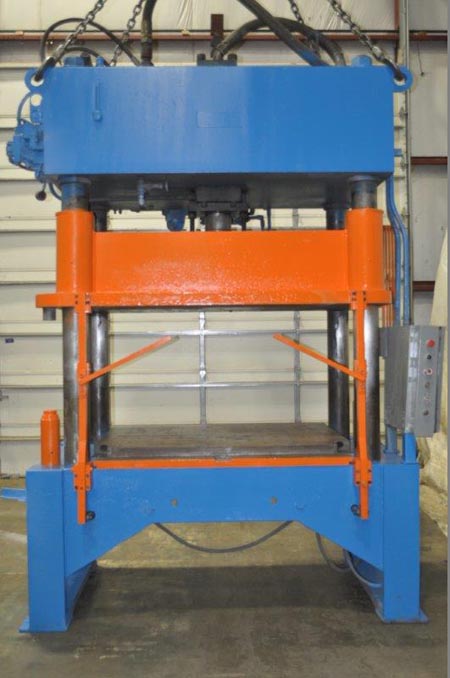

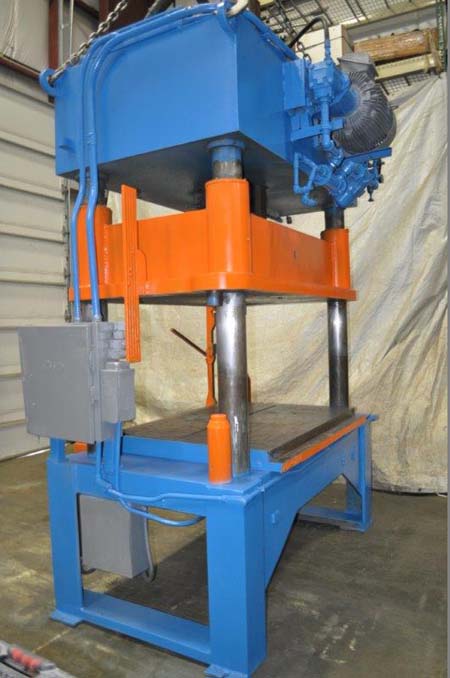

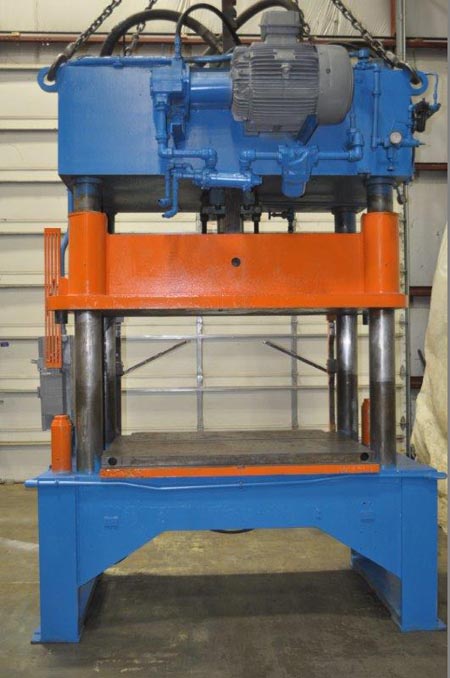

50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24"Str, 38"DLO, 86" x   Our stock number: 51373

50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24 Str, 38 DLO, 86 x

Click on picture below for larger version
50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24 Str, 38 DLO, 86 x50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24 Str, 38 DLO, 86 x50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24 Str, 38 DLO, 86 x50 Ton KARD MODEL ETP-7550 4-POST HYDRAULIC PRESS, 24 Str, 38 DLO, 86 x

AGE: N/A
MODEL: ETP-7550

SPECIFICATIONS:

Capacity: 50 Tons
Stroke: 24"
Daylight: 38"
Main Cylinder Diameter: 7"
Bed Size: 86" x 51"
Ram Size: 80" x 48"
Distance Between Tie Rods: 60" x 31"
Tie Rod Diameter: 6"
Max. PSI: 2350
Bolster Plate Drilled & Tapped: 44" x 60" x 2-1/4"

EQUIPPED WITH: Heat Exchanger
Ram Safety Lock w/Air Release
Vickers Hydraulics
Rapid Advance & Return

Motor Data: 25 HP, 230/460/3/60 - 1175 RPM

Overall Dimensions: 98" LR x 63" FB x 161" High
Condition: GOOD
