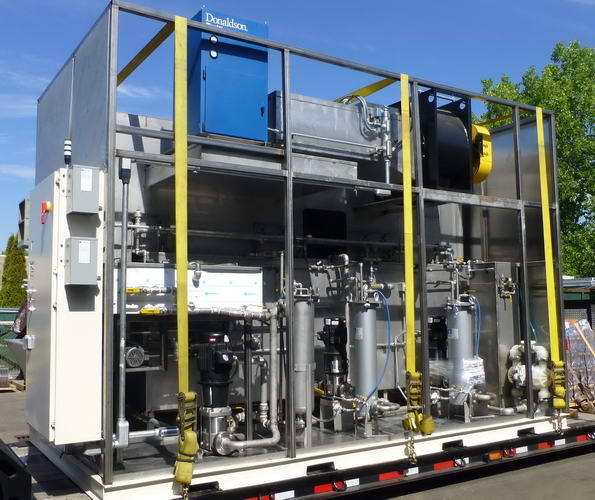

24" W x 14" H JENFAB 4-Stage Parts Washer, Wash / Rinse / Ultrasonic Rinse / Dry   Our stock number: 51247

24 W x 14 H JENFAB 4-Stage Parts Washer, Wash / Rinse / Ultrasonic Rinse / Dry

AGE: 2015
MODEL: VCC200

SPECIFICATIONS:

Load/Unload Opening: 24" W x 14" High
Programmable Cycle Time
Max. Part Size: 20" LR x 10" FB x 8" High
Number of Cross Rods: 96 to 108 if on 12" Centers

NOTE: Parts can be Hung from Hook/Fixture or Placed into Baskets

(Not Included)

Cycle #1:
Immersion Clean w/Submerged Turbulated Spray, 13 Station

index
Temperature: 160 Deg. F Max.
Cycle #2:
Spray Filtered Wash Solution
Temperature: 160 Deg. F Max.
Cycle #3:
Drain
Cycle #4:
=Immersion Clean w/Ultrasonics, 13 Station Index
=Temperature: 160 Deg. F Max.
Cycle #5:
=Drain
Cycle #6
=Immersion Submerged Turbulated Spray Inhibiting Rinse, 10
= Station Index
=Temperature: 140 Deg. F Max.
Cycle #7:
=Spray Filtered Inhibiting Rinse Solution
=Temperature: 140 Deg. F Max.
Cycle #8:
Drain
Cycle #9:
Dry, Recirculating Blow Off Dryer Located Across the Top

of Unit as Parts Return to the Load/Unload Position

Originally Built As:

Master Cycle Time: 15 Cans Every 15 Seconds
5 Sec. Index, 10 Sec, Dwell
Min. Time in Wash Tank: 195 Seconds Approx.
Min. Time in Ultrasonic Wash Tank: 195 Seconds Approx.
Min. Time in Rinse Tank: 195 Seconds Approx.
Min. Time in Dryer: 240 Seconds Approx.
Number of Hanging Positions: 75
Cross Rod Spacing: 14" (Each Position)
Electrical: 460/3/60, FLA TBD; 24 VDC Control
2" Process Water Connection, Stainless Steel Piping & Solenoid

Valves
2" Waste Water Connection
1" Compressed Air Connection
Wash Tank: 150 GPM, 5 HP Gusher SS Pump #11019-AH-B-SS-SE
Through Bag/Magnetic Filter with Pressure Switch to Turbulation

Station
Electric Heat to 160 Deg. F. 63 KW, (2) Protech #9HS31.5434-P2-

X72
Automatic Water Make-Up Feed from Filtered Ultrasonic Wash
Solution; Sloped Bottom, Access Panels Through Chain Frame on

Both Sides of Machine
45 Gal. Oil Separator with (1) One 2 HP Pump
Ultrasonic Wash Tank: 40 GPM, 3 HP Gusher SS Pump #11019-CIH-B
Through Multi-Cartridge Filter with Pressure Switch
Electric Heat to 160 Deg. F. 63 KW, (2) Protech #9HS31.5434-P2-

X72, 4000 Watts/25KHZ Ultrasonic; Automatic Water Make-Up Feed

From Filtered Rinse Solution; Sloped Bottom, Access Panels

Through Chain Frame on Both Sides of Machine
Rinse Tank: 100 GPM 3 HP Gusher SS Pump #11019-CIH-B Through

Multi-Cartridge Filter with Pressure Switch
Electric Heat to 160 Deg. F. 63KW, (2) Protech #9HS31.5434-P2-X72

Automatic Water Make-Up from Water Header, Sloped Bottom Access

Panels Through Chain Frame on Both Sides of Machine
Recirculating Dryer: 8000 CFM, 10 HP, New York Blower Size 20 60

KW Electric Heat to 180 Deg. F
High Temperature Cut Off Switch & Pressure Monitoring of Air Flow

for Heater Protection
Chain Conveyor: 1.5 HP, 460/3/60; Variable Frequency Drive
Donaldson Torit Mist Collector; WSO-15, 850 CFM, 1.5 HP
Donaldson Torit Mist Collector; WSO-15, 850 CFM, 1.5 HP
