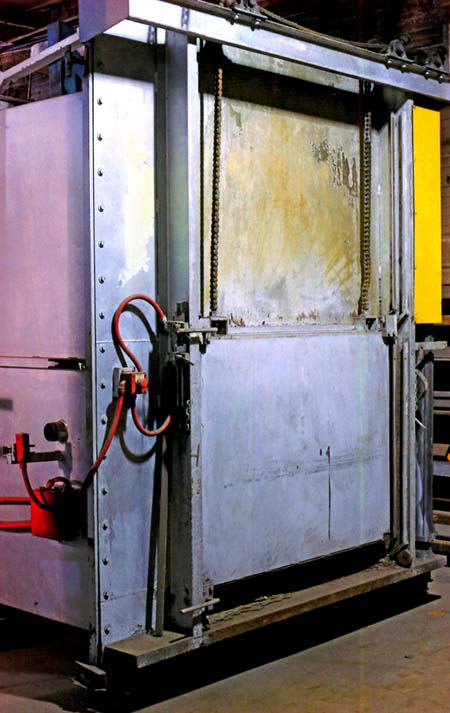

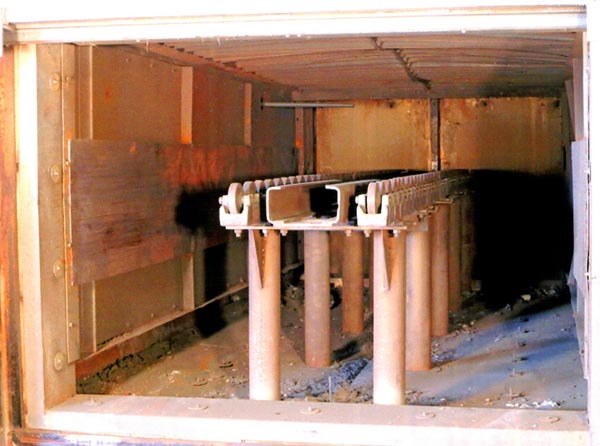

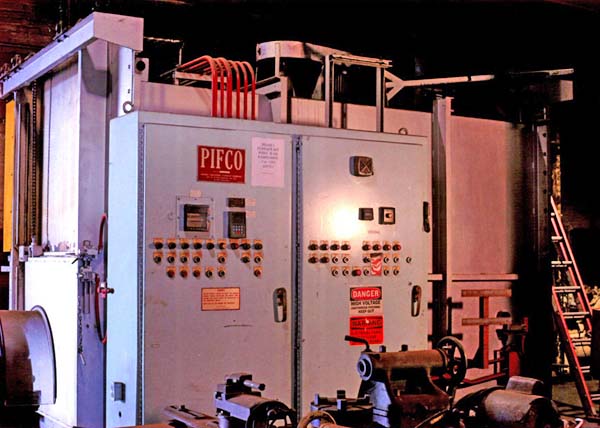

PIFCO TEMPER FURNACE, 1988,   Our stock number: 51212

PIFCO TEMPER FURNACE, 1988,

Click on picture below for larger version
PIFCO TEMPER FURNACE, 1988,PIFCO TEMPER FURNACE, 1988,PIFCO TEMPER FURNACE, 1988,PIFCO TEMPER FURNACE, 1988,

AGE: 1988

SPECIFICATIONS:

Size: 11' x 13' x 11' High
Max. Operating Temperature: 950 Deg. F
Rated for 250 Lb. Net Weight x 37.4" Long Pallet Loaded

Every 15 Minutes
Furnace Holds (3) Pallets
Approx. 19 Minutes to Operating Pressure
45 Minutes in Furnace @ 15 Minute Load Cycle

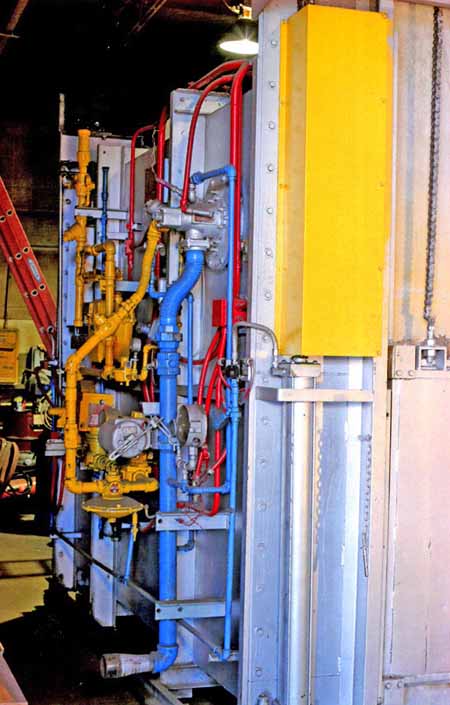

Heated by (1) Gas Burner Approx. Rating 600,000 BTU/Hr

Utilities Required:
1000 BTU Natural Gas @ 5 PSI
480/3/60
Water 80 Deg. F Max. @ 20 PSI
Compressed Air 60PSIG Min.
Adequate Drain for Water

Condition: GOOD
