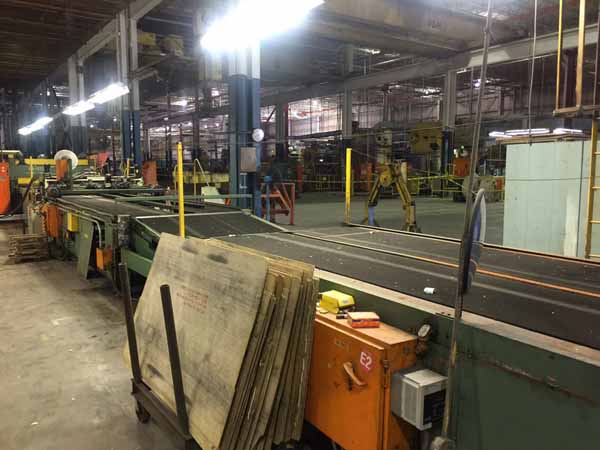

60" x .065" x 40,000 LB. ROWE CUT TO LENGTH LINE   Our stock number: 51184

60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE

Click on picture below for larger version
60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE
60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE60 x .065 x 40,000 LB. ROWE CUT TO LENGTH LINE

AGE: N/A

SPECIFICATIONS:

Thickness: .065"
Max. Coil Weight: 40,000 Lbs.
Max. Coil Width: 60"
Min. Coil Width: 12"
Coil ID: 19" - 24-1/2"
Max. Coil OD: 60"
Line Direction: Right to Left
Line Speed: 10 - 160 FPM
Sheet Length: 18" - 144"

Consisting Of:

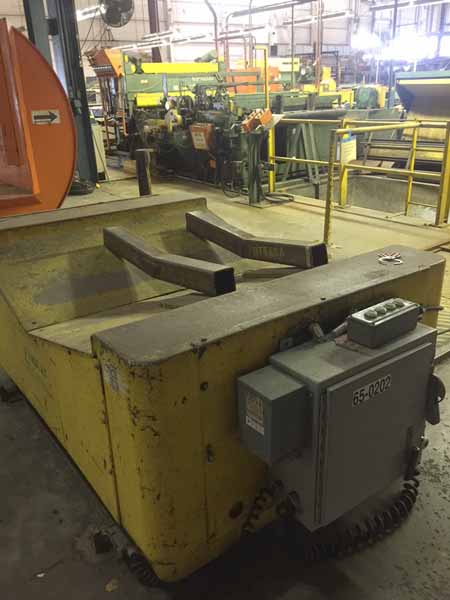

ROWE Model #BGU-40 Coil Car
Floor Mounted
Hydraulic Lift
15" Max. Lift

Coil Reel:
Single Mandrel Type
Powered Expansion
Motorized
Hold Down w/Powered Snubber

Threading Table
Threading Table

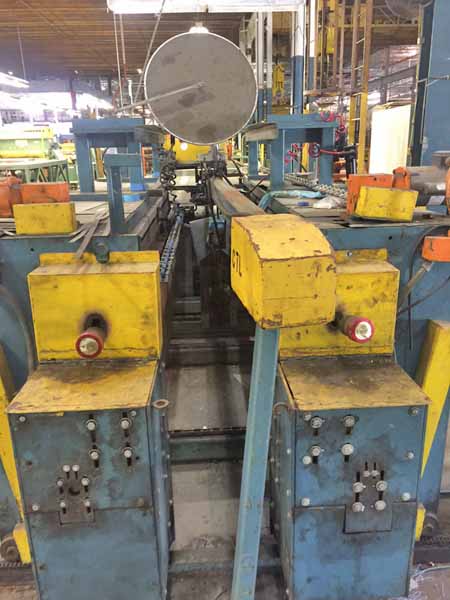

5-Roll Straightener:
4-1/2" Dia. Rolls
Pneumatic Coil Breaker
Air Operated Exit Pinch Roll
Powered Entry Rolls
Powered Exit Rolls
.093" Thickness

HERR VOSS Model #RH84/1.156-19/134H1 Leveler:
S/N 13375
Thickness Range: .016" - .060"
Max. Width: 72"
Hump Table

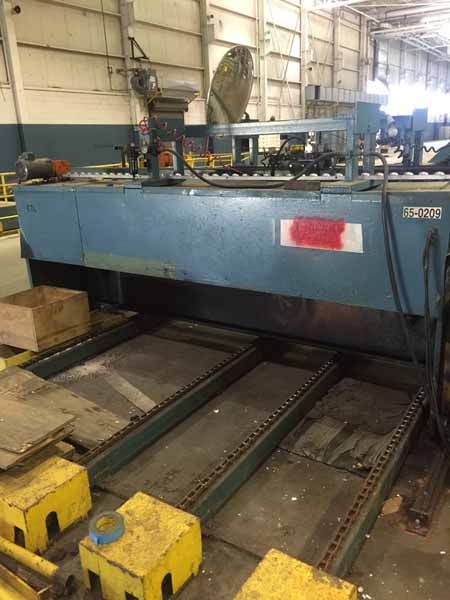

ROWE Model #HS-SHR-60 High Speed Hydraulic Shear:
S/N: RO31552 Age: 2002
Max. Width: 60"
Max. Thickness: .065"

Stacker Rotary Drop:
(2) 1/2 HP Motors (Drop)
(2) 1/4 HP Gear Motors (Width Adjustment)
Max. Capacity: 60" W x 12' L
Min. Capacity: 12" W x 36" L (Min. Width)
24" W x 18" L (Min. Length)

Stack Conveyor:
2 HP - 1800 RPM
4 Runs
