5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR   Our stock number: 51169

5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR

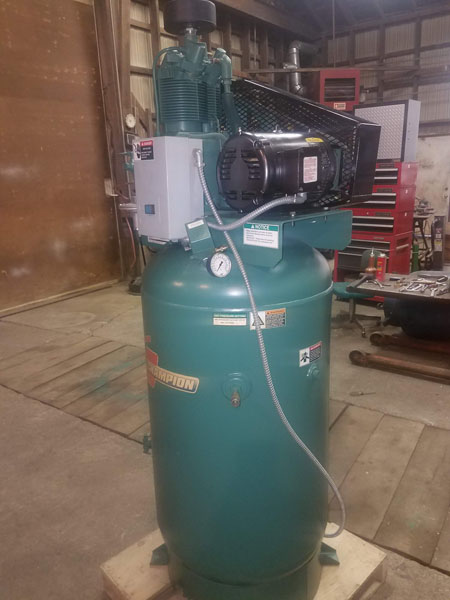

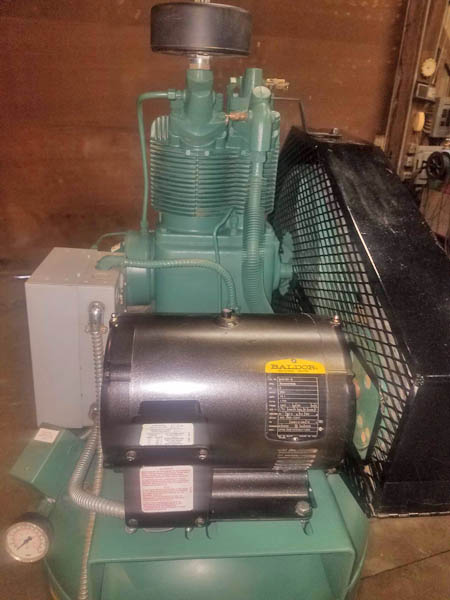

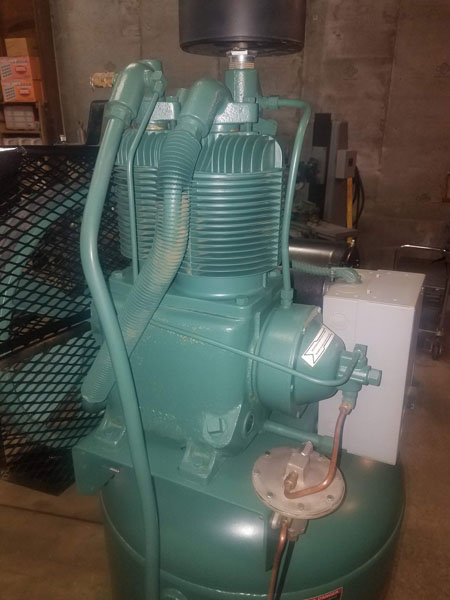

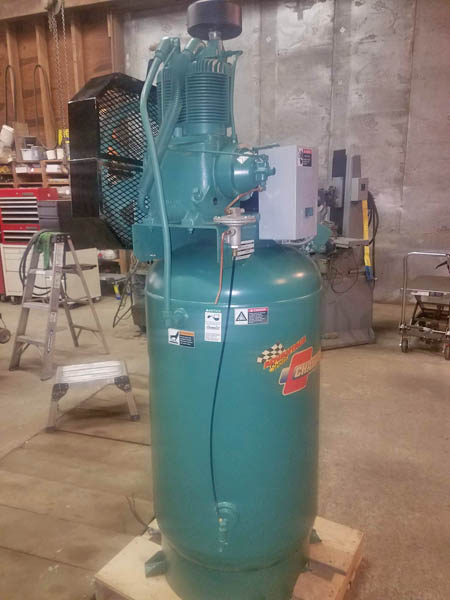

Click on picture below for larger version
5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR5 HP CHAMPION MODEL VR5-8 VERTICAL TANK MOUNTED PISTON TYPE AIR COMPRESSOR

AGE: N/A
MODEL: VR5-8

SPECIFICATIONS:

HP: 5
Variants for STD: CASRSA148
Pump Model No.: R-15B
Tank Capacity: 80 Gallons
Speed: 734 RPM
Delivery at 175 PSI Rating: 17.3 CFM
Electrics: 220/440/3/60

EQUIPPED WITH: Heavy Duty Two Stage Splash Lubricated Air

Compressor Pumps
Multi-Finned Cylinders
Integral Cylinder Head
Intercoolers for Cooling Between Stages
Reliable High Flow Disc Valves
Oversized Main Bearings
Balanced Crankshaft
Oil Level Site Glass
Centrifugal Unloader for Loadless Starting
0 - 300 PSIG Air Pressure Gauge
Bucket High Drain Valve
OSHA Approved Belt Guard
ASME Code Air Receiver, Pressure Release Valve,

Service Valve, Drain Valve & Pressure Gauge
Oversize Inlet Filter - Silencers
Mounted Magnetic Starter
Mounted Magnetic Starter

Vibration Isolator Pads
Automatic Tank Drain
Low Oil Level Monitor

NOTE: Current Replacement Cost is $2789.00

Overall Dimensions: 33" L x 24" W x 77" High
Weight: 565 Lbs. Approx.
