#1316-J BRYANT Hole & Face Internal Grinder, 16" Swing, 7-1/2 HP Wheel   Our stock number: 51145

#1316-J BRYANT Hole & Face Internal Grinder, 16 Swing, 7-1/2 HP Wheel

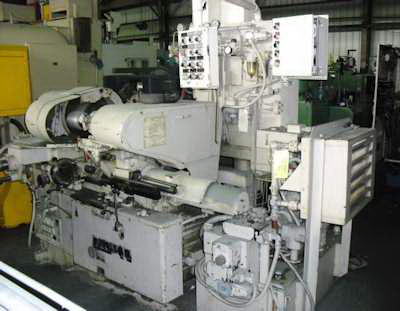

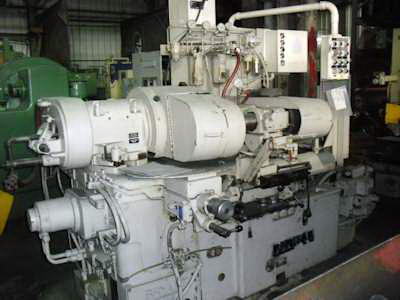

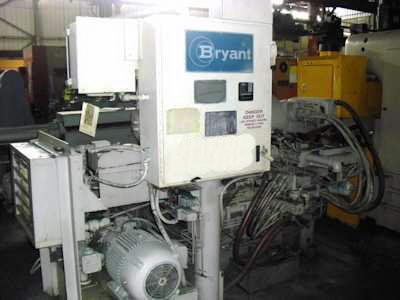

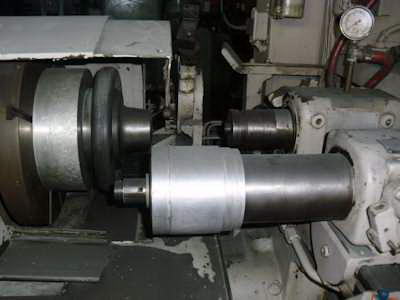

Click on picture below for larger version
#1316-J BRYANT Hole & Face Internal Grinder, 16 Swing, 7-1/2 HP Wheel#1316-J BRYANT Hole & Face Internal Grinder, 16 Swing, 7-1/2 HP Wheel#1316-J BRYANT Hole & Face Internal Grinder, 16 Swing, 7-1/2 HP Wheel

MODEL NUMBER: 1316-J

SPECIFICATIONS:

Swing, Total: 16"

Plain Spindle: 9"
Cam Lock Spindle: 8"

Wheelslide Stroke, Total: 20"

Travel of Work Table, Including Feed, Max.: 9-3/4"

Workhead Adj. For Grinding Included Angles: Up To 90 Deg.

Work Spindle: 100 to 800 RPM

Oil Reservoir Capacity: 30 Gallon
Coolant Tank Capacity: 60 Gallon

EQUIPPED WITH:

30,000 RPM Grinding Spindle
Facing Spindle
Dresser
Hardinge Speed Chuck
Digital RPM Readout
Collet Chuck
Fan Cooled Hydraulic Unit
220/440/60/3 AC Motor With 110 Volt Controls
Full Enclosed Fan-Cooled Type Motors

MOTOR DATA: 7-1/2 HP Wheel Drive, 3600 RPM
3 HP Oil Pump, 375 to 1350 RPM
1/2 HP Coolant Pump With Tank & Guards

OVERALL DIMENSIONS: 90" x 75-1/2" (With Coolant & Oil Tanks)
WEIGHT: 7,300 Lbs.
CONDITION: Good
