CRITERION "AUTO-PIERCE" HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEM   Our stock number: 51127

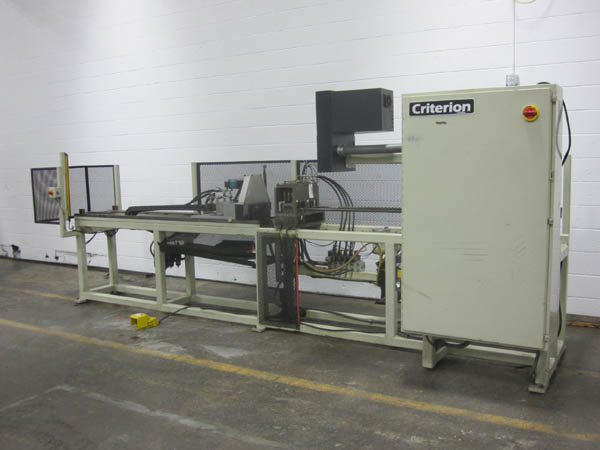

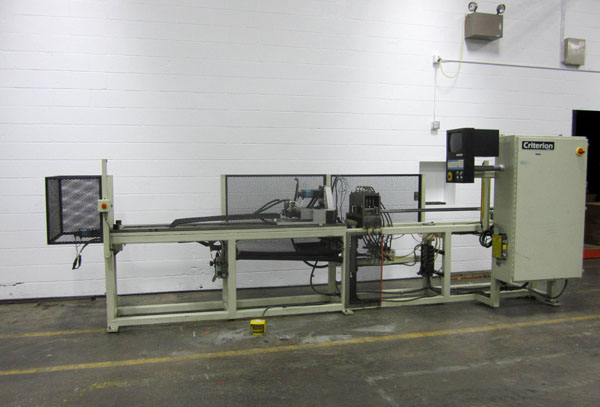

CRITERION AUTO-PIERCE HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEM

Click on picture below for larger version
CRITERION AUTO-PIERCE HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEMCRITERION AUTO-PIERCE HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEMCRITERION AUTO-PIERCE HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEMCRITERION AUTO-PIERCE HYD. OVER MANDREL SEMI-AUTOMATIC TUBE PIERCING SYSTEM

AGE: 1990'S
MODEL: AUTO-PIERCE

SPECIFICATIONS:

Capabilities: High Speed Semi-Automatic Piercing Over Mandrel,

Using Gang Type Punches in Die Set to Produce

Dimple Free Holes. (2) Tubes at a Time, with

Manual Load Station Equipped with Light Curtain

Safety System.
Max. Tube Length Over Mandrel: 72"

Current Die Set Specifications:
Tube Diameter: 3/4" to 1-1/2"
Min. Distance on One Tube End without Holes: 1-7/8"
Wall Thickness: .030" - .120"

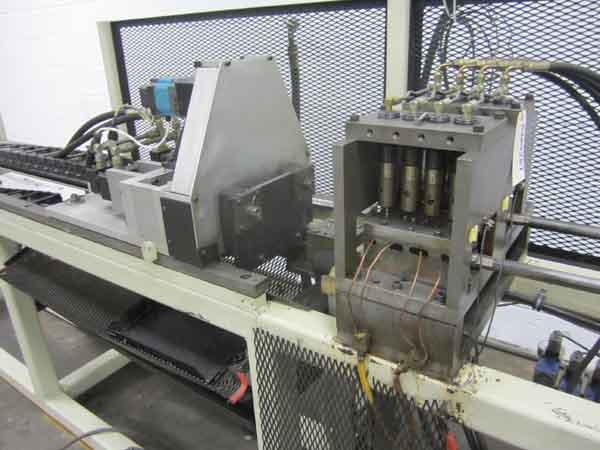

Punch Configuration: (2) Dies with (4) Punches Inline
Cycle Time per Pierce Unit Activation & 1 Index: 1.1 Sec.

(Per Factory)

EQUIPPED WITH: Servo Electric Tube Locating & Indexing System

for Accurate & Consistent Hole Spacing - Y-

Axis Linear, B-Axis Rotational
ID Type Hydraulically Actuated Collet
PC Based Operator Controls for Programming Both

Axially & Radially
Stand Alone Hydraulic Power Unit

Motor Data: 230/460/3/60
