New and Used Metalworking Machinery


25,000 Lb LITTELL C-250 Coil Cradle & Straightener, 30" Width, 72" OD, .156" Thk   Our stock number: 50992

25,000 Lb LITTELL C-250 Coil Cradle & Straightener, 30 Width, 72 OD, .156 Thk

Click on picture below for larger version

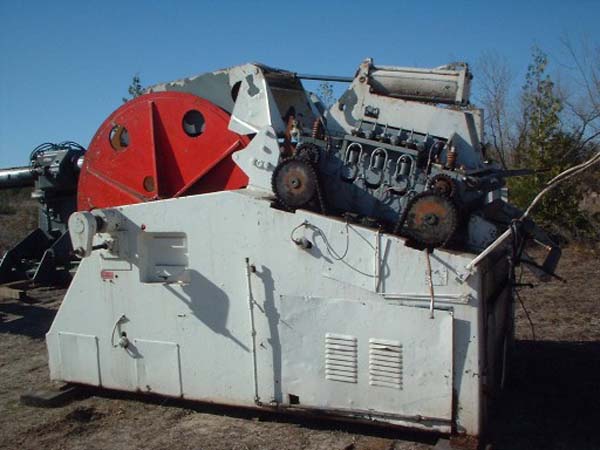

25,000 Lb LITTELL C-250 Coil Cradle & Straightener, 30 Width, 72 OD, .156 Thk

AGE: N/A

SPECIFICATIONS:

Cradle Capacity: 25,000 Lbs. Max.
Coil Width: 30" Max.
Coil OD: 72" Max.
Coil Capacity: 0.156"
Electrics: 3 Phase, 60 Cycle

EQUIPPED WITH: 3 Over 4 Straightener
Pneumatic Peeler
3" Dia. Pinch Rolls
3" Dia. Straightener Rolls
Pneumatic Coil Kick-Out
Coil Peeler / Feeder
Double Pinch Feed Rolls

Overall Dimensions: 12' LR x 8' FB x 9' High
Weight: 18,000 Lbs. Approx.
