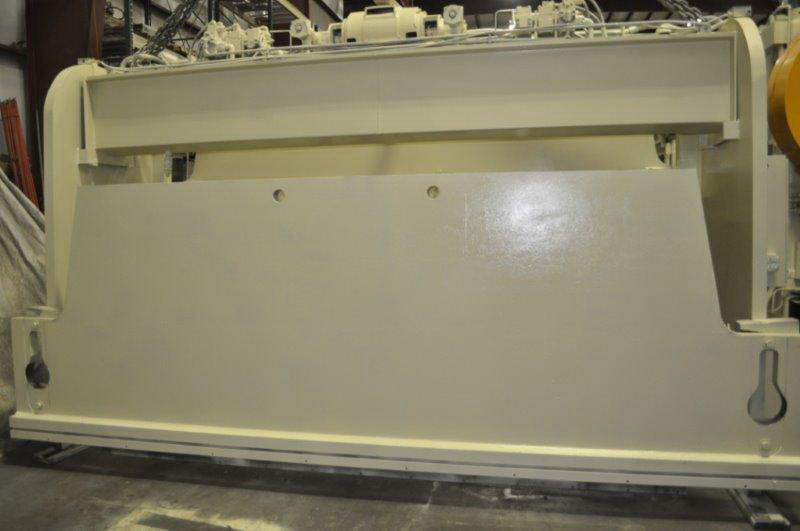

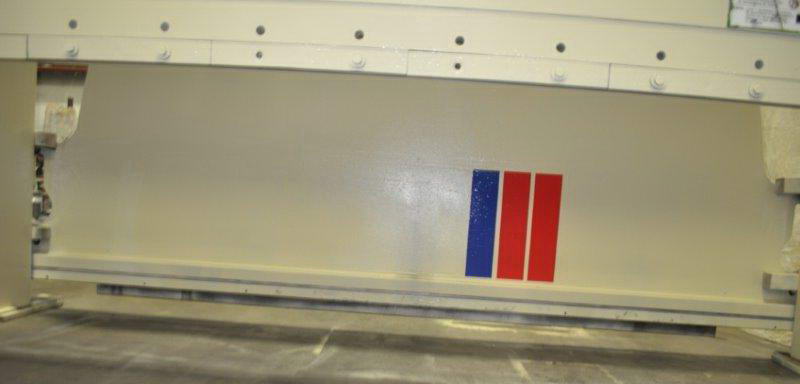

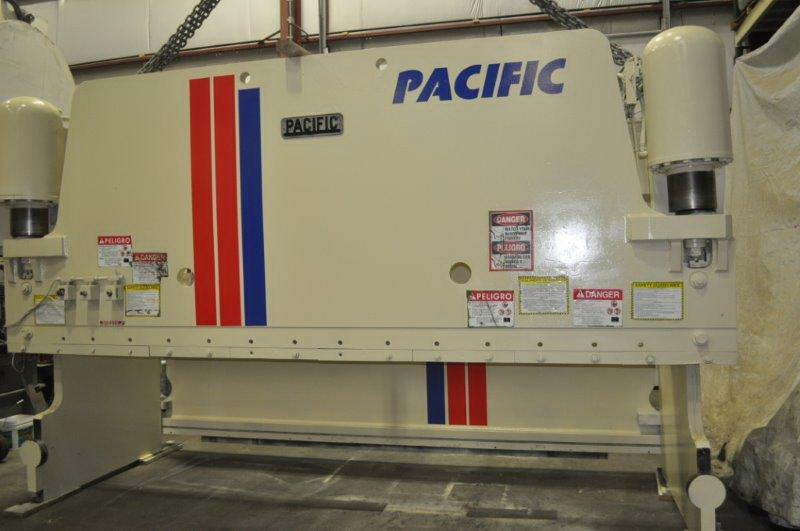

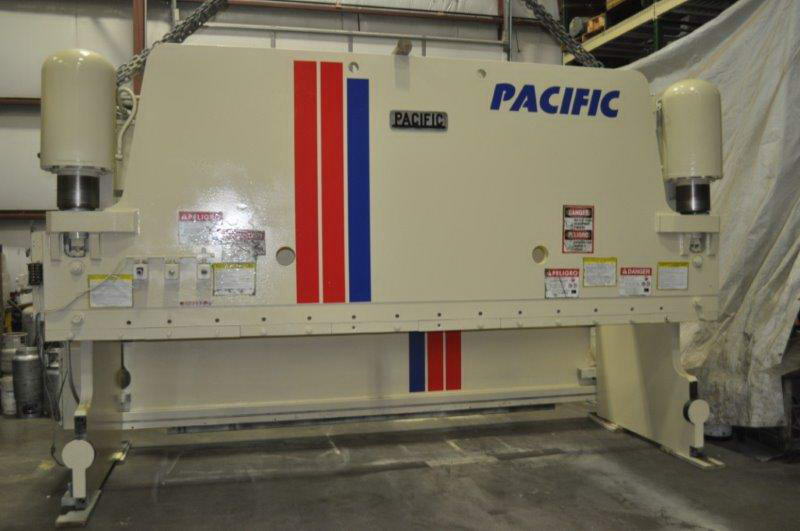

300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6" Bet Hsgs, 30 HP   Our stock number: 50929

300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP

Click on picture below for larger version
300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP
300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP300 Ton PACIFIC 300-16 Hydraulic Press Brake, 14'6 Bet Hsgs, 30 HP

MODEL NUMBER: 300-16

SPECIFICATIONS:

Capacity: 300 Tons
Length of Bed & Ram: 192"
Distance Between Housings: 14'6"
Ram Stroke: 12"
Throat: 9"
Open Height: 20"
Bed Width: 8"

EQUIPPED WITH:

Press Depth Control

NOTE: Requires A Slot In Floor

MOTOR DATA: 30 HP, 208/60/3

OVERALL DIMENSIONS: 16' W x 68" D x 10'2" High
WEIGHT: 47,500 Lbs.
