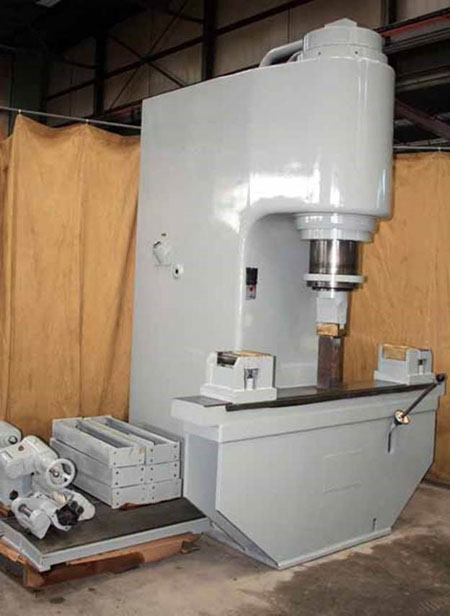

Max. Straightening Pressure: 175 Tons
Straightening Bed: 79" L x 10.75" W
Bed Width Extensions: 279"
Length of Pressure Bearing Bed: 72"
Ram Speed Up: 375 IPM
Ram Speed Down: 90 IPM
Total Stroke: 10"
Controllable Straightening Stroke, Adj.: 7/8"
Daylight to Table: 31.5" Max., 13-3/4" Min.
Depth of Throat: 13.75"
Front of Table to Face of Machine: 19.75"
Height of Table: 35"
WR3 Straightening Attachment, Height of Centers: 9.5"
Max. Swing: 14-1/8"
Distance Between Centers: 249"
Max. Weight Workpiece: 1,770 Lbs.
Overall Height: 120"
EQUIPPED WITH: Complete Electrical Controls
Stroke Control Allowing for Fine Adjustment of
the Lowest Position of the Ram, Within the
Last 20mm of the Set Ram Stroke
Limitation of Return Stroke for Presetting the
Shortest Stroke to Suit the Job Thereby
Reducing Operating Time
WR3 Shaft Straightening Attachment Complete
w/Center Supports w/Right Hand Handwheel for
Roller Type Work Rests for Uncentered
Turret Stop for Minimizing Stroke
Swinging Measuring Bracket Mounted to Frame
Complete w/Dual Indicator
(4) 40" Table Extensions w/Supports
(2) 20" Table Extensions w/End Stops & Supports
Motor Data: 25 HP, 3/60, AC Hydraulic Pump Drive
Weight: 16,000 Lbs. Approx.
