12' x 1/2" WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP   Our stock number: 50863

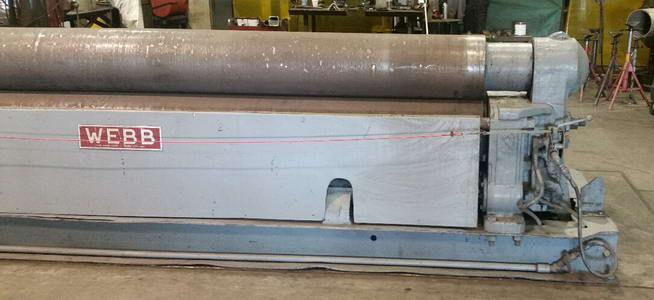

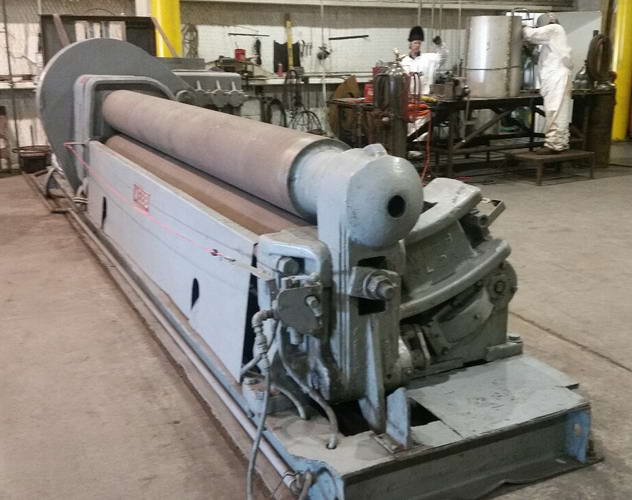

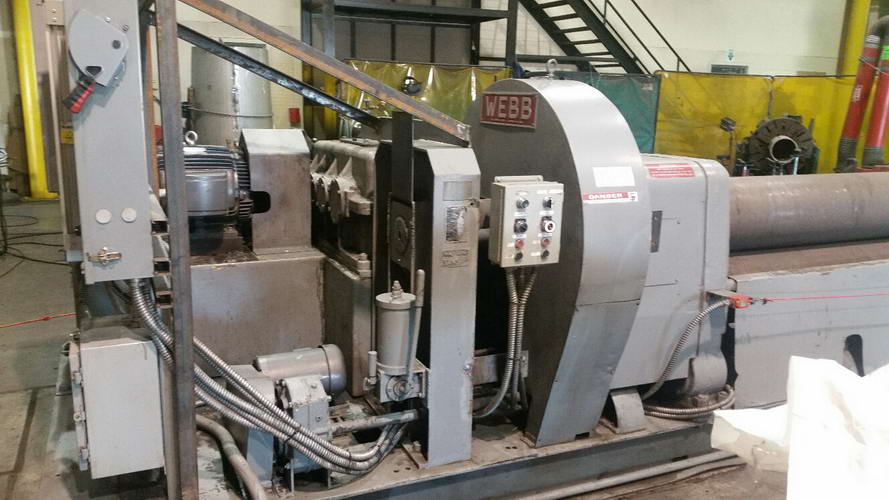

12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP

Click on picture below for larger version
12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP
12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP12' x 1/2 WEBB 9L Initial Pinch Plate Roll, Air Drop End, 25 HP

MODEL NUMBER: 9L

SPECIFICATIONS:

Capacity, Mild Steel: 1/2"

Working Length Of Rolls: 12'2"
Diameter Of Rolls: 13"

Rolling Speed: 7 to 14 FPM

EQUIPPED WITH:

3-Roll Drive
Air Drop End
Power Front & Rear Roll Adjustment
Updated Electrical Controls
Rear Roll Adjusting Motor

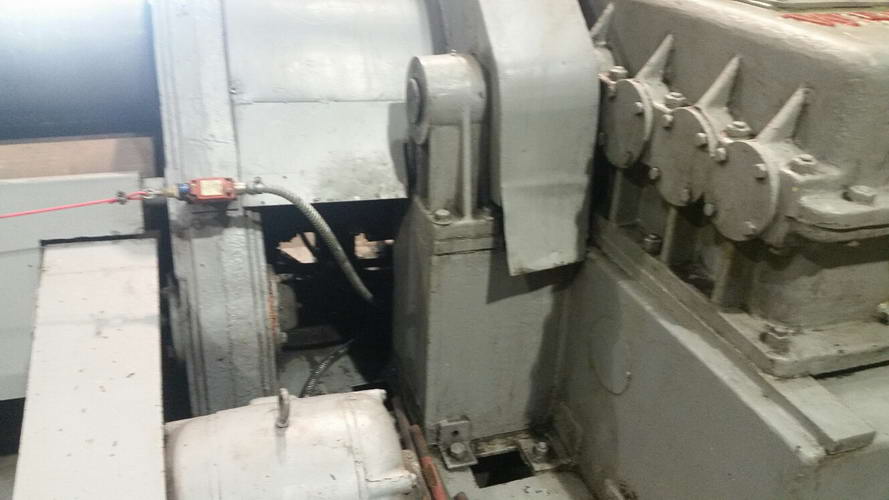

Gear Reduction Units
Automatic Balance Bar & Deck Plates

MOTOR DATA: 25 HP, 230/460/60/3
Westinghouse Max Pac Variable Frequency Drive

3 HP Lower Pinch Front Rolls Adjusting Motor

OVERALL DIMENSIONS: 78" x 267"
WEIGHT: 32,000 Lbs.
CONDITION: Good
