#8 BURRMASTER Brush Deburring Machine, 2-1/2" OD x 30" Length Max Tube, (2) 5 HP   Our stock number: 50803

#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP

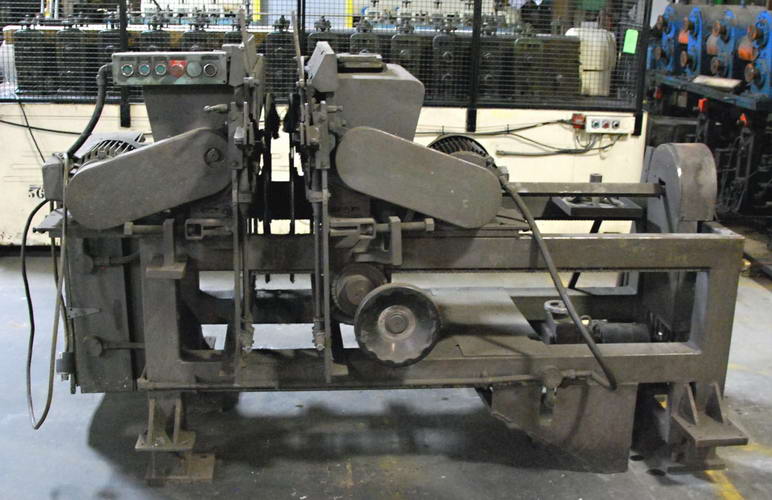

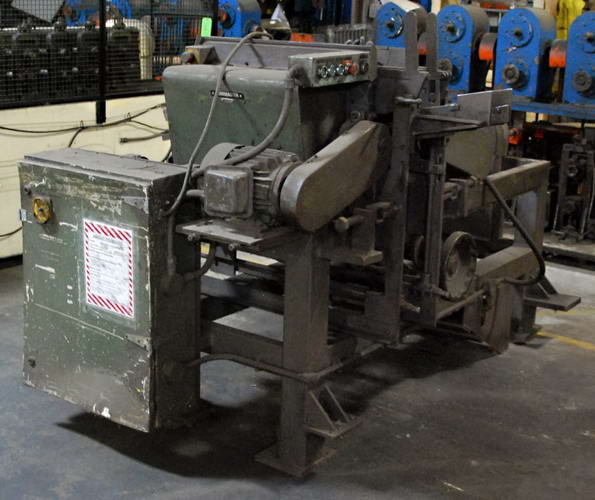

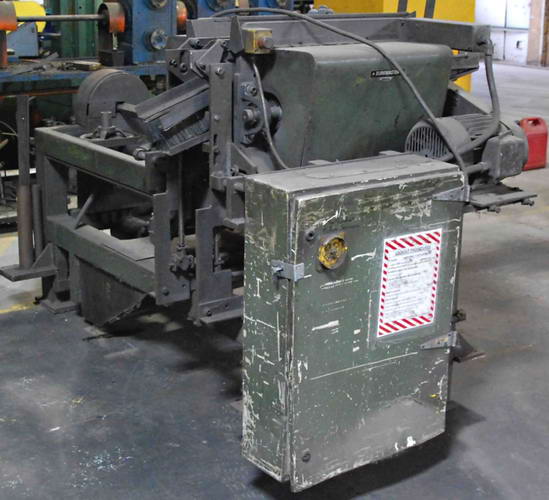

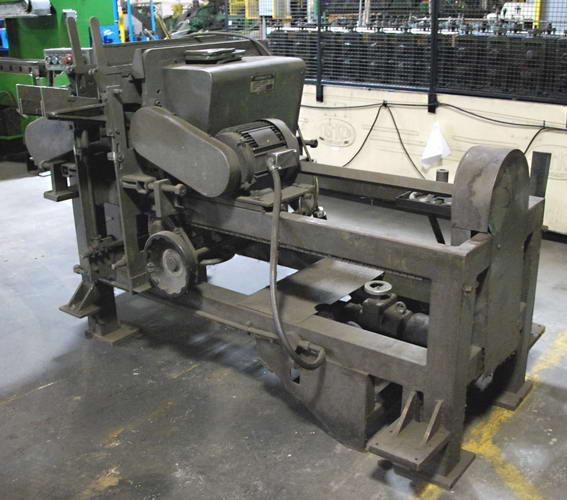

Click on picture below for larger version
#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP
#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP#8 BURRMASTER Brush Deburring Machine, 2-1/2 OD x 30 Length Max Tube, (2) 5 HP

MODEL NUMBER: 8

SPECIFICATIONS:

Star Wheel Type

Tube Diameter: 3/8" to 2-1/2"
Tube Length: 3" to 30"
Bar Diameter: 3/8" to 2.4"
Profile Section: 3/8" x 3/8" to 2" x 2"

Output, Max.: 3,500 PPH

Brush Length: 18"
Brush O.D.: 10" or 12"

EQUIPPED WITH:

Electrical Panel
Push-Buttons

MOTOR DATA: (2) 5 HP, 480/60/3

OVERALL DIMENSIONS: 7' x 5' x 5'
WEIGHT: 1,800 Lbs.
