New and Used Metalworking Machinery


KLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7" x 19.7" Max Punch, 1/8" Thick   Our stock number: 50788

KLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7 x 19.7 Max Punch, 1/8 Thick

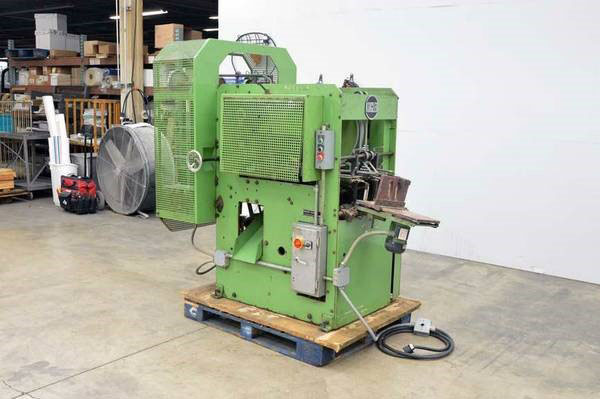

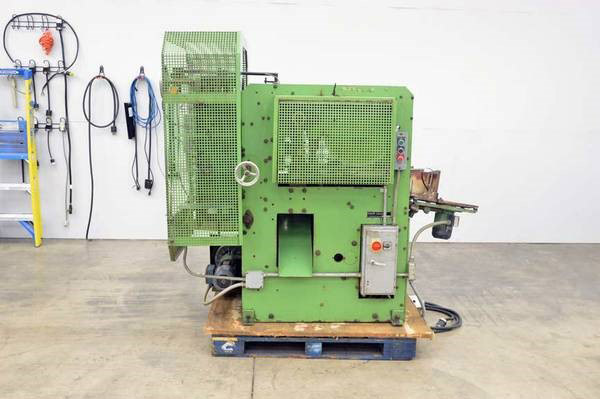

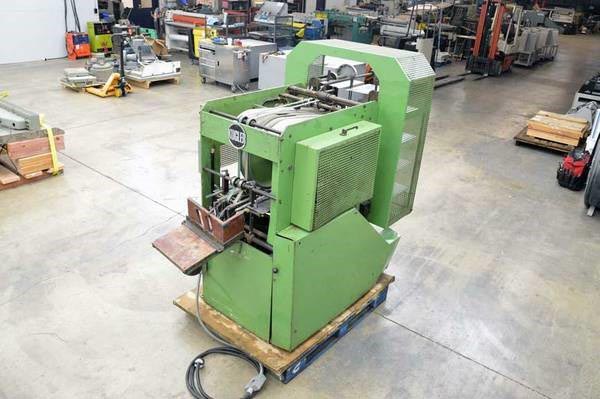

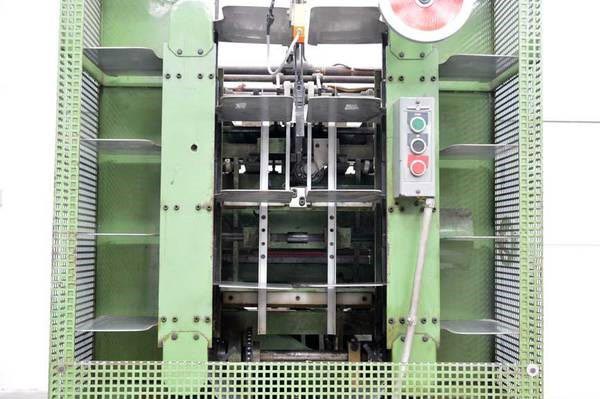

Click on picture below for larger version
KLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7 x 19.7 Max Punch, 1/8 ThickKLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7 x 19.7 Max Punch, 1/8 ThickKLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7 x 19.7 Max Punch, 1/8 ThickKLUGER Automatic Punch, 100K Sheets/Hr Max, 19.7 x 19.7 Max Punch, 1/8 Thick

AGE: N/A

SPECIFICATIONS:

Can Punch Up to 100,000 Sheets Per Hour

Punch Sizes: 19.7" x 19.7" Max. (500mm x 500mm)
4.75"x 4.75" Min. (120mm x 105mm)
Punching Thickness: 1/8" Max. (3mm)
Speed: 60 - 100 Cycles/Min.

Motor Data: 1.8 Kw, 220/3/60

Machine can be used for ring binder inserts, calender pages, tab

& register. Cuts sheets made of cardboard & plastic, paper for

wire bound products (spiral & double wire binding), special

punching & more.

Materials are taken from the Top of the Stack for Best

Results on a Wide Variety of Materials
Trouble Free Punching of Mixed Materials
The Turn Over Drum has the Ability to Punch Pages in

Original Sequence
The Sheets are Aligned Precisely just Prior to Punching for

Highest Accuracy
Format & Die Changes can be Done Quickly

Overall Dimensions: 74.8" L x 43.3" W x 55.1" High
Weight: 3,085 Lbs. Approx.

At Location......................................................
**PHOTO AVAILABLE
