New and Used Metalworking Machinery

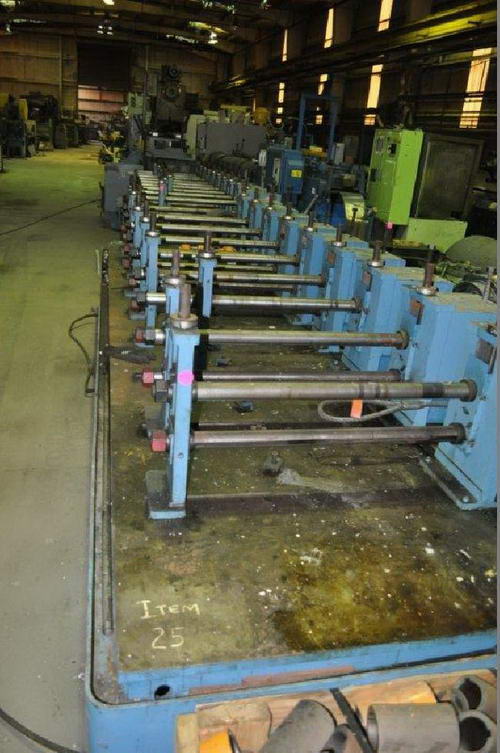

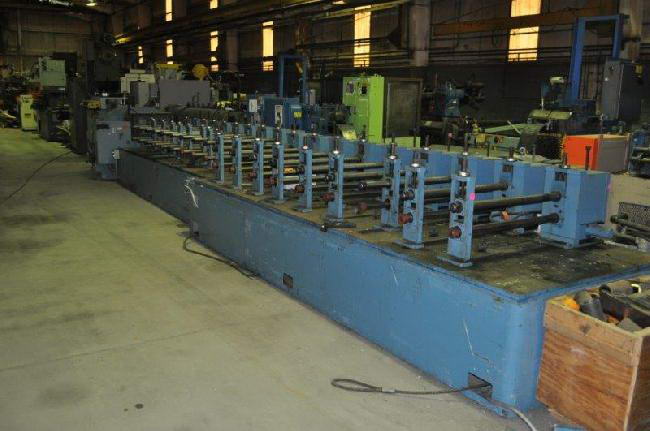

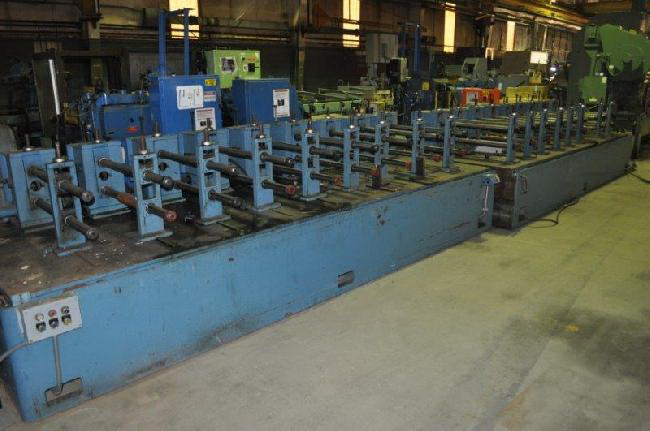

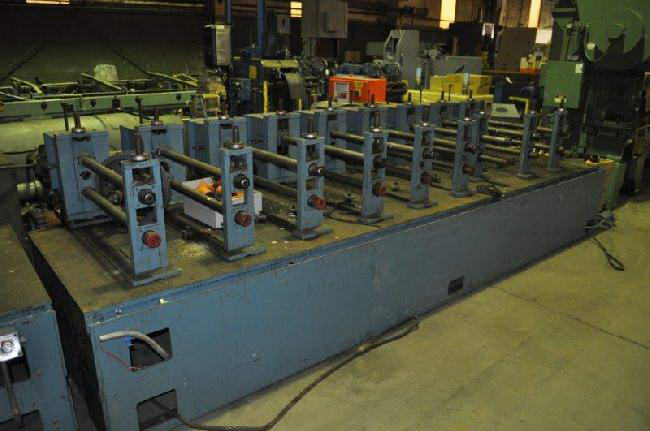

18 STND CMC Roll Former, 2" Spdls, 32" RS, 18" Horiz, 6" to 9.5" Vert, 40 HP   Our stock number: 50779

18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP

Click on picture below for larger version
18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP
18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP18 STND CMC Roll Former, 2 Spdls, 32 RS, 18 Horiz, 6 to 9.5 Vert, 40 HP

SPECIFICATIONS:

Number of Stands: 18
Roll Space: 32"
Shaft Diameter: 2"
Horizontal Centers: 18"
Vertical Adjustment: 3-1/2"
Vertical Centers: 6" - 9-1/2"
Base to Center of Lower Spindles: 7-1/4"

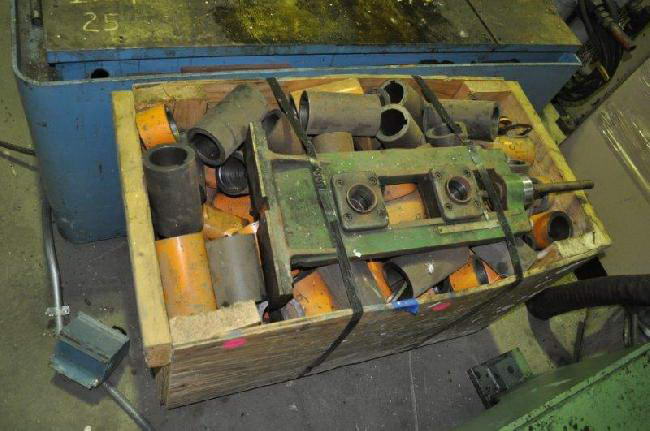

EQUIPPED WITH: (2) 9 Stand Bases

Motor Data: 40 HP, 230/460/3/60 - 1185 RPM

Overall Dimensions: 30' LR x 65" FB x 52" High
Condition: GOOD

At Location...........................................
