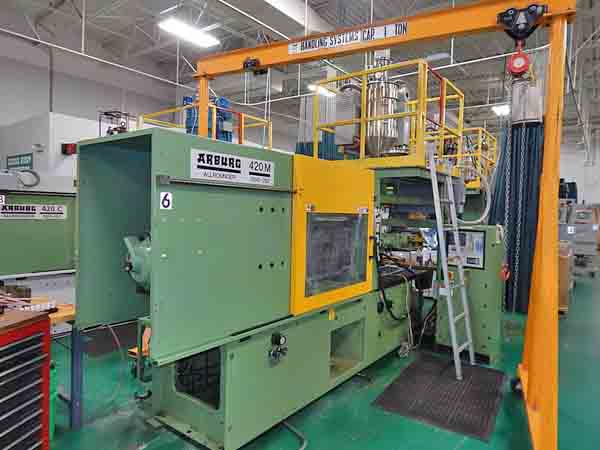

112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4" Platen, 6.8" Ejector Str   Our stock number: 50760

112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str

Click on picture below for larger version
112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str
112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str112 Ton ARBURG 2-Shot Injection Molding Machine, 22.4 Platen, 6.8 Ejector Str

AGE: 1996

SPECIFICATIONS:

Video Available: http://files.bassmachinery.com/50760.wmv

Clamp: 112 Tons
Mold Open Stroke: 29.5" (750mm)
Max. Plate Distance: 29.5" (750mm)
Min. Plate Distance: 9.8" (250mm)
Clearance Between Tie Bars: 16.5" (420mm) (H & V)
Ejector Stroke: 6.8" (175mm)
Platen Size: 22.4" (570mm) (H & V)
Max. Weight Moving Mold Half: 1322 Lbs. (600 KG)
Injection Unit A: 1.3" (35mm)
Max. Injection Press: 1750 Bar
Theor. Stroke Volume: 144cc
Shot Weight (Grams of PS): 121g
Injection Rate: 190g/s
Injection Unit B: 0.59" (15mm)
Hours: 32,250
Electrics: 230/3/60

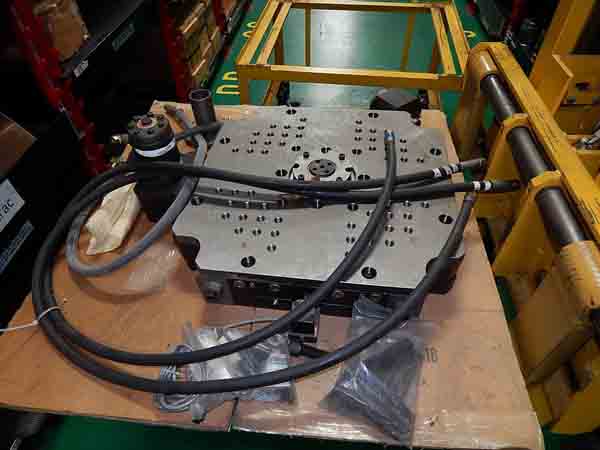

EQUIPPED WITH: 2 Shot w/Rotary Platen & Core Pull

Hardware & Software for 2 Shot Molding

Condition: VERY GOOD, Can be Seen Under Power. However,

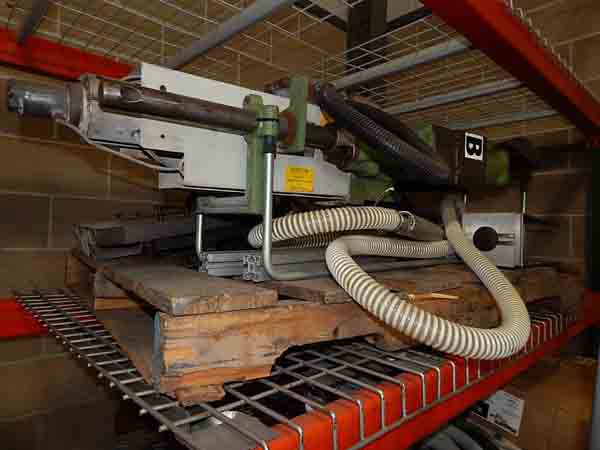

Injection Unit B & the Rotary Plate are NOT

Installed.

At Location.............................................
**PHOTO AVAILABLE
