14" SCOTCHMAN MODEL CPO350NF NON-FERROUS COLD SAW, 1994,   Our stock number: 50754

14 SCOTCHMAN MODEL CPO350NF NON-FERROUS COLD SAW, 1994,

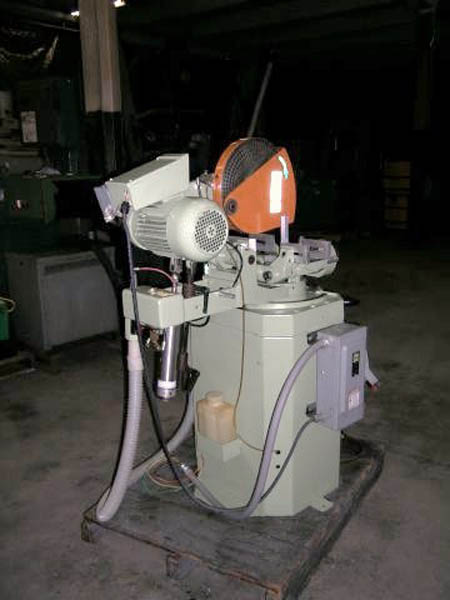

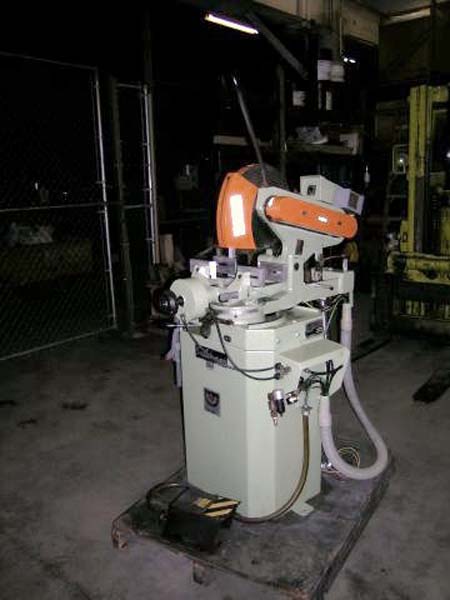

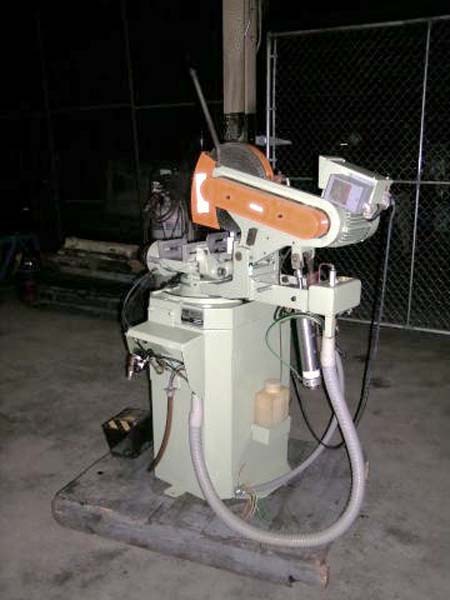

Click on picture below for larger version
14 SCOTCHMAN MODEL CPO350NF NON-FERROUS COLD SAW, 1994,14 SCOTCHMAN MODEL CPO350NF NON-FERROUS COLD SAW, 1994,14 SCOTCHMAN MODEL CPO350NF NON-FERROUS COLD SAW, 1994,

AGE: 1994

SPECIFICATIONS:

Max. Blade Diameter: 14" (350mm)

TUBING:
Round: 4-1/2" @ 90 Deg., 4-1/4" @ 45 Deg
Square: 4-1/4" x 4-1/4" @ 90 Deg.

4" x 4" @ 45 Deg.
Rectangle: 5-1/2" x 4" @ 90 Deg.

SOLID:
Round: 3" @ 90 Deg., 2-1/2" @ 45 Deg.
Square: 3" x 3" @ 90 Deg., 2-1/2" x 2-1/2" @ 45 Deg

Cutting Speed: 3000 RPM
Arbor Bore: 1-9/16"
Height from Floor to Vise: 37-7/16"

Motor Data: 5 HP, 460/3/60

Overall Dimensions: 21-7/8" W x 43-1/2" D x 56-1/4" High
Weight: 625 Lbs. Approx.

At Location....................................................
**PHOTO AVAILABLE
