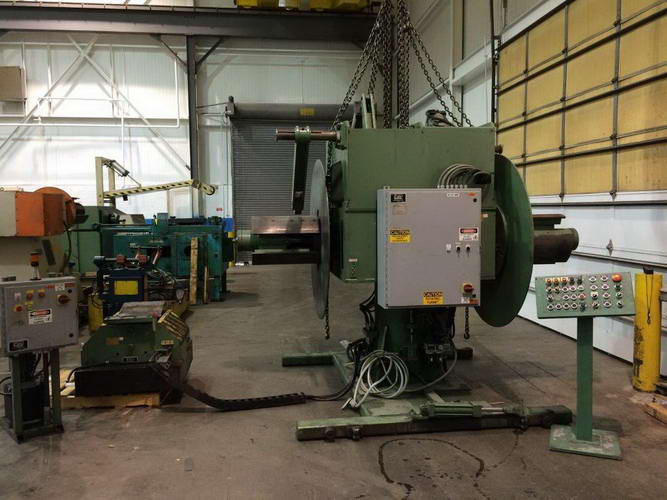

13,000 Lb COLT CHDRD-1300-20 Dbl End Motorized Coil Reel, 18" to 22" ID, 60" OD   Our stock number: 50694

13,000 Lb COLT CHDRD-1300-20 Dbl End Motorized Coil Reel, 18 to 22 ID, 60 OD

Click on picture below for larger version
13,000 Lb COLT CHDRD-1300-20 Dbl End Motorized Coil Reel, 18 to 22 ID, 60 OD13,000 Lb COLT CHDRD-1300-20 Dbl End Motorized Coil Reel, 18 to 22 ID, 60 OD13,000 Lb COLT CHDRD-1300-20 Dbl End Motorized Coil Reel, 18 to 22 ID, 60 OD

MODEL NUMBER: CHDRD-1300-20

SPECIFICATIONS:

Coil Weight: 13,000 Lbs.
Coil Width: 20"
Expansion Range: 18" to 22" (To Be Confirmed)
Coil O.D.: 60"

EQUIPPED WITH

Three Leaf Mandrels
Full Set Of Coil Keeper Arms
Hydraulic Wedge-Type Expansion Of Mandrels Via Push-Button
Air Operated Coil Hold Down Arms With Neoprene End Wheels
Air Brakes Mounted On Main Spindles
Hydraulic Powered Arbor Rotation
Hydraulic Actuated Locking Pin
Mandrel Position Proximity Switches
Jog Forward & Reverse
Pendant For Jog Functions
Variable Speed Drive System
Free Standing Operator's Control Console
Auto / Run Cycle
Loop Control Arm
Emergency Stop

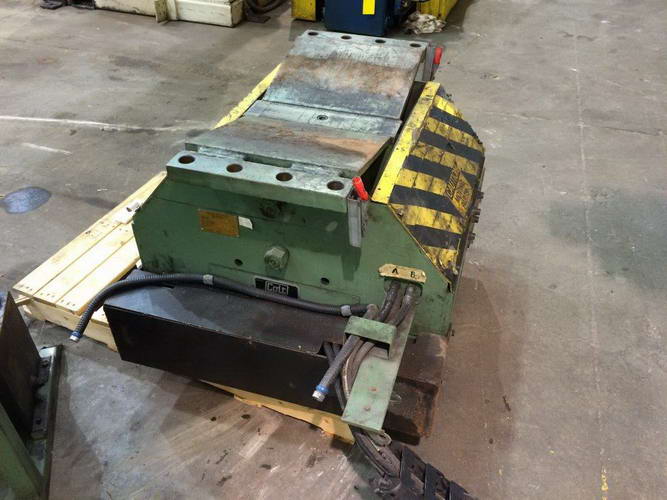

Model CKT-1300-20 Traveling Coil Car
Powered Lift & Travel
Narrow Coil Support Arms
