New and Used Metalworking Machinery

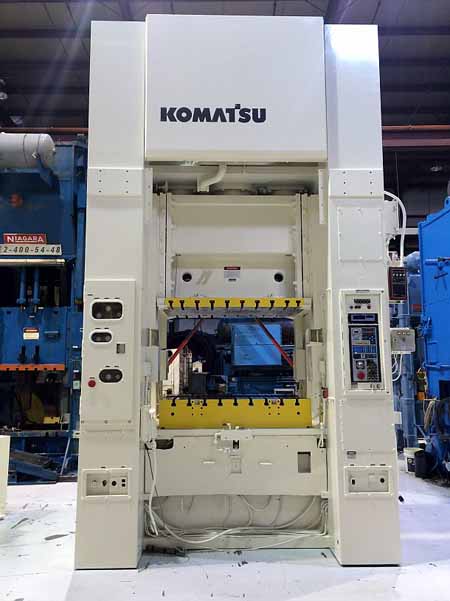

300 Ton KOMATSU MODEL E2M 300 S.S.D.C. PRESS, 1992,   Our stock number: 50554

300 Ton KOMATSU MODEL E2M 300 S.S.D.C. PRESS, 1992,

AGE: 1992

SPECIFICATIONS:

Capacity: 300 Tons
Bed Area: 59" x 47.7"
Slide Area: 49" x 43.3"
Stroke: 7.8"
Adjustment: 4.9"
Shut Height: 29.09" Over Bolster
Bolster: 11.02" Thick
Strokes Per Minute: 30 - 90
Windows: 27.56" Wide
Floor to Top of Bolster: 61" (Includes 7.8" Thick

Vibromounts)

EQUIPPED WITH: Floor Standing
Air Clutch & Brake
Air Counterbalance
Recirculating Lubrication System
Air Actuated Hydraulic Clutch & Brake Assembly
T-Slotted Ram & Bolster
Mini Safe Lite Curtains 4600 Series
Dual Ross Air Valve
Quick Die Change
Updated Press Controls
8 Point Gibbing

Motor Data: 60 HP Main Motor
Motor Data: 60 HP Main Motor

Weight: 75,000 Lbs.

At Location..................................................
**PHOTO AVAILABLE
