New and Used Metalworking Machinery

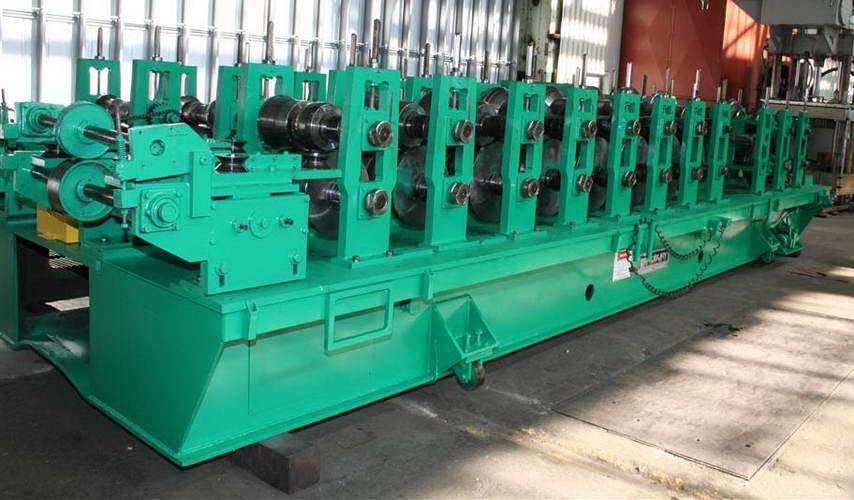

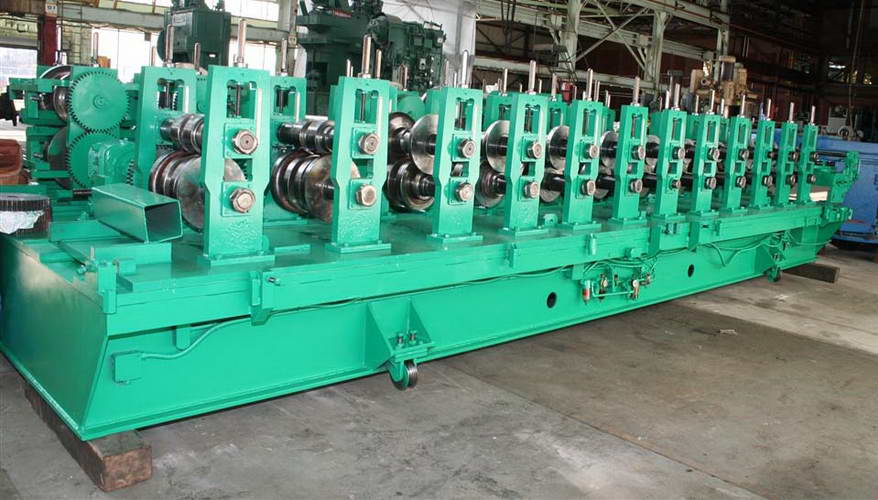

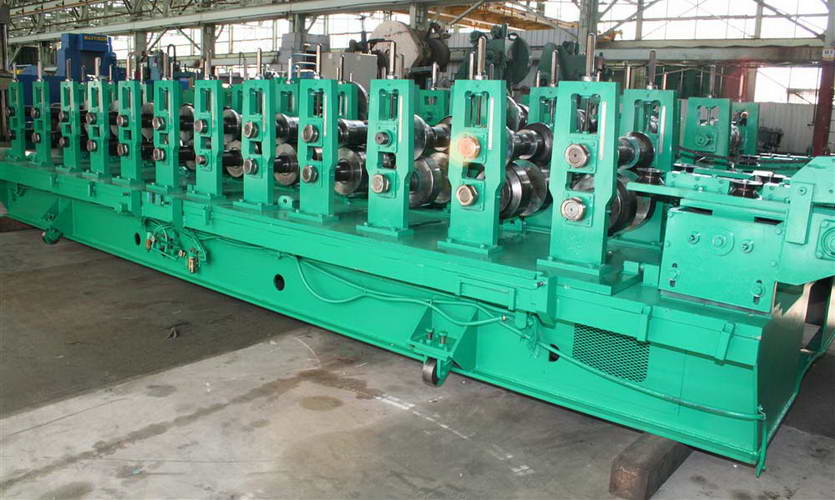

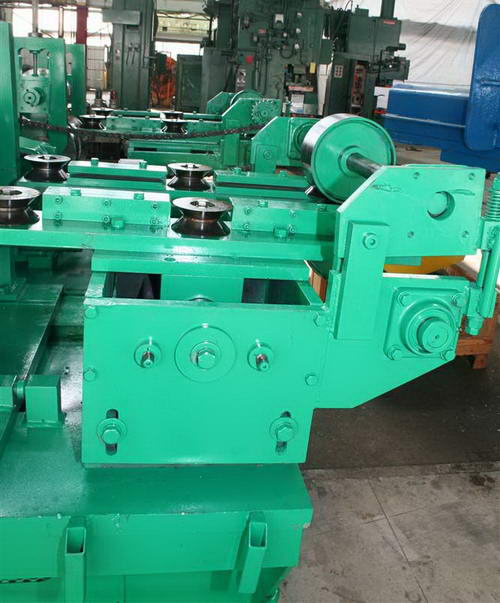

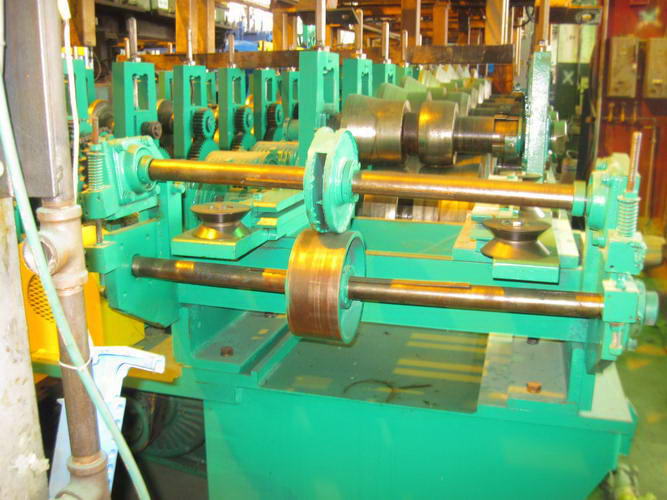

22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2" Spdl, 75 HP   Our stock number: 50536

22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP

Click on picture below for larger version
22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP
22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP22 STND BRADBURY Side-By-Side Cee / Zee Purlin Roll Former, 3-1/2 Spdl, 75 HP

YEAR: 1984

MODEL NUMBER: 425DW-22-12

SPECIFICATIONS:

Zee Purlin, 10 Stands: 6-1/2" - 8-1/2" - 11-1/2"
Cee Purlin, 12 Stands: 6-1/2" - 8-1/2" - 11-1/2"

Capacity: 17 to 11 Gauge

Spindle Diameter: 3-1/2"
Roll Space: 24"
Horizontal Centers: 24"
Vertical Centers: 6-1/4"

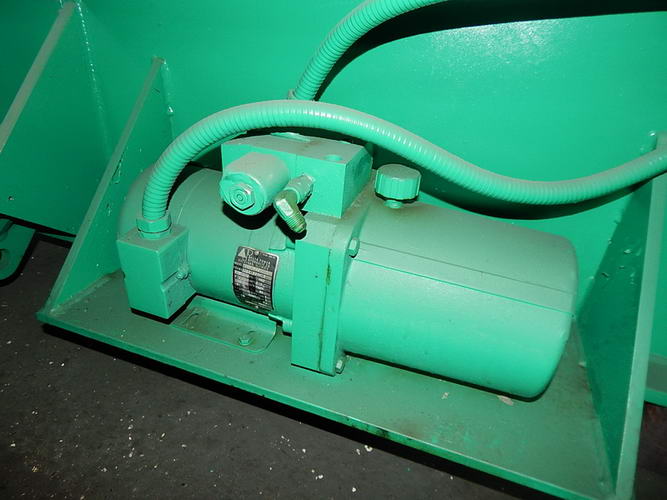

MOTOR DATA: 75 HP Variable Speed

CONDITION: Good

NOTE: Tooling prints are available.
