9 STND LOCKFORMER MODEL 9D DUPLEX TYPE ROLL FORMER   Our stock number: 50453

9 STND LOCKFORMER MODEL 9D DUPLEX TYPE ROLL FORMER

Click on picture below for larger version

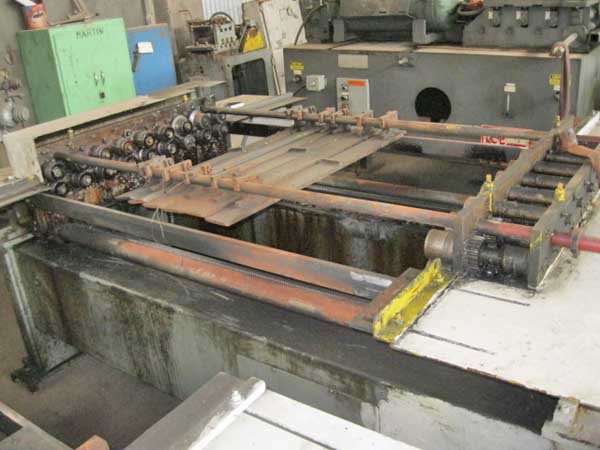

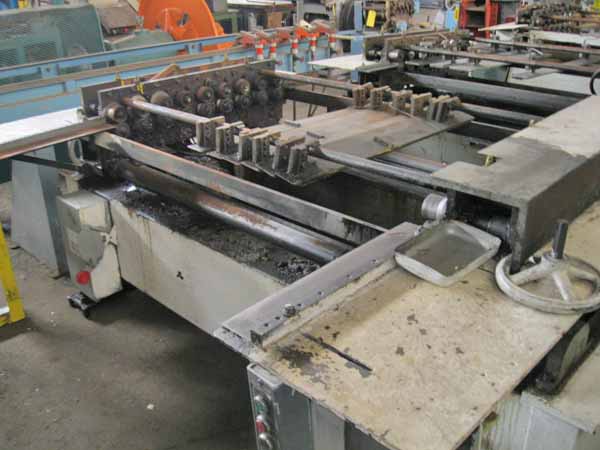

9 STND LOCKFORMER MODEL 9D DUPLEX TYPE ROLL FORMER

AGE: N/A

SPECIFICATIONS:

Number of Stands: 9
Shaft Diameter: 1-1/4"
Sheet Width: 9" - 48"
Horizontal Center Distance: 4"
Vertical Center Distance: 2-1/2"
Passline Height: 34"
Rolling Speed, Approx.: 100 FPM

EQUIPPED WITH: Push Button Control
Powered Width Adjustment

Motor Data: (2) 3 HP Drives, 3/60
3/4 HP, 3/60 - Traverse

Overall Dimensions: 68" x 90" x 44" High
Weight: 2,750 Lbs. Approx.

At Location.................................................
**PHOTO AVAILABLE
