New and Used Metalworking Machinery

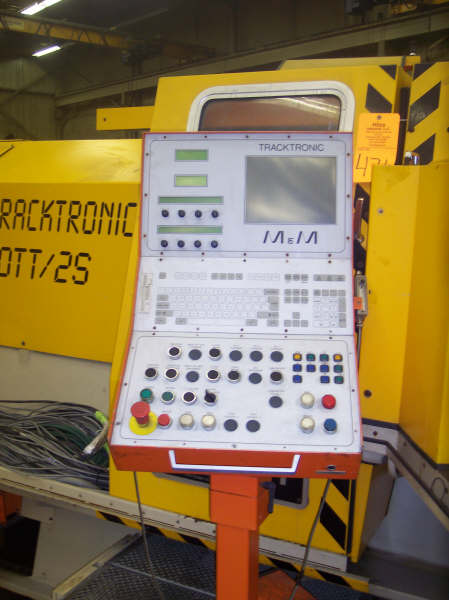

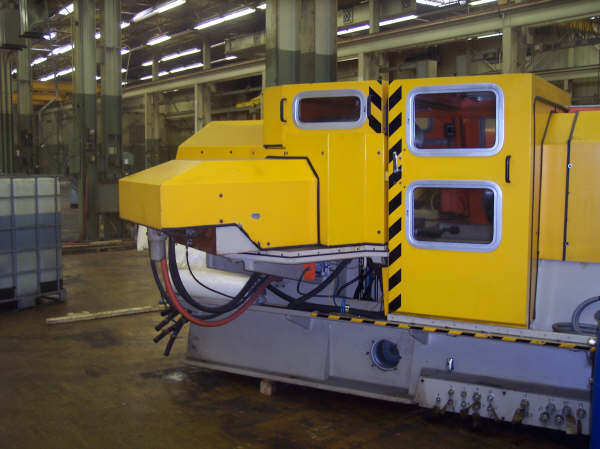

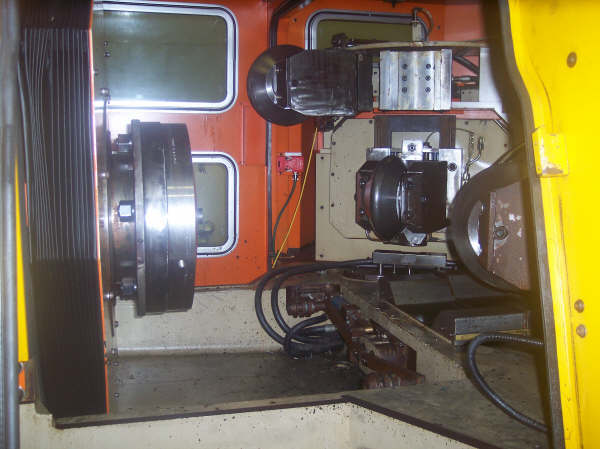

36" x 47" cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis   Our stock number: 50448

36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis

Click on picture below for larger version
36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis
36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis36 x 47 cc M & M HF450TT/25 CNC Spinning Lathe, 0 to 1000 RPM, 107 HP Z-Axis

AGE: 2000
MODEL NUMBER: HF450TT/25

SPECIFICATIONS:

Swing, Z-Axis: 33"
Center Distance, Y-Axis: 47"

Slide Travel, X-Axis: 19.70"
Slide Travel, Y-Axis: 10.83"
Slide Force, X and Y: 22,480 IBF

Tailstock Travel: 23.60"
Tailstock Clamping Force: 18,000 IBF

Ejector Travel: 17.72"

Spindle Speed: 0 to 1000 RPM

EQUIPPED WITH:

Electrical Controls For 440/60/3
Coolant System

MOTOR DATA: 107 HP Z-Axis

WEIGHT: 48,400 Lbs.
CONDITION: Excellent, Very Low Hours
