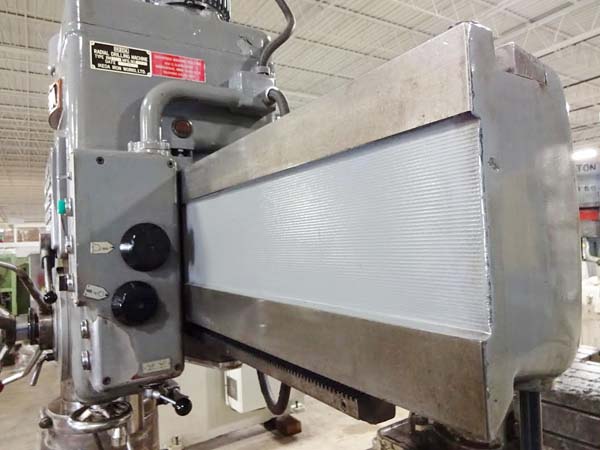

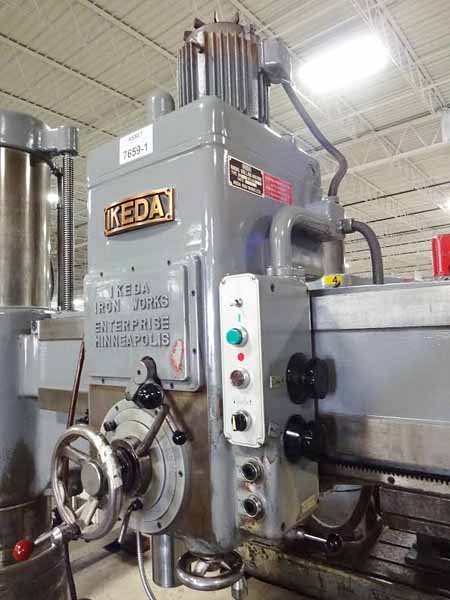

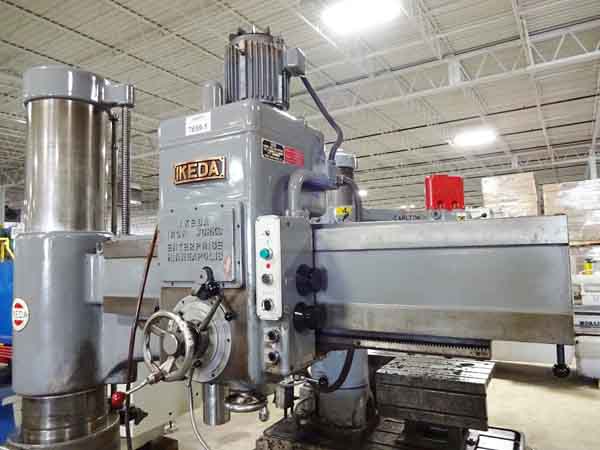

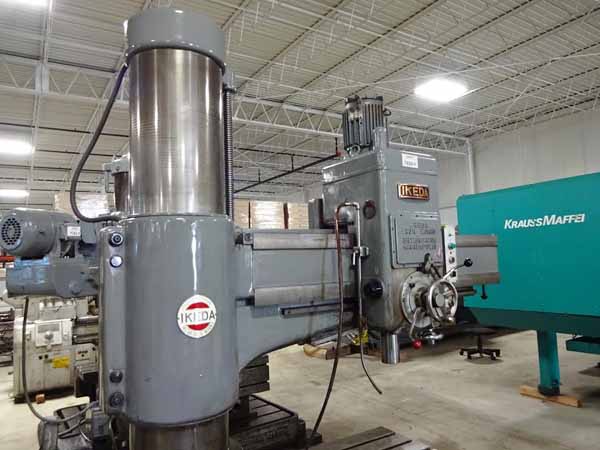

5' x 13" IKEDA MODEL RM1500 RADIAL DRILL, 1976,   Our stock number: 50411

5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,

Click on picture below for larger version
5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,
5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,5' x 13 IKEDA MODEL RM1500 RADIAL DRILL, 1976,

AGE: 1976

SPECIFICATIONS:

Arm Length: 5'
Column Diameter: 13"
Distance Column Sleeve to Spindle Center: 1/2" - 60"
Spindle Travel: 11.75"
Spindle Speeds: 30 to 1400 RPM
Spindle Feed: 0.004 - 0.021 IPR
Drilling Capacity: 1-3/4" - 2-1/8"
Tapping Capacity: 1-3/8" - 1-4/8"
Max. Boring Capacity: 4-5/8"
Spindle Taper: #5 MT
Base: 36" x 88"

EQUIPPED WITH: T-Slotted 26" x 18" x 16" Box Table
Power Elevation
Power Clamping

Motor Data: 5 HP

At Location...............................................
**PHOTO AVAILABLE
