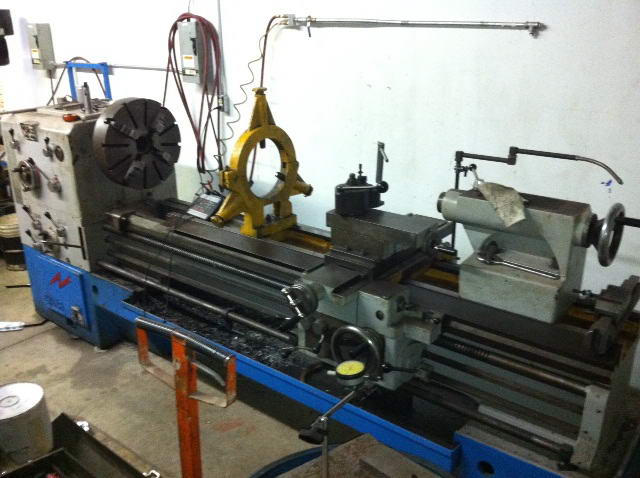

25.5"/30"/16.5" x 80" cc GIANA Gap Bed Engine Lathe, 4 to 1280 RPM, 15 HP   Our stock number: 50135

25.5 /30 /16.5 x 80 cc GIANA Gap Bed Engine Lathe, 4 to 1280 RPM, 15 HP

MODEL NUMBER: 3280

SPECIFICATIONS:

Swing Over Bed: 25.5"
Swing Over Cross Slide: 16.5"
Swing In Gap: 30"
Distance Between Centers: 80"
Gap Length: 12"

Spindle Thru Hole: 3.06"
Spindle Speeds: 4 to 1280 RPM

EQUIPPED WITH:

Inch/Metric Threading (.5" - 30" IPR, 1.124mm - 60mm MPR)
20" 3-Jaw Chuck
20" 4-Jaw Chuck
Steady Rest
Follow Rest (Available)
Power Rapid Traverse
Coolant Pump & Piping
Tailstock
Enco E4 Quick Change Toolpost
1 Shot Lube System
Additional Tool Holders

MOTOR DATA: 15 HP

OVERALL DIMENSIONS: 144" x 48" x 60" High
