New and Used Metalworking Machinery

FIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon Die   Our stock number: 49995

FIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon Die

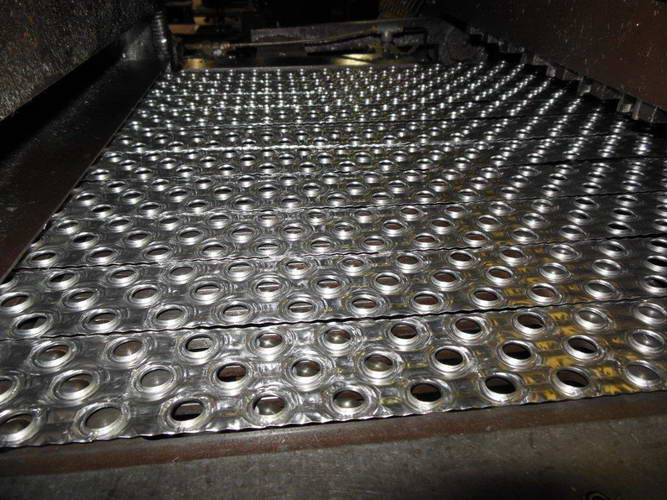

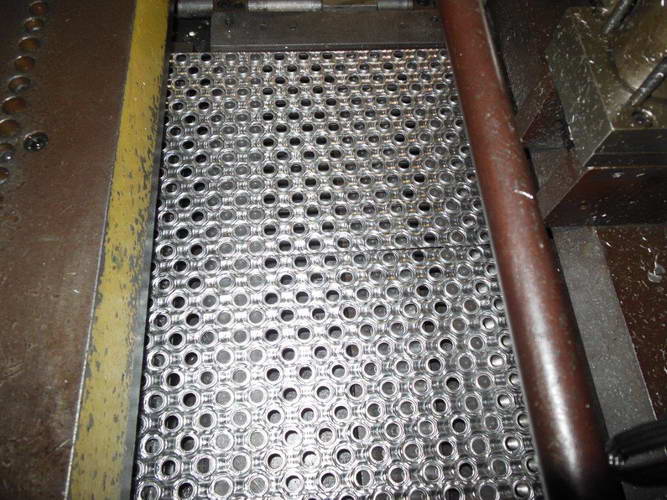

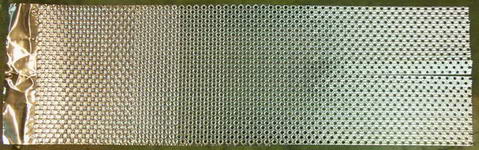

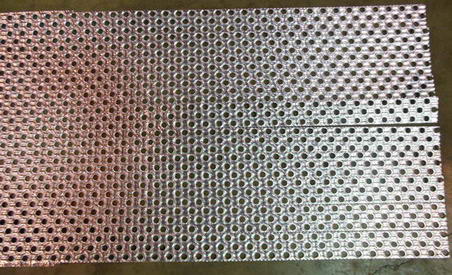

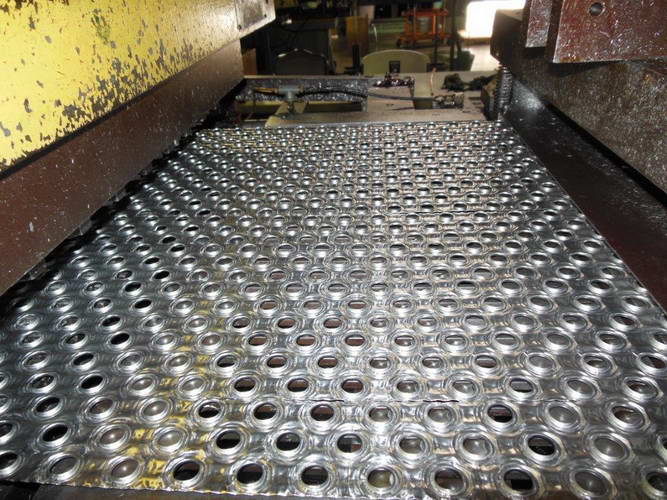

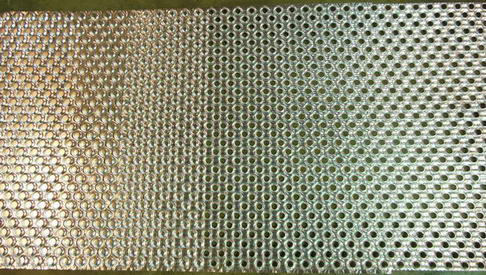

Click on picture below for larger version
FIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon DieFIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon DieFIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon DieFIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon Die
FIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon DieFIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon DieFIN DIE, BURR OAK, .375 x 1 x .625 Pattern, 8 to 20 Fins/Inch, 30 Row Ribbon Die

MODEL NUMBER: FDM-154-3

SPECIFICATIONS:

.0042, .0045, .0055, .006 1100-O Aluminum Capable

Pattern: .375 x 1 x .625
Stroke: 1.5"
Fins Per Inch: 8 to 20

EQUIPPED WITH:

30 Row Ribbon Die With 1 Row Capability
Rippled Edge Trim & Slitter Stations
4 Hole Progression With Conversion Capability To 2 Hole
Or 1 Hold Progression
Indexable To Odd Tube Progression When On 2 Or 4 Hole
Progression
Sine Wave Fin Surface
Original Die Manual
