2-1/2" x .125" MCKAY Tube Mill Line   Our stock number: 49757

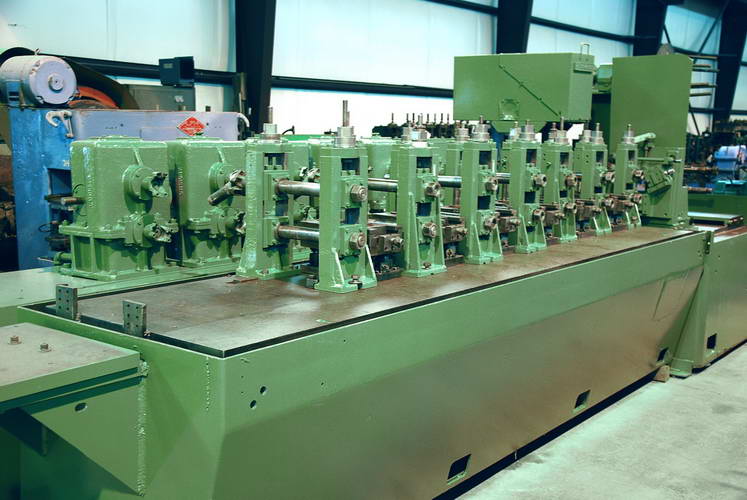

2-1/2 x .125 MCKAY Tube Mill Line

Click on picture below for larger version
2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line
2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line2-1/2 x .125 MCKAY Tube Mill Line

SPECIFICATIONS:

Tube Diameter: 1/2" to 2-1/2"
Wall Thickness: .035" to .125"
D/T Ratio: 10:1 to 60:1
Material Yield, Max.: 50,000 PSI
Roll Space, Forming: 10"
Roll Space, Fin & Sizing: 5-1/2"
Vertical Adjustment: 4" to 7-3/4"
Center Lower Spindle to Base: 7"
Driven Spindle Diameter: 2"
Worm Gear Ratio: 6:1

Hand of Operation: Left to Right

CONSISTING OF:

ENTRY EQUIPMENT:

10" GUILD Shear & End Welder With LINCOLN 185 Tig
Welder, PSA 2000

FORMING MILL:

(4) Driven Breakdown Stands
(3) Driven Fin Stands
(6) Idle Side Roll Units
60 HP DC Motor

WELDING SECTION:

3-Roll Weld Pressure Unit
Double O.D. Scarfing Stand
Pull-Out Stand
Note: H.F. Welder Transformer is Bad

COOLANT SECTION:

Flood Type Coolant Zone


SIZING MILL:

(3) Driven Sizing Stands, 24" Horizontal Centers,
6-7/8" Center Lower Spindle To Base
(3) Idle Side Roll Units
Turkshead
Encoder Stand
60 HP DC

2.5" O.D. x .120" WALL ALPHA #SR 10-2-500 CUT-OFF PRESS:

Die Set
LEMONT Hydraulic Length Control

EQUIPPED WITH:

Run-Out Table
Loop Tower

ELECTRICAL:

(2) 60 HP DC
Push-Button Controls

NOTE:

Multiple Spare Parts

TOOLING TO PRODUCE 2.00":

Tooling Should Be Inspected For Completeness
And Quality


WEIGHT: 35,000 Lbs.
