10,000 Lb EGAN Feed Line, .195" x 20" W Straightener Cap, 24" x .190" Feeder Cap   Our stock number: 49744

10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap

Click on picture below for larger version
10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap
10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap10,000 Lb EGAN Feed Line, .195 x 20 W Straightener Cap, 24 x .190 Feeder Cap

AGE: N/A

SPECIFICATIONS:

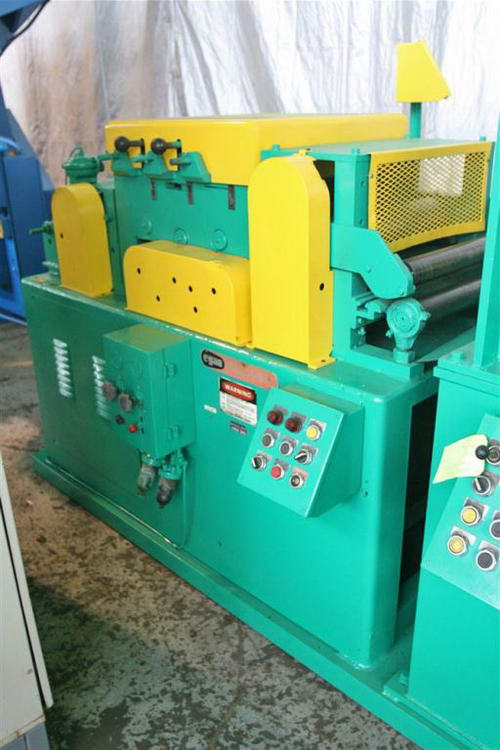

STRAIGHTENER:
Model: S40-620
Capacity: .195"
Width: 20"
Speed: Variable, Standard is 14 - 108 FPM (Cat. Std.)
Number of Rolls: 7
Diameter of Rolls: 4-1/8"
Quick Open Entry Pinch Rolls
Quick Open Exit Pinch Rolls
9-Button Controls
5 HP Motor
Electric Clutch

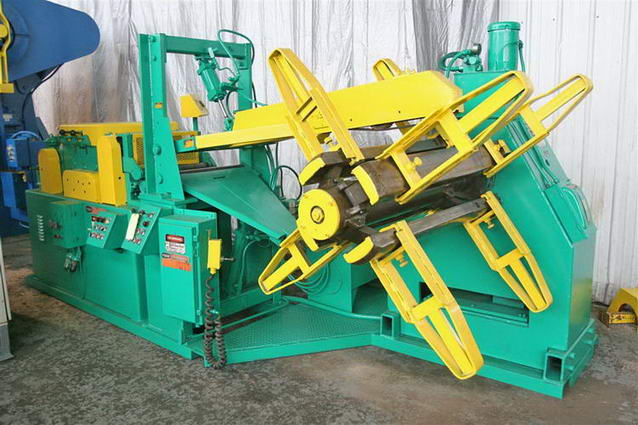

UNCOILER:
Model: M1001-38
Max. Coil Weight: 10,000 Lbs.
Max. Coil Width: 38" w/Keepers
Coil ID: 18" - 24"
Max. Coil OD: 60"
8 Keepers
1 HP Reel Brake Hydraulic Motor
Peeler w/Hydraulic Hold Down
Peeler Hold Down, 9 Button Control
Extends to: 48"
Retracts to: 36"
Mounted on Base: 14'8" L x 5'6" W
Mounted on Base: 14'8" L x 5'6" W

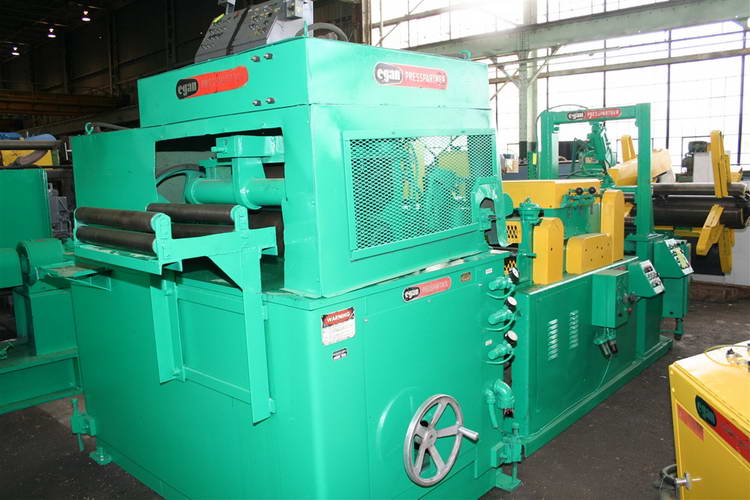

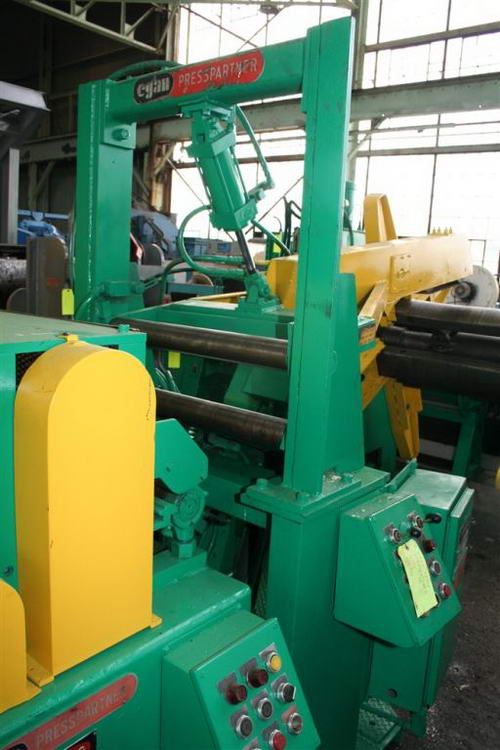

EGAN PRESS PARTNER FEEDER:
Model: CA71-24S
2 Main Entry Serrated
Capacity: 24" x .190"
Rolls: 7-1/2" x 25-3/4"
2 Pre-Entry Rolls: 7-1/4" x 6"
Max. Width: 24"
Exit Rolls: 4
Air Hold Downs
Entry Guides

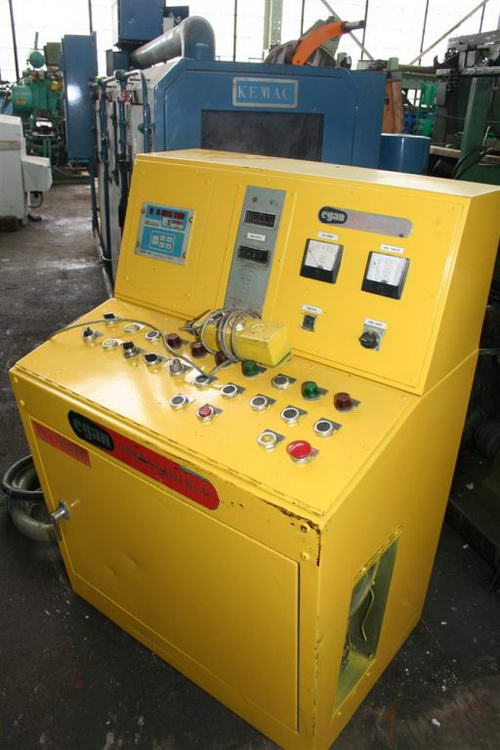

Main Operators Console
DC Motor
Hood Cover
Dimensions: 6'6" H x 6'7" L x 4' W
