New and Used Metalworking Machinery

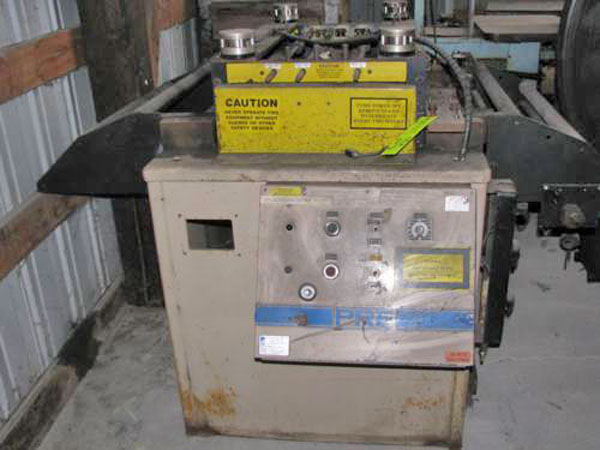

.100" x 30" PRE Model PMS-3025-7DC Straightener, 3 Over 4, Entry/Exit Pinch, 3HP   Our stock number: 49630

.100 x 30 PRE Model PMS-3025-7DC Straightener, 3 Over 4, Entry/Exit Pinch, 3HP

Click on picture below for larger version
.100 x 30 PRE Model PMS-3025-7DC Straightener, 3 Over 4, Entry/Exit Pinch, 3HP.100 x 30 PRE Model PMS-3025-7DC Straightener, 3 Over 4, Entry/Exit Pinch, 3HP

AGE: 1996

SPECIFICATIONS:

3 Over 4, Bottom Rolls Driven

Rolls: 2-1/2" Dia. x 31" Long
Vari-Speed Drive: 0 to 100 FPM

Feeder Dimensions:
42" L-R (Material Direction
53" Wide
Pass Line Adj. From 40" to 64" (Est.)
Control Panel Dimensions: 43" x 26"

Straigtener Dimensions:
6' L-R (Includes Cascade Rolls - Entry & Exit)
62" F-B
40" Pass Line

EQUIPPED WITH:

Entry / Exit Pair Of Driven Pinch Rolls With Regulatable
Pneumatic Pressure
Manual Depth Adjustment On Each Upper Roll
Control Panel

MOTOR DATA: 3 HP DC

Loaded On Truck ........................... Toledo, OH
Photos Available
