60" x .250" x 50,000 Lb SACMA Slitting Line With Banding Line   Our stock number: 49511

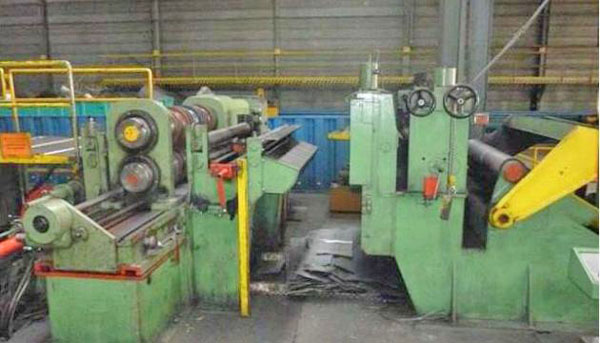

60 x .250 x 50,000 Lb SACMA Slitting Line With Banding Line

Click on picture below for larger version
60 x .250 x 50,000 Lb SACMA Slitting Line With Banding Line60 x .250 x 50,000 Lb SACMA Slitting Line With Banding Line60 x .250 x 50,000 Lb SACMA Slitting Line With Banding Line60 x .250 x 50,000 Lb SACMA Slitting Line With Banding Line

AGE: 1985

SPECIFICATIONS:

Max. Strip Width: 60" (1550mm)
Strip Thickness Range: .020" (0.5mm) to .250" (6mm)
Coil Weight: 50,000 Lbs.
Material: Up to S355JR
Pass Line Height: 40" (1000mm)
Line Speed: 200MPM
Line Direction: Left to Right

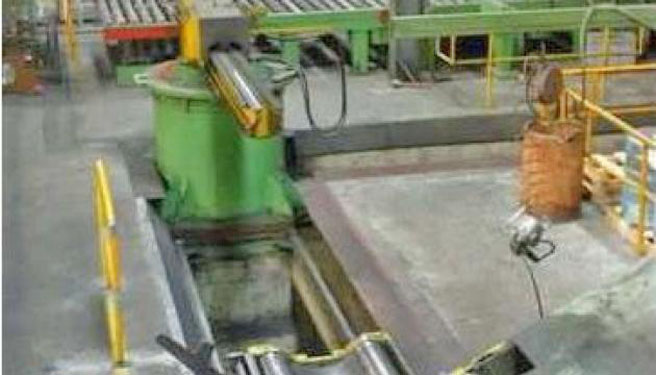

ENTRY COIL CAR:
Pit Type Design
Coil Weight: 50,000 Lbs.

MANDREL UNCOILER:
Coil Weight: 50,000 Lbs.
Coil ID: 20" - 24" (508mm-610mm) w/Pads for 30" (750mm)
Coil OD: 78" (2000mm)
4-Leaf Expansion
Motorized Hold Down Roll
Hydraulic Feed Up Drive

PEELER TABLE

ENTRY PINCH ROLLS:
Hydraulically Powered

CROP SHEAR
CROP SHEAR

ENTRY EDGE GUIDES:
Adjustable Width
3+3 Vertical Rolls Design
Horizontal Strip Guide Device

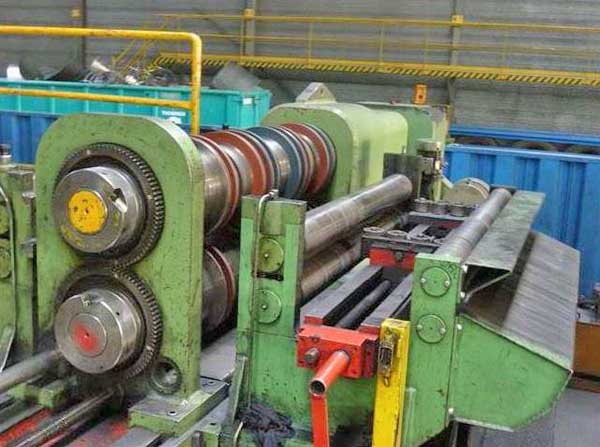

(2) SLITTING HEADS:
Arbor Diameter: 9" (230mm)
Knife OD: 15" (390mm)
100 HP (75KW) DC Drive
Removable Crane Type
Double Bearing Design

(2) SCRAP WINDERS

CONNECTION SADDLES W/HYDRAULIC TABLE

TENSION STAND W/BAFFLE ROLL

CONNECTION TABLE

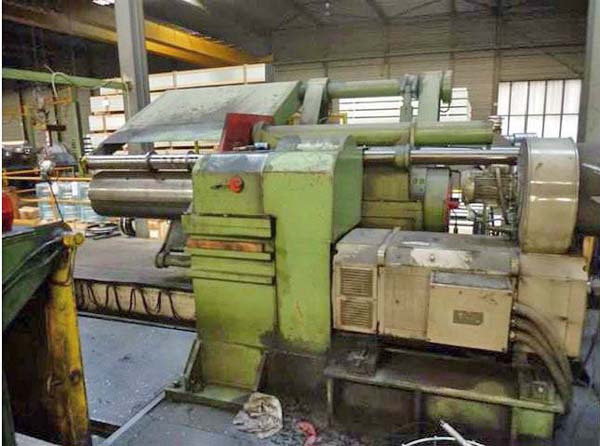

RECOILER:
175 HP (132KW) DC Drive
Overarm Separator

EXIT COIL CAR:
Floor Design

UNLOADING CARROUSEL UNIT

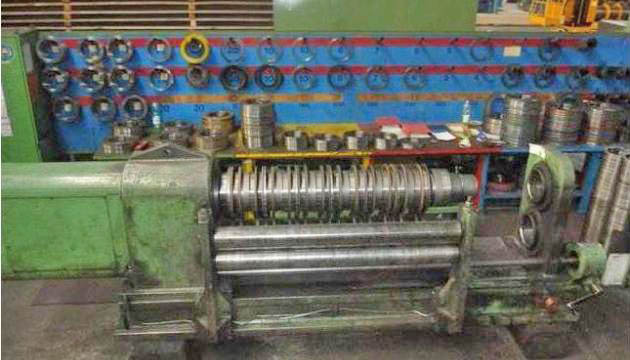

COMPLETE W/KNIFE SETS & RECOILER SEPARATOR DISCS
COMPLETE W/KNIFE SETS & RECOILER SEPARATOR DISCS

SEMI-AUTOMATIC BANDING LINE:
Turnstile
Coil Downlayer
Standing Roll Unit
Rotation Strapping Rolling Unit
Banding Head
(2) Standing Rolls
Collection Units
Complete Line w/Hydraulics, Electrics & Controls

At Location.................................................
**PHOTO AVAILABLE
