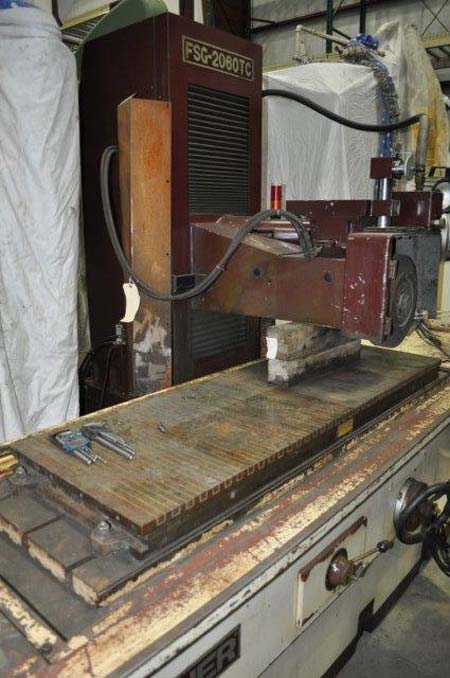

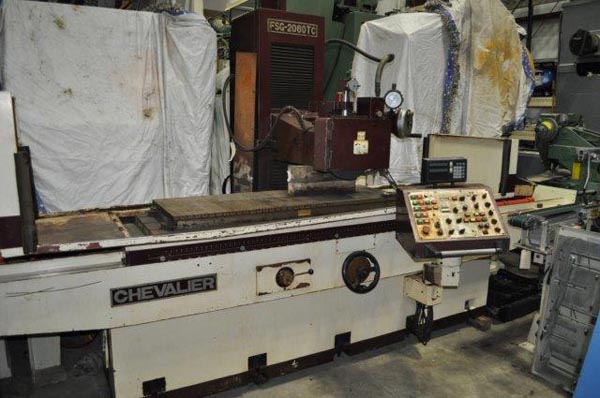

20" x 60" CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP   Our stock number: 49489

20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP

Click on picture below for larger version
20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP
20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP20 x 60 CHEVALIER FSG-2060 ADII Hyd Surf Grinder, 2,420 Lb Cap, 10 HP

AGE: N/A

SPECIFICATIONS:

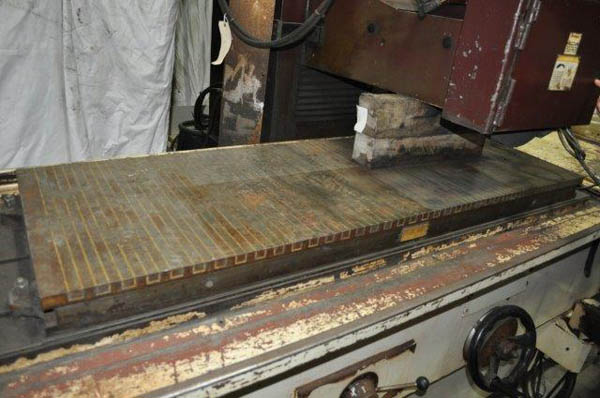

Table Size: 19-5/8" x 59"
Max. Table Capacity: 2,420 Lbs.

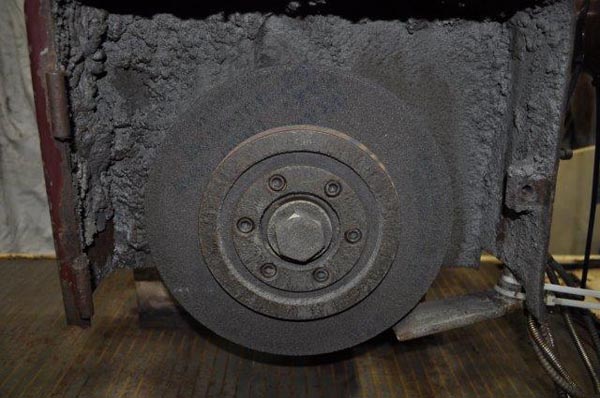

Standard Grinding Wheel: 14" x 2" x 5"
Longitudinal Travel: 63"
Longitudinal Travel Speeds: 16 - 82 IPM
Cross Travel Length: 22"
Cross Travel Rate: 4.9 FPM
Cross Travel Automatic Increment Range: 1/8" - 1.25"
Max. Table to Center of Spindle: 18.625"
Spindle RPM: 1740 RPM

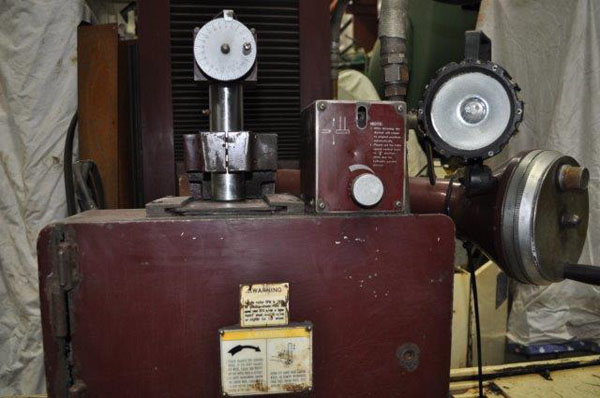

EQUIPPED WITH: Grinding Wheel Dresser

Motor Data: 10 HP, 220/440/3/60 - Spindle Motor
5 HP, 220/440/3/60 - Hydraulic Motor

NOTE: Replacement Cost for this Unit is $74,500.00.

Overall Dimensions: 195" LR x 118" x 110" High
Weight: 14,300 Lbs. Approx.
Condition: GOOD

At Location....................................................
**PHOTO AVAILABLE
