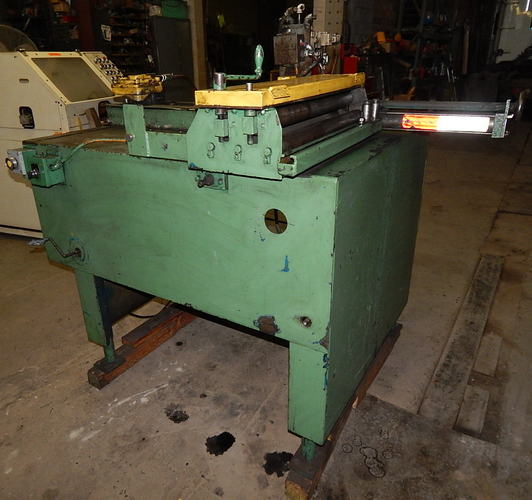

MODEL; HF-2424
SPECIFICATION:
Pneumatic Cabinet Type Grip
Capacity: .090" x 24" Wide
2 over 3 Pull Thru Straightener w/ 2" Diameter
Feed Length: 24" Maximum
Strip Width: 24" Maximum
Feed Direction: Right to Left
Adjustable Pass Line Height: 46.5" to 54.5"
All 4 Legs Height Adjust With a Single Handle
EQUIPED WITH:
3 Position Selector Switch: Off (load), Pilot Pin, Run
Adjustable Width Exit Edge Guide Rollers
4 Coner Adjustable Height Cabinet Support Legs
Control Selinoid Valves
CONDITION: Good, as Removed directly from Service
NOTE: It is on a 30" x 30" Base. Therefore it could feed a 30"
wide Coil by removing the Straightener but only has a max. feed
stroke of 24"
