5-1/2" x .187" SFM High Frequency Tube Mill Line, Right-to-Left   Our stock number: 52366

5-1/2 x .187 SFM High Frequency Tube Mill Line, Right-to-Left

Click on picture below for larger version
5-1/2 x .187 SFM High Frequency Tube Mill Line, Right-to-Left5-1/2 x .187 SFM High Frequency Tube Mill Line, Right-to-Left5-1/2 x .187 SFM High Frequency Tube Mill Line, Right-to-Left5-1/2 x .187 SFM High Frequency Tube Mill Line, Right-to-Left

SPECIFICATIONS:

140 high frequency welded tube mill line is designed to
produce both round and square tube. This line utilizes
roll forming to process steel strip into various shapes.
Using high frequency induction heating, this line is
capable of producing section material of various dimaeters
and sizes by squeezing weld seams together into a closed
shape.

Line Direction: Right-to-Left

Round Tube Diameter: 2" to 5-1/2"
Wall Thickness: .059" to .187"
Strip Thickness: .059" to .187"

Single Point Adjustment

Voltage: 480/60/3

Welding Speed: 65 to 196 FPM

SFM FORMING MILL:

(1) Leveler, 2 Over 3
(1) Guiding Roll

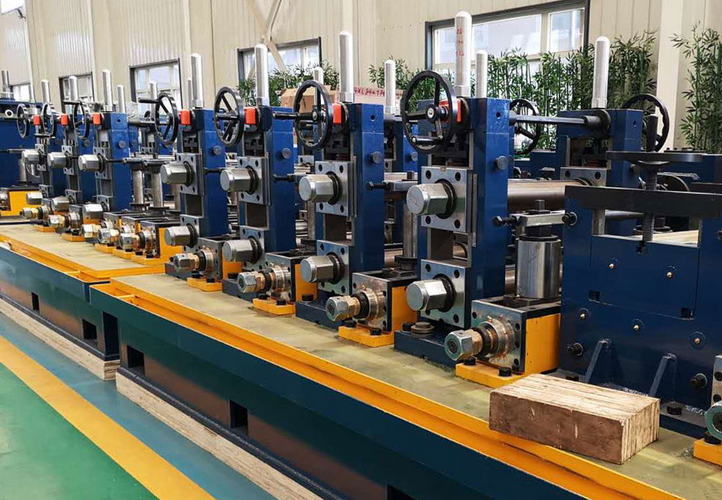

(7) Horizontal Forming Stands, 3.93" Roll Shaft Diameter
(9) Vertical Roll Stands, 2.36" Roll Shaft Diameter
(1) Drive

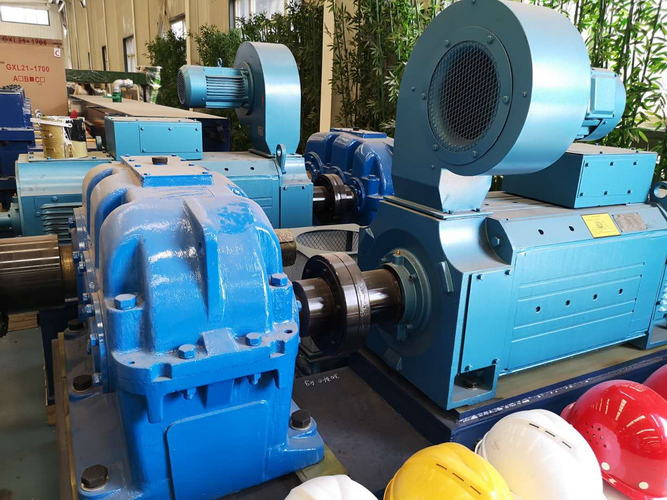

(1) DC132KW Drive Motor

WELDING SECTION:

(1) Idle 2-Roll Weld Seam Guide-Roll
(1) 3-Roll Weld Pressure Unit
(1) Outside Weld Dual Scarfing Unit
(1) Idle 2-Roll Iron Roll
(1) 20' Long Cooling Device

SFM SIZING MILL:

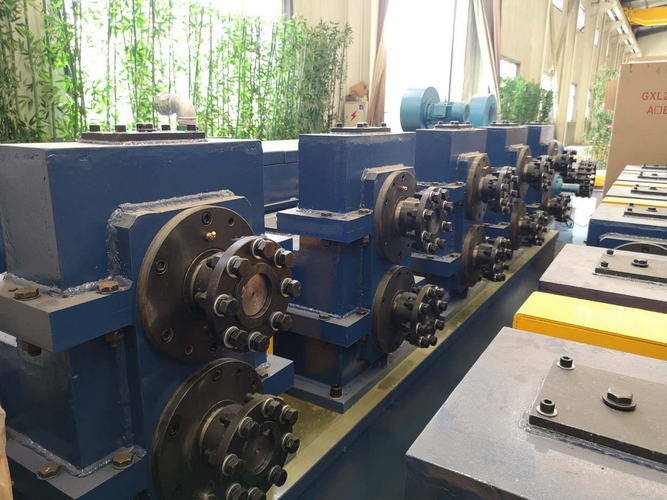

(5) Horizontal Sizing Stands
(5) Vertical Roll Stands

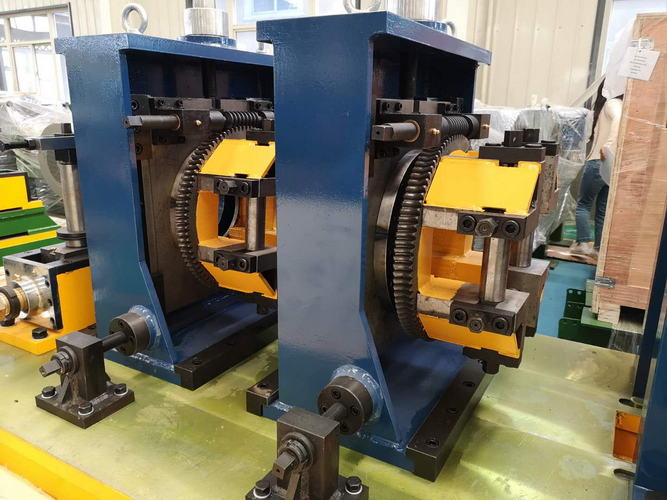

(2) 4-Roll Straightening Turksheads
(1) Driving Device
(1) DC132KW Drive Motor

CUT-OFF:

(1) UCG #U-TRAK S3 High Speed Flying Cold Saw

DRIVE SECTION:

(2) 177 HP DC Motors

DELIVERY:

10 to 12 Weeks

NOTE:

Does Not Include Rollers, Welders and DC Motor Converter
