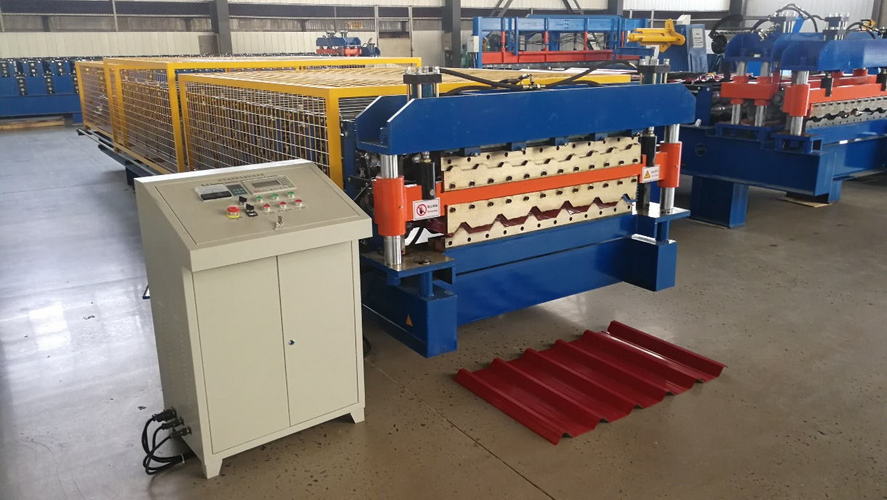

13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap   Our stock number: 52289

13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap


Click on picture below for larger version
13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap
13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap13-Stand Double Deck Roll Forming Line, 75mm Spdl, 1200mm x .3mm to .7mm Cap

SPECIFICATIONS:

Material: Colored Steel Plate, Galvanized Board,
Aluminum Plate

Spindle Diameter: 75mm (2.95")

Width: 1200mm (47.24")


Thickness: 0.3mm to 0.7mm (.012" to .028")

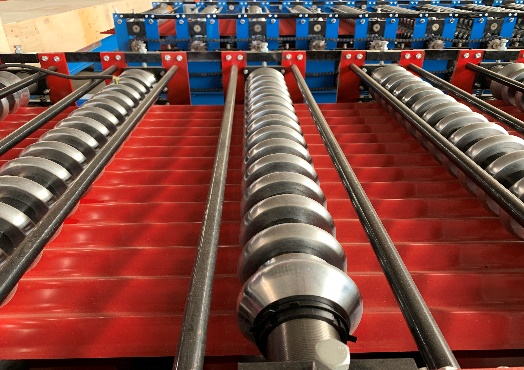

Rollers: 45# Steel
Roll Tool Polish
Hard Plated
Polished and Heat Treated to Resist Galling and
Extend Tooling Life
Chain Drive

Speed: 0 to 15M/Min. (0 to 49.2 FPM)

Voltage: 440/60/3

EQUIPPED WITH:

(2) 10,000 Lb. Hydraulic Uncoilers:

Coil I.D.: 500mm to 508mm (19.69" to 20")
(2) Inside Coil Keepers
Uncoiled by Hand

Computer Control Cabinet:

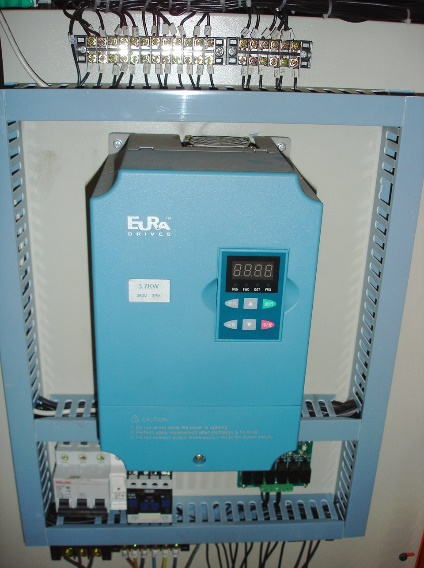

Eura/Delta PLC and Inverter
Operator Control Console with Manual
Automatic Mode with Digital Length Input

Shear:

Rotary Encoder Measuring for Stop/Start Type
Hydraulic Cut-Off
Cr12 Blades, Quenching Treatment

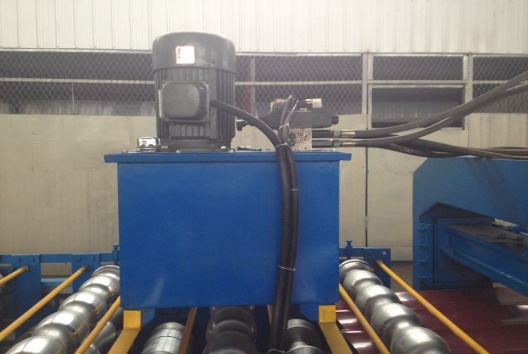

Hydraulic Pump and Tank

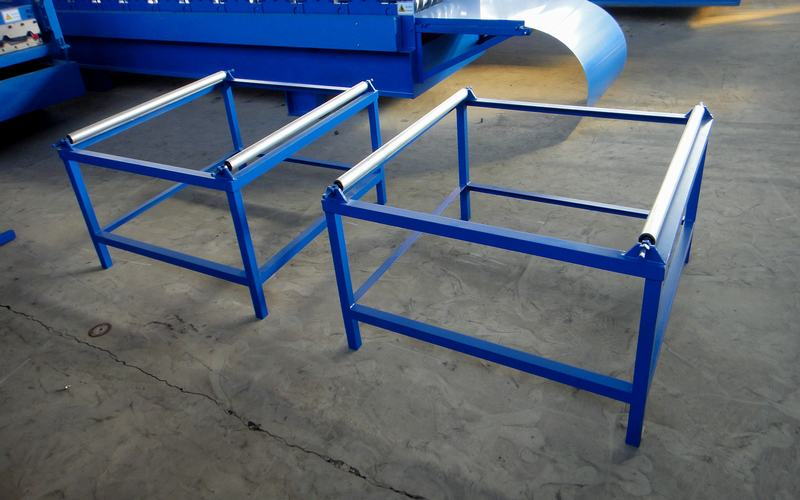

Exit Roller Support Stands
Spare Parts

MOTOR DATA: 5.5 kW (7.37 HP)
4 kW (5.36 HP)

OVERALL DIMENSIONS: 350" x 61" x 75"

**** Contact Us For Current Pricing ****
