CONSISTING OF:

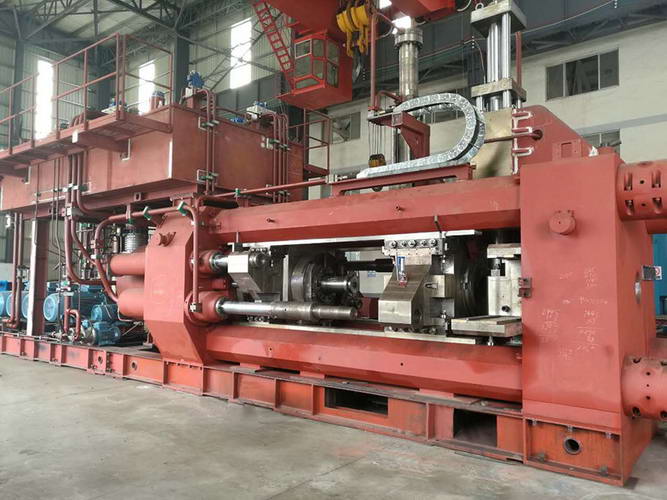

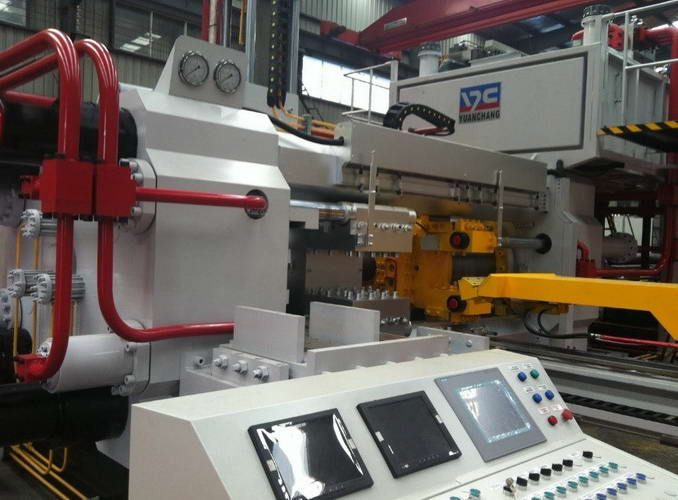

1990 Ton Model XJ-2200UST Aluminum Extrsion Press:
Short Stroke
Front Loading
Billet Length: 450mm to 850mm
Billet Diameter, Round: 178mm (7")
Main Cylinder, Stroke: 1200mm
Main Cylinder, Force: 1990 Tons
Side Cylinder, Stroke: 1200mm
Side Cylinder, Force: 225 Tons
Shear Stroke: 750mm
Shear Force: 87 Tons
60 M L Extrusion Handling Table With Single Puller:
Capacity: 7"
With Auto-Stacking Machine
Single Long Billet Heating Furnace With Hot Log Shear:
Capacity: 7"
Die Oven:
4-Cells
Open Top Type
Aluminum Profiles Aging Furnace:
Profile Length, Max.: 6500mm
