AGE: 1981

SPECIFICATIONS:

Capacity: 5 Tons
Tube Size Range: Up to 1-1/4" (2) @ 1"
Centerline Radius Range: 3-1/2" Max. C.L.R.
Work Diameter: 2" to 3" Min.
Bend Angle: 110 Deg. Max. - Normal Tooling
150 Deg. Max. - Special Tooling
Operating Pressure: 2000 PSI
Production Speed: 2000 Bends Per Hour, Variable Ram Speed

Control
Height From Floor to Dies: 40"
Non-Ferrous Tubing: Y.P. to 25,000 PSI (2) 1" x .072" Wall
Mild Steel: Y.P. 40,000 PSI (2) 1" x .065" Wall
Stainless: Y.P. 60,000 PSI (2) 1" x .049"
Steel Pipe Schedule 80: (2) 3/8"
Square Tube (Mild Steel): (2) 7/8" x .035"
Round Bar (Mild Steel): (2) 5/8"
Square Bar (Mild Steel): (2) 1/2"
Maximum Section Modules (Mild Steel): (2) @ .036"
Maximum Horizontal & Vertical Dimensions: 2" & 1-1/4"

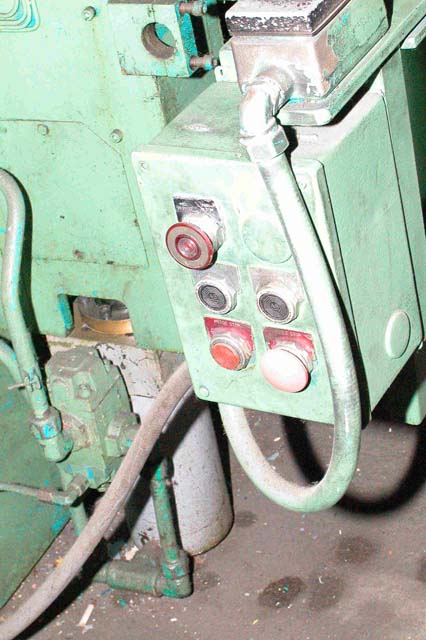

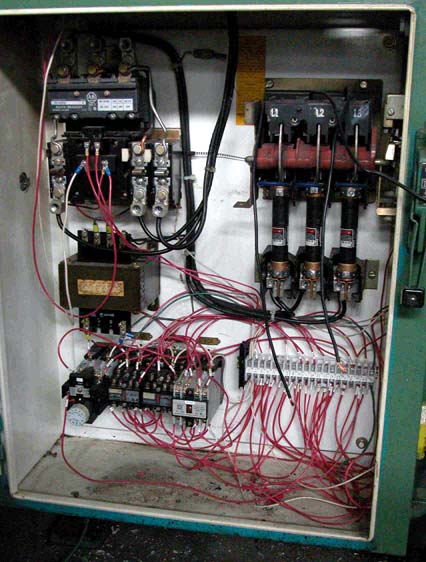

EQUIPPED WITH: Electrical Push Button Controls

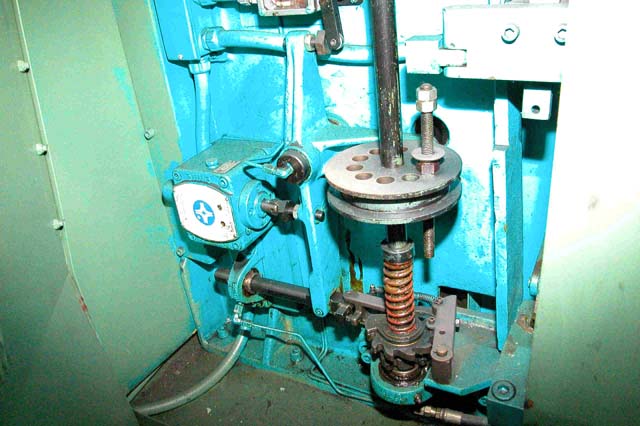

Automatic (10) Station Angle Bend Selector

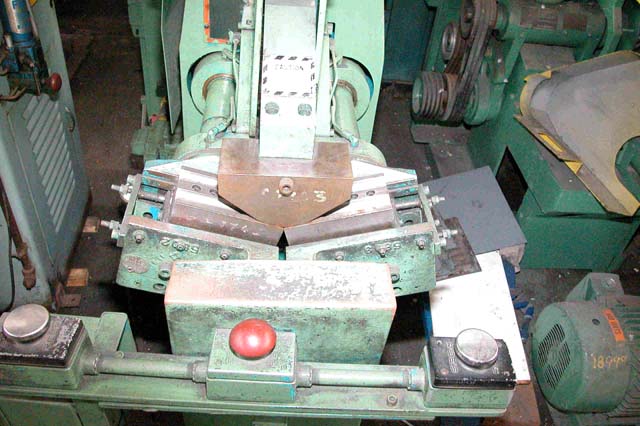

Knee Mounted Wing Die
Cushion Cylinder
Hydraulic Oil Water Cooler
Trabon Lubrication System
Trabon Lubrication System

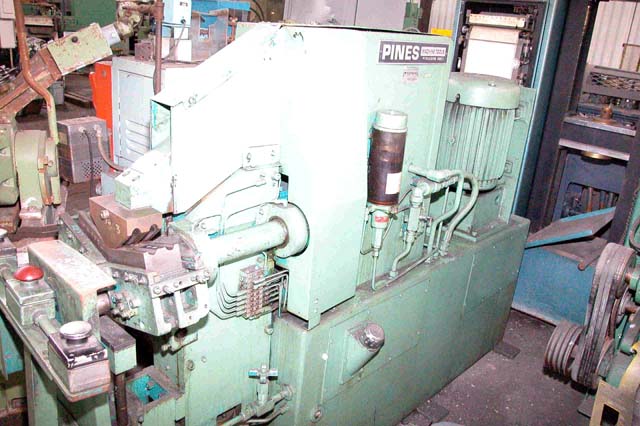

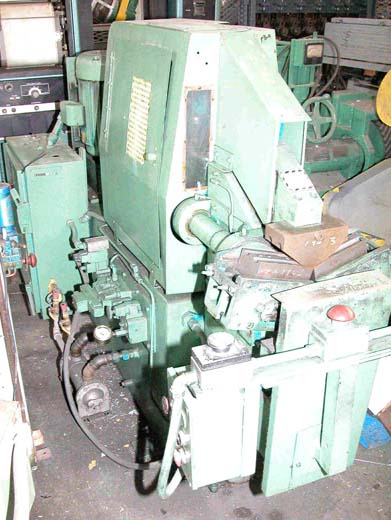

Model #5T PINES Hydraulic Vert. Tube Bending Press Cont.


Motor Data: 20 HP, Baldor, 230/460/3/60 - 1760 RPM

Overall Dimensions: 7'9" L x 2'8" W x 5' High
Weight: 3,400 Lbs.
Condition: VERY GOOD, Will Clean, Paint & Test Under Power.

Loaded on Truck.........Toledo, (Campbell St. Whse.) OH
**PHOTO & CATALOGUE INFO AVAILABLE
