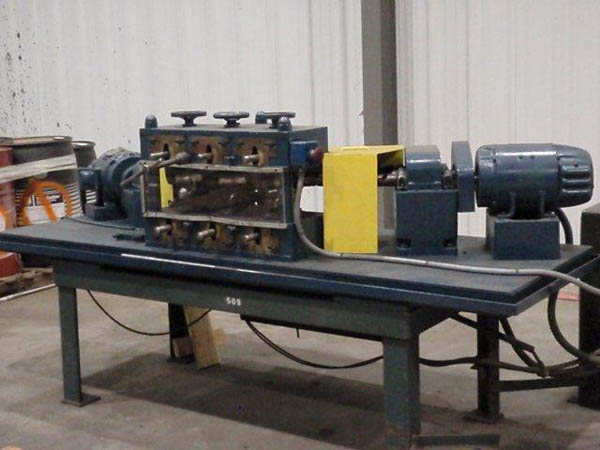

1-1/8" MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4" to 1-1/8" Tube OD   Our stock number: 47968

1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD

Click on picture below for larger version
1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD
1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD1-1/8 MACKINTOSH-HEMPHILL #AXY 6-Roll Straightener, 1/4 to 1-1/8 Tube OD

TEMPORARY SPECIFICATIONS:

Capacity, Tube O.D.: Min.: 1/4"
Nominal Max.: 7/8"
Max.: 1-1/8" (Thin Wall Tubing)
Production Speed: 240 to 360 FPM
Roll Size: O.D.: 3-5/8"
Center Dia.: 3"
Length: 5"

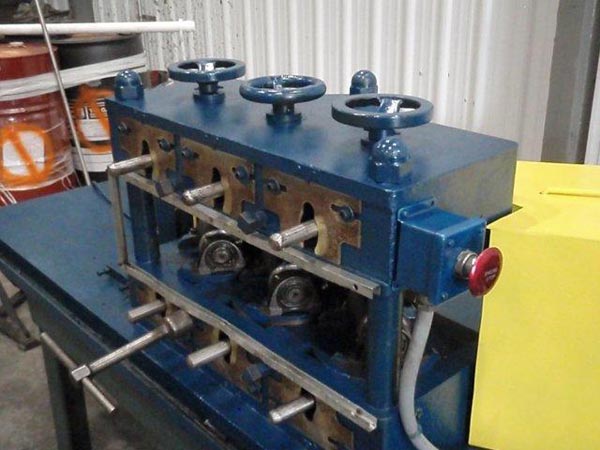

EQUIPPED WITH: Top (3) Rolls Have Vertical Adjustment
All (6) Rolls Have Controls for Offset Arrangement

of Rolls

Overall Dimensions: 3'2" W x 8'10" L x 4'8" High
Weight: 3,800 Lbs. Approx.

Loaded on Truck..........................................
**PHOTO AVAILABLE
