CUSTOM No. MSP2400 WIRE MESH WELDER, 2002,   Our stock number: 47940

CUSTOM No. MSP2400 WIRE MESH WELDER, 2002,

Click on picture below for larger version

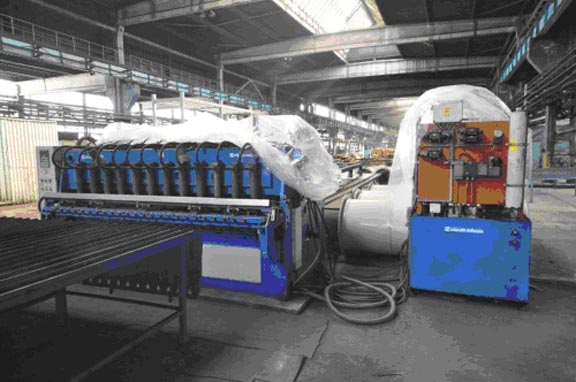

CUSTOM No. MSP2400 WIRE MESH WELDER, 2002,CUSTOM No. MSP2400 WIRE MESH WELDER, 2002,

AGE: 2002

SPECIFICATIONS:

Wire Thickness: 4 - 8mm
Panel Width: 2400mm Max.
Panel Length: 6000mm Max.
No. of Longitudinal Wires: 24 Max.
Longitudinal Distance Between Wires: 100, 200mm
Distance Between Cross Wires: 50, 100, 150, 200mm
Voltage: 3 x 380 V/50 Hz
Cooling Water Flow: 50 I/Min. Minimum
Cooling Water Pressure: 1.5 to 2.5 Bar
Productivity: 10 Panels per Hour Approx.
Driving Hydraulic

Overall Dimensions: 1750mm x 3500mm x 1750mm

At Location...............................................
**PHOTO AVAILABLE
