AGE: 1984
SPECIFICATIONS:
Material: HR, CR
Shear Strength: 55,000, 89,000, 119,000 PSI
Coil Weight, Max.: 44,000 Lbs. Entry/Exit
Coil Width: 20" to 62" (Untrimmed) Entry
60" Max. Exit
Coil O.D.: 36" to 72"
Coil I.D.: 20" to 24" Entry, 20" Exit
Gauge: 0.010" to 0.188"
Threading Speed: 50 FPM
Low Speed Range: Coil Buildup 220 FPM At 24" Diameter
Building Up To Approx. 660 FPM On A Full
72" O.D. Coil
High Speed Range: Coil Buildup 550 FPM At 24" Diameter
Building Up To Approx. 1200 FPM On A
Full 72" O.D. Coil
Helper Drive Slitting Geared In At
570 FPM
Free Loop Slitting Geared In At 570 FPM
Hand Of Line: Left To Right
Services Required: 480 V, 3 Ph, 60 Hz - 215 kW Incoming
80 PSI Required In A Quantity Based On
30 Cubic Feet Of Free Air Per Minute,
Equivalent To A 5 HP Air Compressor
APPROXIMATE SPEED AND CUTS PER MINUTE:
55,000 PSI Shear Strength: .062" - 5 Cuts At 1200 FPM
.121" - 5 Cuts At 580 FPM
.187" - 4 Cuts At 300 FPM
.187" - 5 Cuts At 240 FPM
.250" - 3 Cuts At 225 FPM
89,000 PSI Shear Strength: .062" - 5 Cuts At 1200 FPM
.121" - 5 Cuts At 360 FPM
.187" - 3 Cuts At 250 FPM
119,000 PSI Shear Strength: .062" - 4 Cuts At 1200 FPM
.121" - 4 Cuts At 333 FPM
.156" - 3 Cuts At 270 FPM
CONSISTING OF:
Entry Coil Car: Pit Mounted With 34' Travel, 33" Lift
Capacity, Push-Button Control From Operator's System,
All Wheels Are Hydraulically Driven, Hydraulically
Driven Blocker Rolls With Three Banding Slots

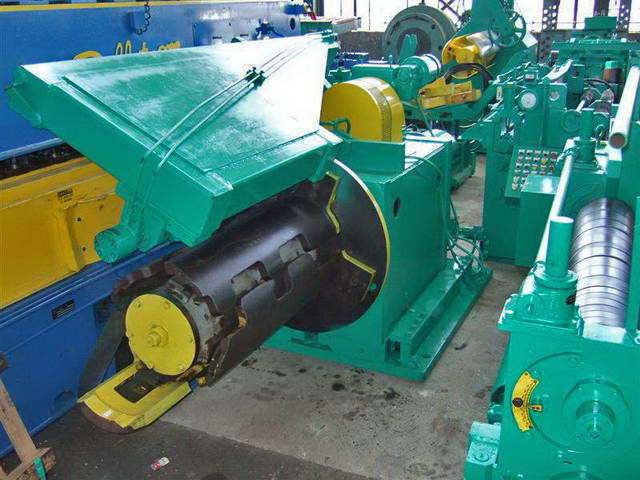

Uncoiler: Four Segment Pumpkin Tooth Mandrel, 62" Drum
Face Width, Hydraulic Expansion Range Of 19.5" to
24.50", Copper Jacketed Water Cooled Brake,
Reversing Feed-Up Drive With 3 HP Motor,
Positioning Base On Anti-Friction Bearings, Driven
Holddown Roll, Holddown Roll Is 36" Face and 8"
Diameter, Grooves For Inserting Banding Material,
Drum Has (4) Wedges For Expansion, Approx. 32.5"
Passline To Center Of Mandrel
Entry Preparation Unit: Telescoping Peeler Blade With
Replacement Tip & Replaceable Liners, Automatic Edge
Control With Photo-Electric Edge Sensor, Primary
Light Source and Receiver Controls Mounted On Unit,
Entry Hydraulic Crop Shear, Slitter Entry Side
Guides, Vertical Roll Type With Replaceable Bronze
Wear Surfaces, Guides Are Manually Positioned,
(1) Pair Of Pneumatically Actuated Hydraulically
Driven Entry Pinch Rolls, Upper Roll Only Is Driven

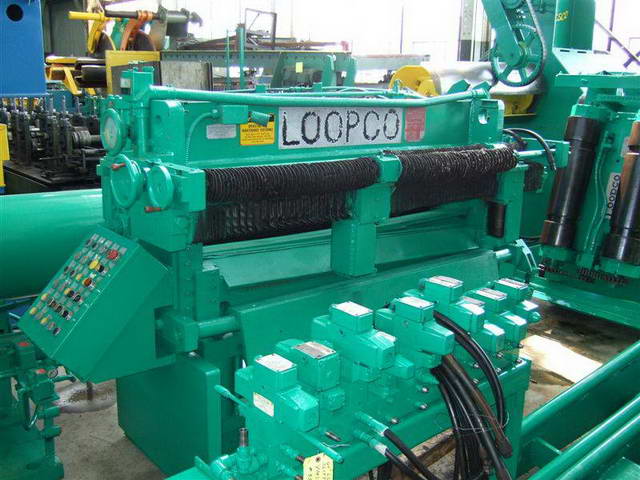

(1) Removable Head Slitter: 7.50" Dia. x 63" Face Arbors,
Jet Nuts For Locking Tooling On Arbors, 10.5" to
12.50" O.D. Knives and 9.50" O.D. Spacers, 75 HP
Allen Bradley DC Drive (1150/2000 RPM, 500 V, With
Blower, Reducer With 3.56:1 Ratio For Helper Drive
and Free Loop Slitting)
(1) Slitter Exit Table: Sliding Steel Table Mounted On Cam
Rollers, 4" Diameter x 64" Steel Roll Mounted On Exit
Side Of Table
Pit Threading Table: Hydraulically Actuated Pivoting Steel
Table, Tivar Covering To Prevent Scratching Of Slit
Material, Hydraulic Cylinder With Adjusting Bracket
Which Permits Table To Be Adjusted To Proper
Elevation

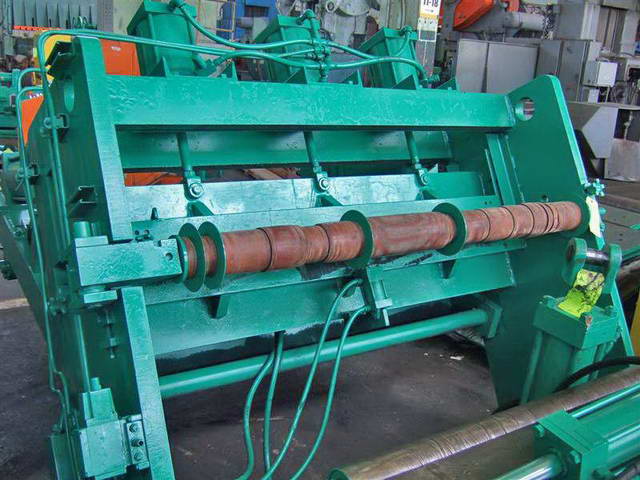

Strip Tensioning Stand: Tension Pads Are Easily Removable
From Either Side, Cylinder Operated To Control Load
On Strands, Quick Opening Feature For Ease Of
Threading, 3.50" Diameter Separator Shaft On
Anti-Friction Bearings, Entry Threading Table Spans
The Distance Between The Pit Threading Table Support
Stand and the Separator Shaft (Table Is Hydraulically
Raised and Lowered to Provide Access to Swing
Separator Shaft and Scrap Conveyor), Exit Thread
Table to Guide Strips Into Recoiler Drum and Overarm
Separator (Pneumatically Actuated)

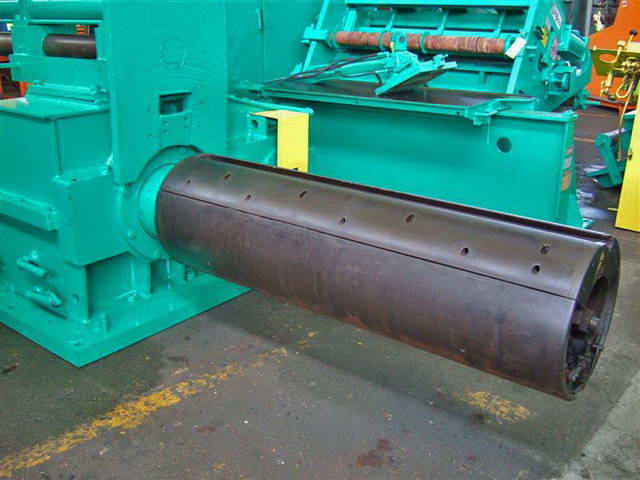

Recoiler: 20" Diameter Drum, Hydraulic Drum Expansion and
Gripping of Slit Strands, Gripper Slot Opens To
0.500", Hydraulically Operated Stripper Plate With
Spring Loaded Bronze Insert, 100 HP Reliance DC Motor
(500/2000 RPM, 500 V), 2-Speed Gearbox With 22.89 and
55.71:1 Ratios, Spring Set Holding Brake Interlocked
With Line
Overarm Separator: Mounted On Tension Stand, Manual Air
Valve Controlled

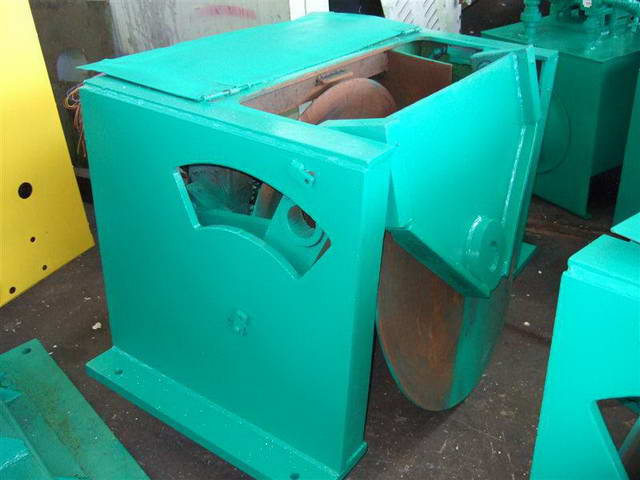

(2) Scrap Winders: Hydraulic Drive, Fully Automatic Dump
Type That Empties Through The Bottom, Capacity
Approximately 1,200 Pounds At 50 Percent Density,
Maximum Trim 1" Wide Per Strand

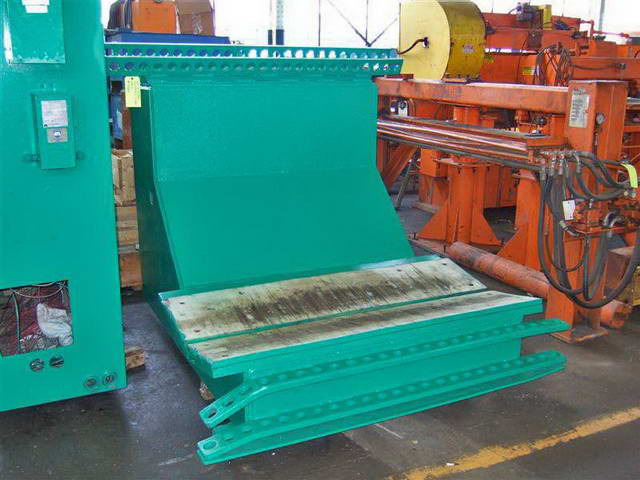

Exit End Floor Mounted Coil Car: "V" Type, 66" Wide
Platform To Support Slit Strands, Adjustable Coil
Restraining Arms, 24" Lift Capacity, Push-Button
Control, 10 HP Self-Contained Hydraulic System,
Approx. 14" From Floor To Bottom Of "V" Cradle
Electrical Drive and Control Package: Slitter Motor
Is 75 HP (1150/2000 RPM) DC Motor, Recoiler Motor
Is 100 HP (850/2550 RPM) DC Motor, Entry & Exit
End Push-Button Stations, Main Operator's Station

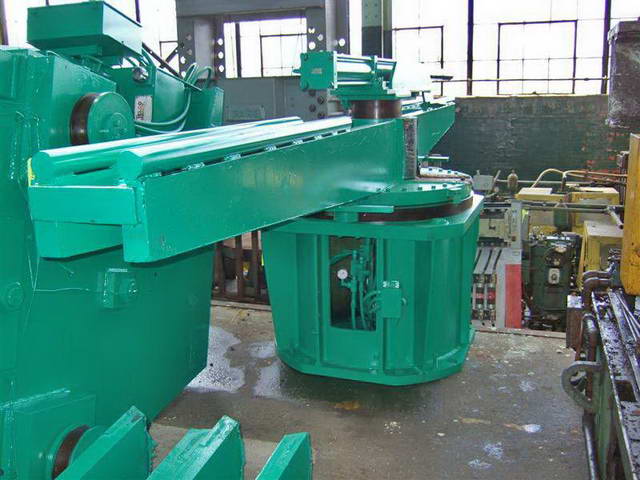

4-Arm Coil Turnstile: Storage Space For (4) 40,000 Lb.
x 60" Wide Coils, 67" Usable Arm Length, "C" Hook
Slot On All Arms, Hydraulic Powered Stripper To Push
Coils Off Of Arm, Hardened Curved Bars On All Arms To
Minimize Telescoping Of Coils and Wear, Power
Rotation In Either Direction With Limit Switches To
Stop Rotation Every 90 Degrees, 221" Tip To Tip
(110.5" Swing Radius) Overall Length, Approx. 57.75"
From Floor To Top Of Arms
(2) Hydraulic Power Units: 20 HP AC Motor (1750 RPM), 20
GPM Variable Volume (Pressure Compensated Pump),
Designed To Operate At 1500 PSI, Valves Are Manifold
Mounted On The Pump Units, 60 Gallon Oil Reservoir
(1) 100,000 BTU Recirculating Water Cooler: Complete With
Industrial Type Pump & TEFC Motor, Blower & Finned
Tube Heat Exchanger, Push-Buttons and Flow Switch,
100 Gallon Stainless Steel Tank
Complete Set Of Mechanical and Electrical Drawings Included
At Location ........................... Toledo, OH
Photos Available
