AGE: 1985
SPECIFICATIONS:
406.4~1220mm Dia. x 6~14mm Thk x 3MPM x 30 Ton

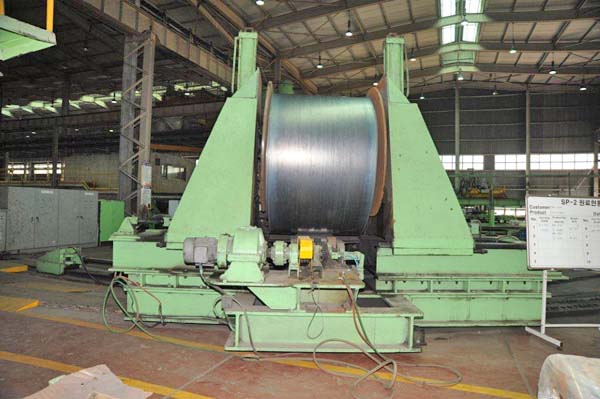

Coil Lamp (Coil Stand): 700mm ~ 1350mm Width
Uncoiler: Geared Motor 5.5 Kw x 4P x 1/187
Pinch Roller: 500mm ~ 1100mm Width, 20 HP x 4P x 1/60
Coil Opener: Hydraulic Cylinder
Flattner: Roller 250mm Dia. x 1200mm L
Side Guide Roller: 500mm ~ 1300mm Width (4 Sets)
Cross Welder: Speed 0.48 ~ 1.5 Meter/Min. x 1750
Leveller: Roller 250mm Dia. x 1200mm L
Side Trimmer & Chopper: 7.5, 5.5, 0.75 Kw Motor
Pre-Bending Roller: Roller 220mm Dia. x 125mm L
Main Drive: DC 37 Kw x 650 ~ 1600 RPM, Reducer 37 Kw x
1/828 x 300 ~ 1800 RPM
Forming Station: 406mm ~ 1524mm Dia. (15 ~ 45 Deg.), 20 HP
x 4P
Push Roll Rod: Motor 20 HP x 4P
In Let Frame Swivel Device: 16,600mm L, 180mm Dia. x 100mm
Dia. 800mm L
EQUIPPED WITH: Outlet Frame Lower Table
Plasma Cutting Machine
Inside & Outside Automatic Welding Machine
Flux Recovery
Condition: Upgraded Recently. Under Operation, Power,
Installed, on Foundation.
At Location.................................................
**PHOTO AVAILABLE
