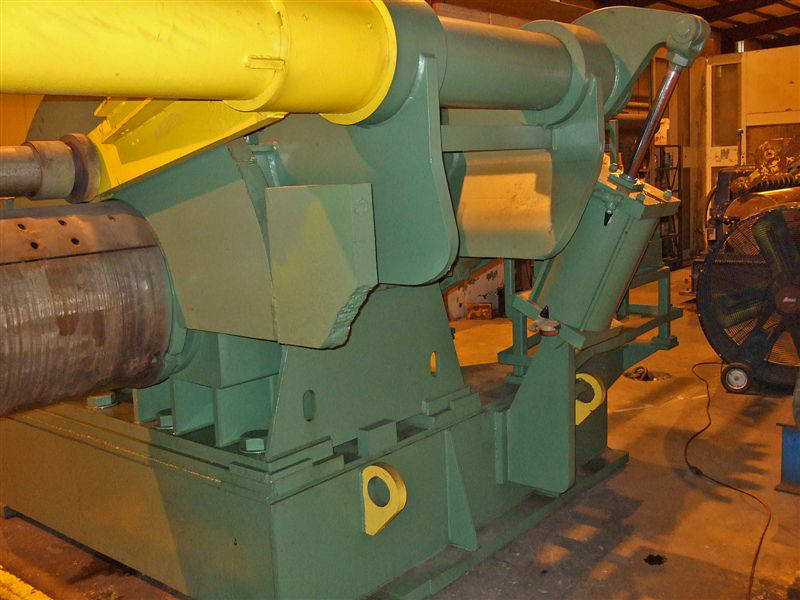

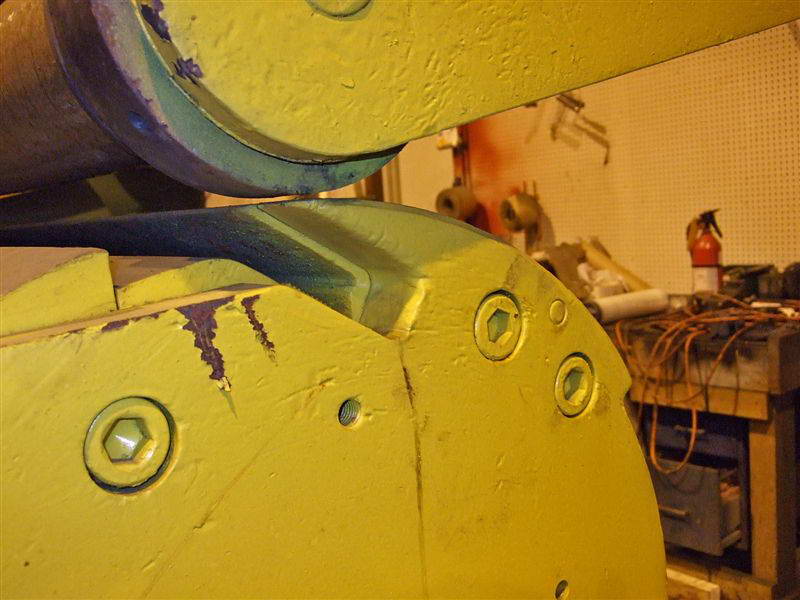

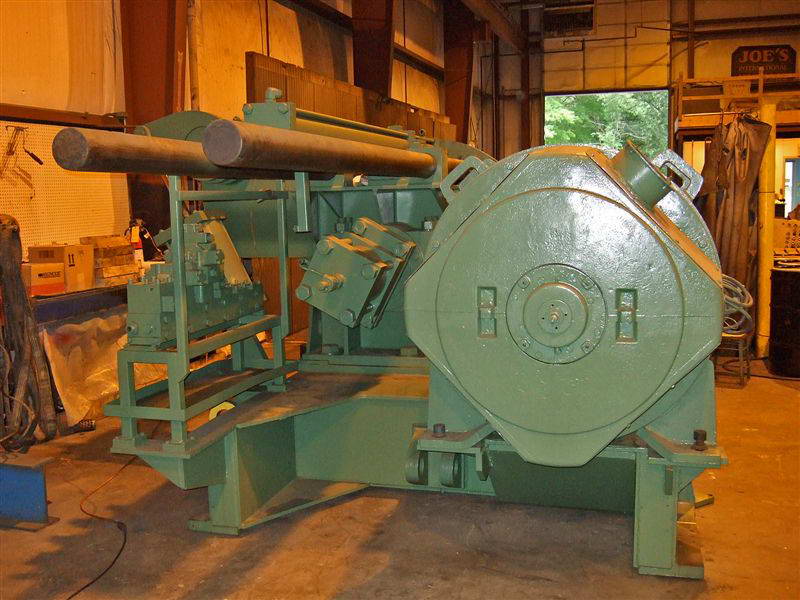

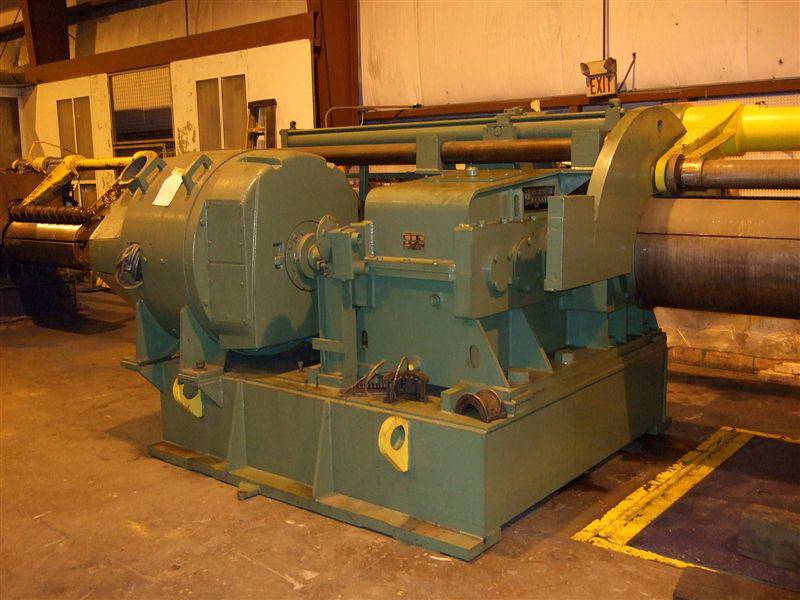

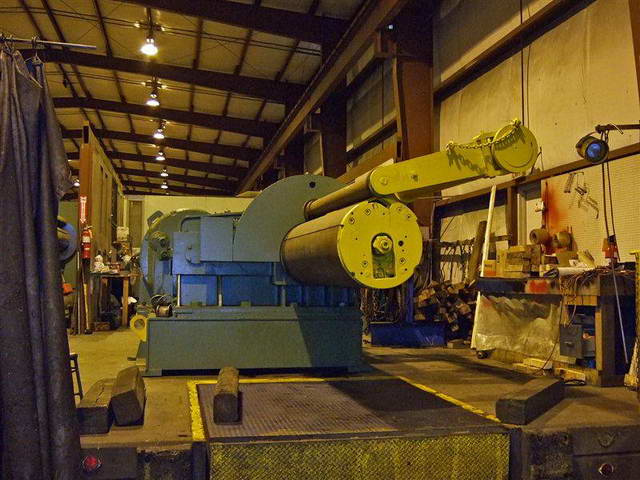

60,000 Lb PRO ECO Recoiler, 24" Dia x 83.5" Face Drum, 72" OD, 300 HP   Our stock number: 47666

60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP

Click on picture below for larger version
60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP
60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP60,000 Lb PRO ECO Recoiler, 24 Dia x 83.5 Face Drum, 72 OD, 300 HP

AGE: 1978

SPECIFICATIONS:

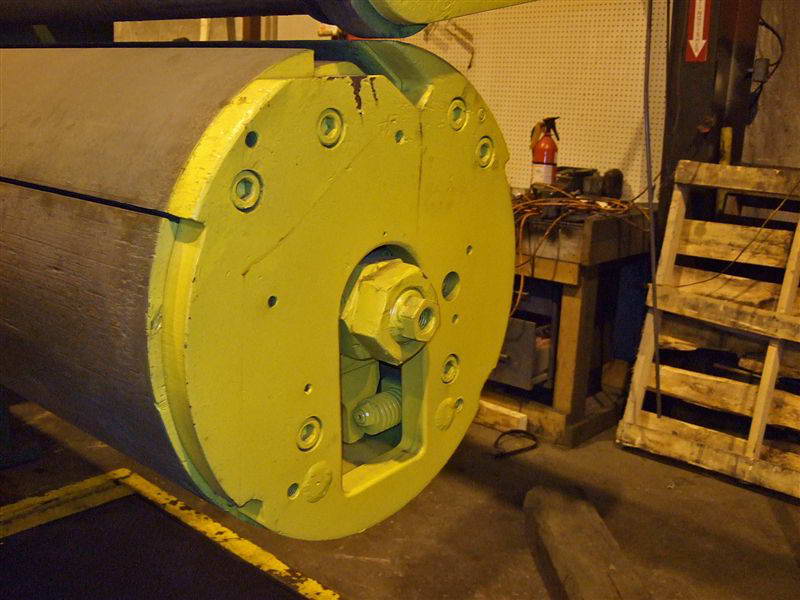

Drum: 24" Dia. x 83.5" Face
O.D. Capacity: 72"
Gripper: Opens To 1.0"
Passline, From Floor To Center Of Drum: 44"

Line Direction: Left To Right

EQUIPPED WITH:

Hydraulic Clamp & Expansion
Overarm Separator
Hydraulic Push-Off
Sliding Base

MOTOR DATA: 300 HP GE DC, 650/1800 RPM, 500 Volt,
(2) Allen - Bradley 1395 Solid State Drives

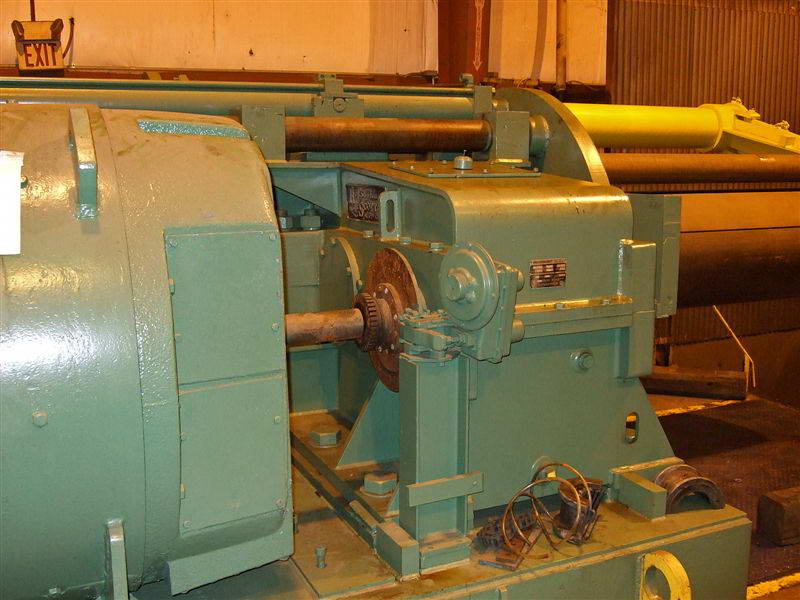

Horsburgh & Scott Gearbox With 38.306:1 Ratio

OVERALL DIMENSIONS: 9'6" L x 10' W x 6'8" High
WEIGHT: 50,000 Lbs.
CONDITION: In Storage

At Location ........................... Toledo, OH
Photos Available
