AGE: 1993
SPECIFICATIONS:
Working Range Finish Diameter: 0.5" - 1-1/2"
Wire Thru Feed Speed: Up to 150 FPM
Diameter Tolerance: -0"/+0.003"
Removal in Diameter: 0.012" - 0.080"
Motor: 100 HP DC 440/3/60
COMPONENTS:

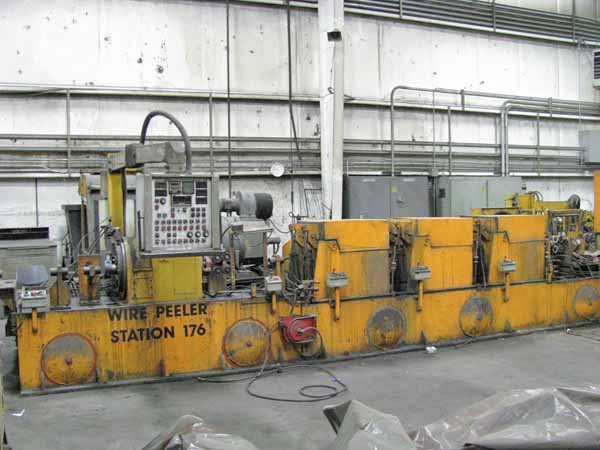

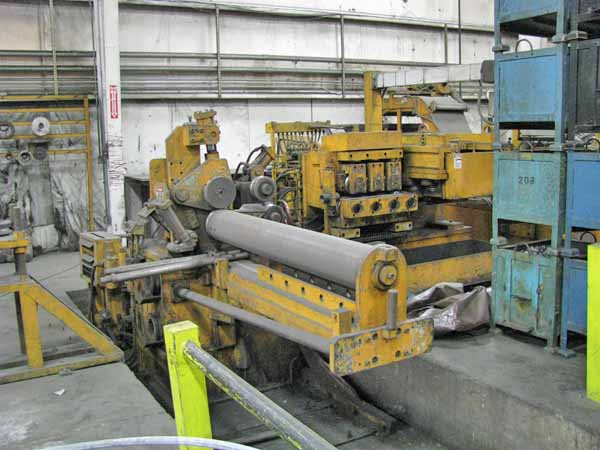

1.) 5,000 Lb. Horizontal Pay-Off Reel
(1) Set of Infeed Rolls
2.) (3) 7-Roll Straightening Sections ((2) Horiz. (1) Vert.)
All Rolls Driver
3.) (1) 4-Roll Infeed Unit, Hydraulically Driven
4.) Shaving Head Mounted on Rod Shaver Spindle
Driven Thru Infinitely Variable SCR Controlled 100 HP Motor
Spindle Runs on Super Precision Angular contact Bearings &
Carries the Shaving Head
Self Centering Material Entry & Exit Guide Assemblies in
Front & Back
(1) 4-Toolholder Shaving Head
Precision Set Up Fixture to Pre-Set Toolholders
Tool Wear Compensation Device
5.) (2) 4-Roll Pinch Roll Units, Air Actuated
5.) (2) 4-Roll Pinch Roll Units, Air Actuated
6.) Items #2 - #5 are Mounted on a Common Steel Frame Base. Steel
Chips Drop Directly onto Chip Conveyor. The Machine Base is also
Used for Recirculating Coolant Reservoir.
7.) (1) Chip Conveyor w/(1) High Pressure Coolant Pump
8.) (3) Belt Polishers, Model BP-2
Working Diameter Range: 0.5" - 1-1/2"
Wire Thru Feed Speed: Up to 150 FPM
Abrasive Belt Size: 8" W x 60" L
Motor: 15 HP AC 460V
Each Belt Polisher Consists of (1) Polishing Head Assembly
w/(3) Rollers ((1) Idle, (1) Tracking & (1) Drive Roll).
A Horizontal Pinch Roll Unit is Mounted on Exit End of
Each Polisher Housing.
9.) (1) Filtering System
10.) (1) Horizontal Straightener Section
11.) (1) Tension Free Recoiler Unit

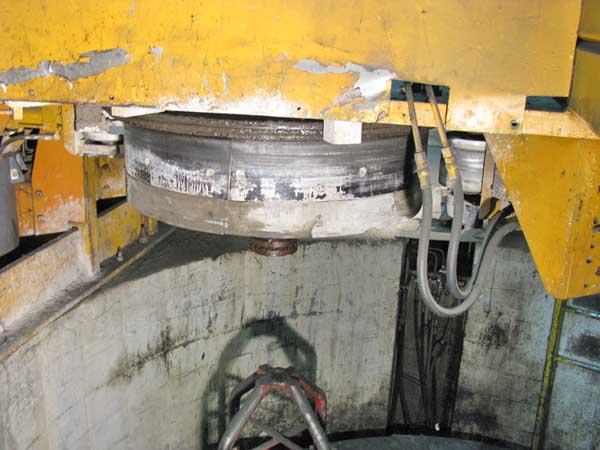

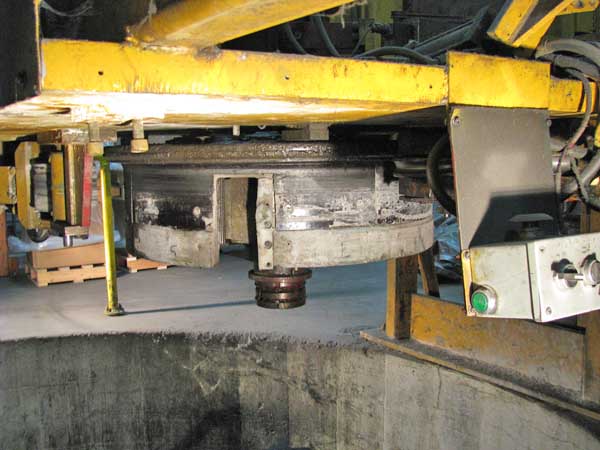

4-Aluminum Roll Feed-Out Unit & 3-Roll Recoiler,
Hydraulically Driven

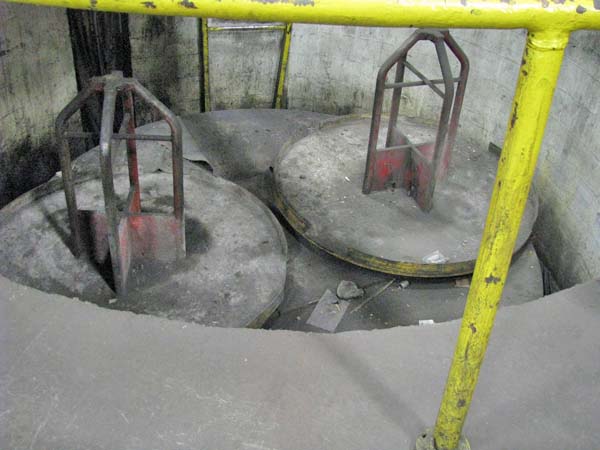

Double Carousel Stand
12.) (1) Hydraulic Power Unit
13.) All Input Electrics are 460V. All Operating Electrics are
110V
110V
14.) (1) Pendulum Mounted Operator's Control Panel
Floor Space Required: 55' x 23' Approx.
