10 STND TISHKEN Stud & Track Roll Forming Line   Our stock number: 47394

10 STND TISHKEN Stud & Track Roll Forming Line

Click on picture below for larger version
10 STND TISHKEN Stud & Track Roll Forming Line10 STND TISHKEN Stud & Track Roll Forming Line10 STND TISHKEN Stud & Track Roll Forming Line

MODEL NUMBER: 20-Y-HW-3

SPECIFICATIONS:

Line Speed: 40 to 140 FPM

CONSISTING OF:

LITTELL Model 40-24 Double End Uncoiler: 28" Coil Width,
Auto Centering, Manual Mandrel Expansion

Entry Guides

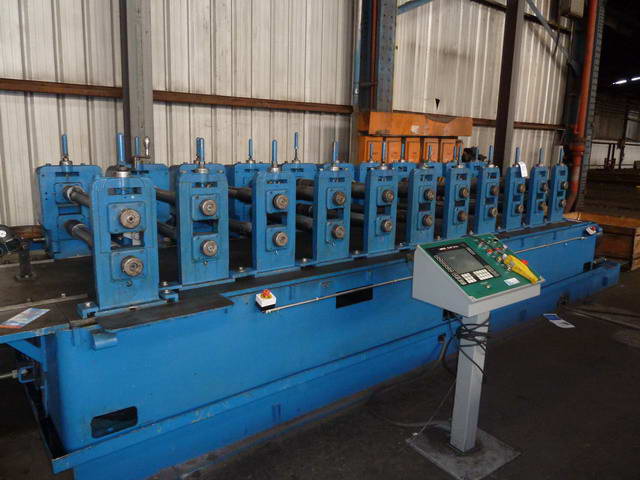

10-Stand TISHKEN Roll Former: 3" Spindle Diameter, 21"
Roll Space, 18" Horizontal Center To Center Distance,
8" Base To Bottom Roll

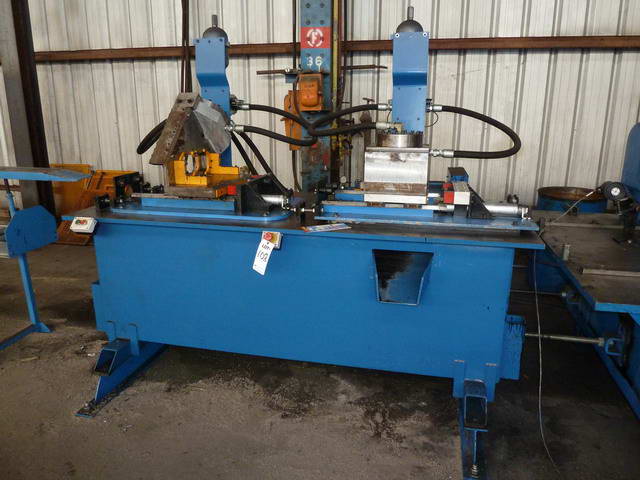

FORM PROCESSING ENGINEERING 2-Station Hydraulic Cut-Off
Press: Post Punch & Shear, Slug Discharge Chute,
Air Boost Slide

25 HP ELECTRIM Main Drive Motor: 230/460/60/3

20-Run-Out Table

Entire Line Controlled By Form Process Integrated
AMS XL 200 CNC Control With Banner Engineering
Model MSCC2I2M, Mini Screen Light Curtain Linked
To Zanasi Z Jet Model 303 Linear Encoder For
Software Reporting Equipped With Pendent Control
For Forward & Reverse

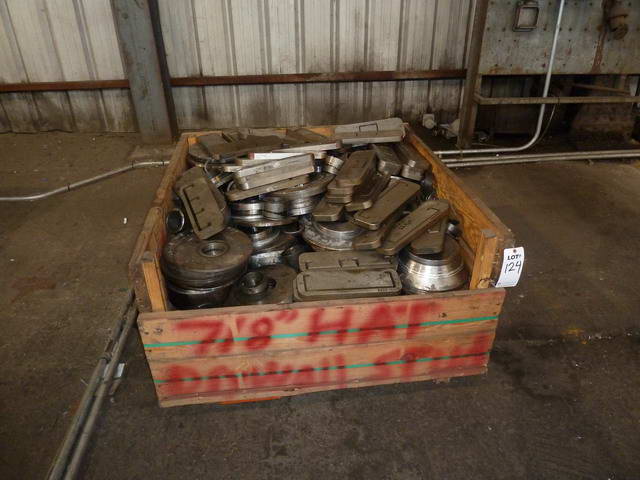

Hydraulic Unit, Tooling & Spares Included

At Location ...........................
Photos Available
