10 STND TISHKEN Stud & Track Roll Forming Line, 3" Spdl Dia, 21" Roll Space   Our stock number: 47393

10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space

Click on picture below for larger version
10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space
10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space10 STND TISHKEN Stud & Track Roll Forming Line, 3 Spdl Dia, 21 Roll Space

MODEL NUMBER: 20-XHW-3

SPECIFICATIONS:

Line Speed: 40 & 80 FPM

CONSISTING OF:

TORRINGTON Single End Uncoiler: 40" Coil Width, Manual
Mandrel Expansion

Entry Guides

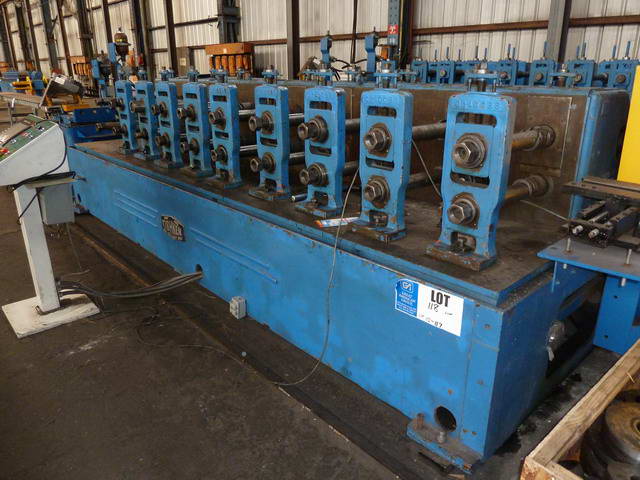

10-Stand TISHKEN Roll Former, 3" Spindle Diameter, 18"
Horizontal Center To Center Distance, 8" Base
To Bottom Roll, 21" Roll Space

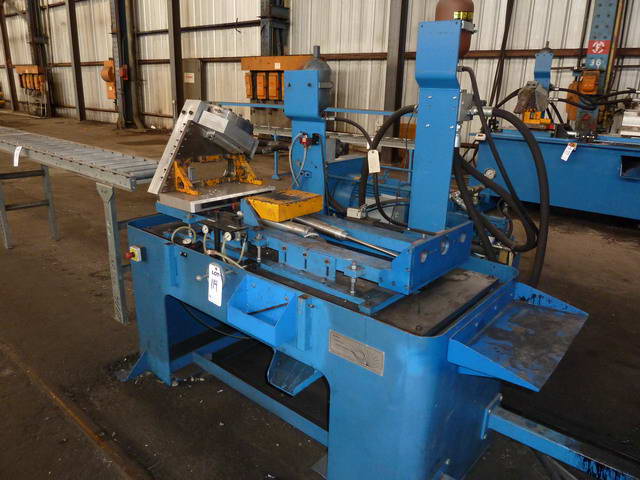

FORM PROCESSING ENGINEERING 2-Station Hydraulic Cut-Off
Press: Post Punch & Shear, Slug Discharge Chute,
Air Boost Slide

20' Run-Out Table

60 HP ELECTRIM Main Drive Motor, 230/460/60/3

AMERICAN INDUSTRIAL Model AC20-3-R65-2P Heat Exchanger:
300 PSI Rated, 400 Degree

Air Operated Post Punch & Shear Slide

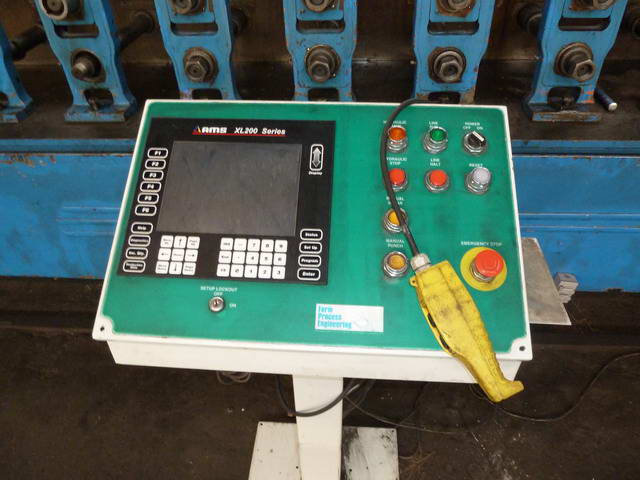

Entire Line Controller By Form Process Integrated
AMS XL 200 CNC Control With Banner Engineering
Model MSCC2L2M Mini Screen Light Curtain, CNC
Control Linked To Zanasi Z Jet Model 303 Linear
Encoder For Software Reporting

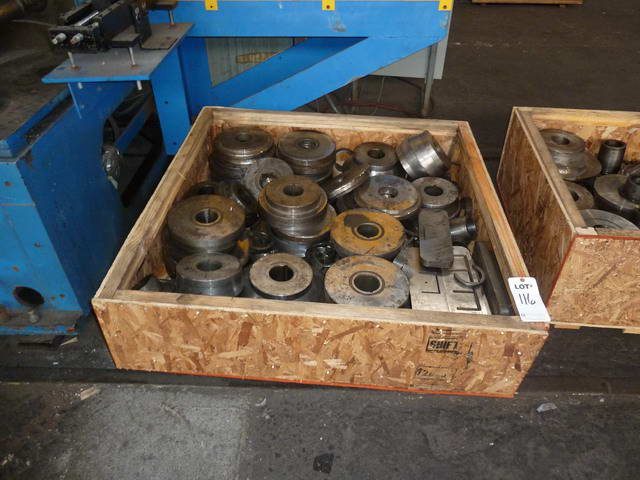

Hydraulic Unit, Tooling & Spares

At Location ............................
Photos Available
