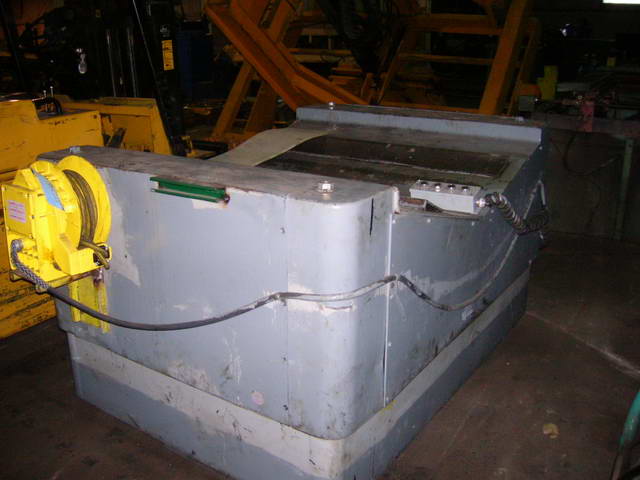

40,000 Lb AETNA STANDARD Uncoiler, 16" to 24" ID, 72" OD, Coil Car   Our stock number: 47372

40,000 Lb AETNA STANDARD Uncoiler, 16 to 24 ID, 72 OD, Coil Car

Click on picture below for larger version
40,000 Lb AETNA STANDARD Uncoiler, 16 to 24 ID, 72 OD, Coil Car40,000 Lb AETNA STANDARD Uncoiler, 16 to 24 ID, 72 OD, Coil Car

SPECIFICATIONS:

Coil Capacity: 40,000 Lbs.
Coil I.D.: 16" to 24"
Coil O.D.: 72"
Mandrel Face: 62"

Line Direction: Left to Right

EQUIPPED WITH:

4-Leaf Hydraulic Expansion
Sliding Base
Holddown Roll
Air Clutch
Air Actuated Disc Brake

40,000 Lbs. ROWE Model BJY-40 Coil Car:

Floor Standing
Motorized Up/Down and In/Out
Push-Button Controls

MOTOR DATA: 10 HP AC Feed-Up Drive

At Location ...........................
Photos Available
