AGE: 2005
SPECIFICATIONS:
Portal Opening: 5' W x 4' High
Components: 2-Stage Washer & Dry Off Oven
Electrical Power: 480/3/60
Fuel: Natural Gas - 2 PSI, 1000 BTU per Cubic Foot

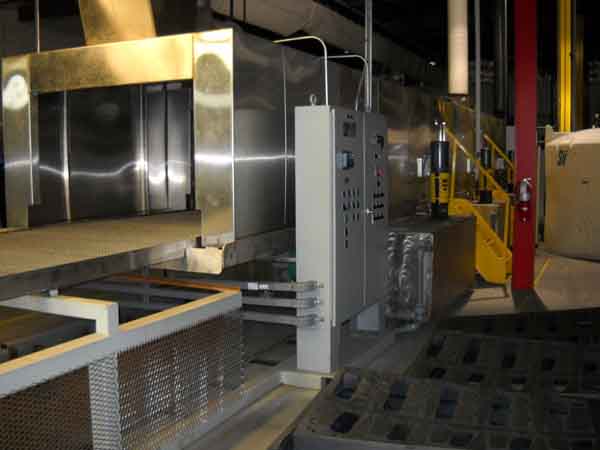

WASHER:
Nozzles: Bex Quick Disconnect Clip-On Type Plastic Nozzles
Spray Risers: CPVC
Pumps: Gusher
Pump Screens: #6 Mesh Stainless Steel, 100 GPM per Foot
Valves: Hayward

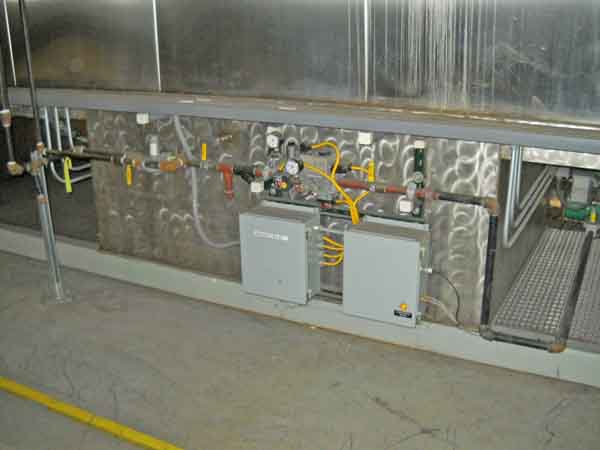

Burners: Eclipse ThermAir
STAGE SPECIFICATIONS 6 FPM:
Entrance Vestibule: 8' L
1st Stage: Clean - 60 Seconds - 6' L - 140 Deg. F
Drain: 9' L
2nd Stage: Rinse - 30 Seconds - 3' L - Ambient Temp.
Drain: 5' L
3rd Stage: D.I. Rinse - 10 Seconds - 2' - Ambient Temp.
Exit Vestibule: 5' L
NOTE: D.I. Unit not available.
PUMPS & NOZZLES:
Stage #1: 252 GPM, 60 TDH, 20 PSI, 84 Nozzles, 756 Gal.
Tank Cap., 7.5 HP Pump
Stage #2: 126 GPM, 60 TDH, 20 PSI, 42 Nozzles, 378 Gal.
Tank Cap., 5 HP Pump
Tank Cap., 5 HP Pump
Stage #3: 5.6 GPM, 60 TDH, 20 PSI, 28 Nozzles

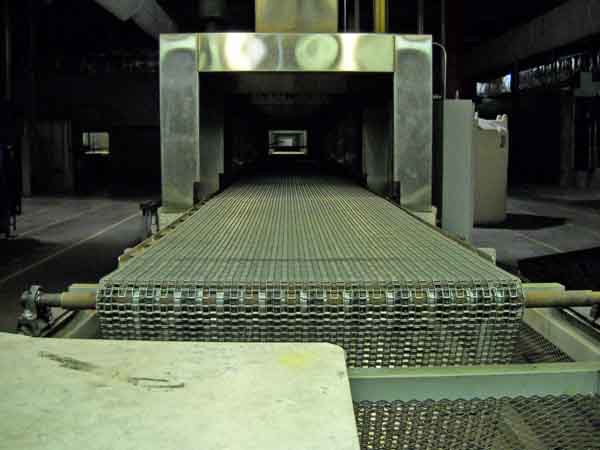

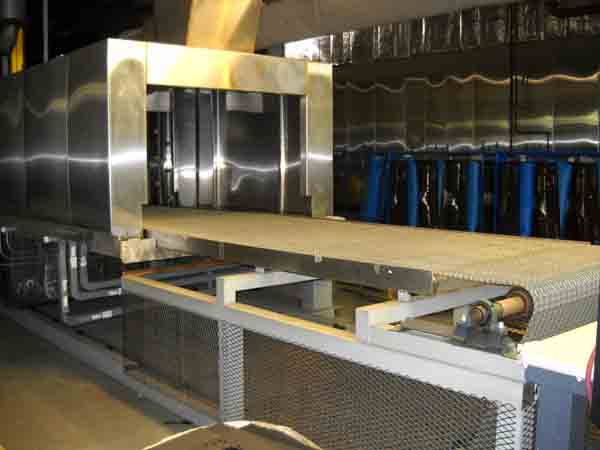

Material fed w/1" Sq. Mesh Stainless Steel Belt, 60" W x
50' L, 2 to 20 FPM, 2 HP
TANK, HOUSING & HEAT EXCHANGER MATERIAL (ALL MATERIAL IS 304 SS):
Stage #1: 1/4" Tank, 12 GA. Housing, 12 GA. Heat Exchanger
Stage #2: 1/4" Tank, 12 GA. Housing
Stage #3: 12 GA Housing

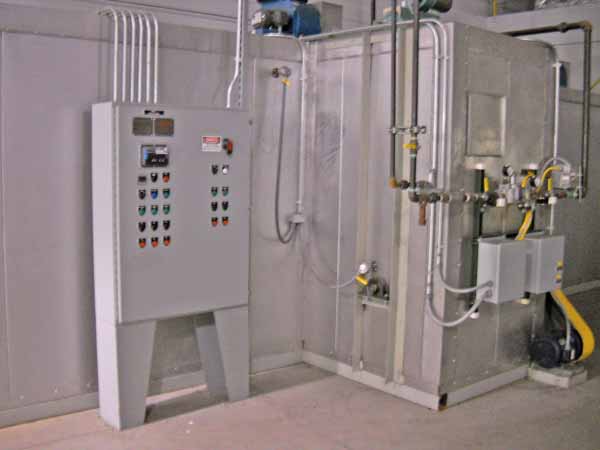

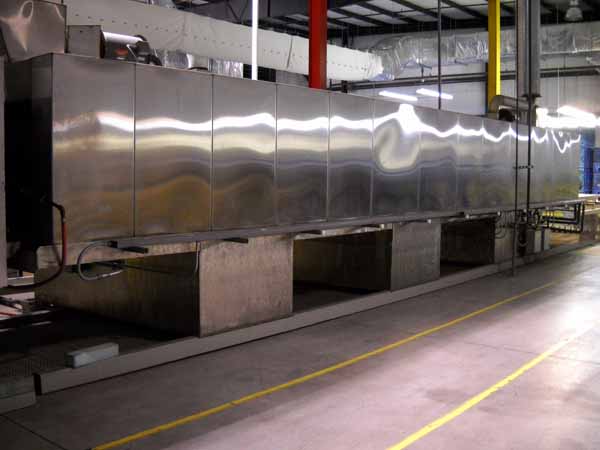

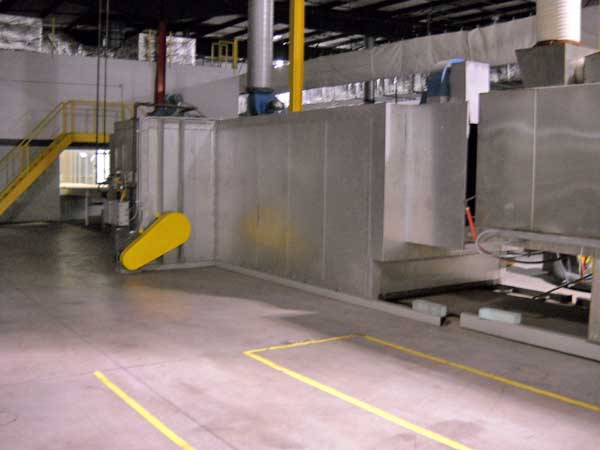

DRY OFF OVEN, NATURAL GAS:
The overall exterior dimensions of the oven will be 30' L,
7' W, 8' High. The oven will provide 5 minutes of dry-off
time at a maximum air temperature of 250 Deg. F.
An exhaust fan will be located on the top of the oven to
vent the products of combustion from the burner & to vent
the required air from the oven interior as determined.
Fed with 1" Sq. Galvanized 60" Wide Belt
Condition: Unit Never Ran Production.
NOTE: Either Washer or Dry Off Oven can be Purchased Separately.
At Location..........................................
**PHOTO AVAILABLE
