SPECIFICATIONS:
Material: Cold Rolled, Hot Rolled, Stainless, Galvanized
Coil Width, Max.: 64"
Gauage, Capacity: .050" to .312"
Coil Weight, Max.: 60,000 Lbs. Entry, 40,000 Lbs. Exit
Coil I.D.: 18" to 22" (27" to 30")
Coil O.D.: 72"
Speed: 1200 FPM
Direction: Right to Left
CONSISTING OF:
4-Arm Entry Turnstile: Powered Rotation, C-Hook Slot,
ID Protective Bars
44" x 34" Entry L-Type Coil Car: Floor Standing, Hydraulic
Lift, Hydraulic Traverse
Mandrel Uncoiler: 4-Lead Mandrel Design, Sliding Base,
Water Cooled Brake, Powered Mandrel Expansion,
Powered Hold-Down Roll, Hydraulic Peeling Table
Entry Pinch Rolls: 66" Width, Adjustable Edge Guides
Entry Crop Shear: Hydraulic Down-Cut Blade

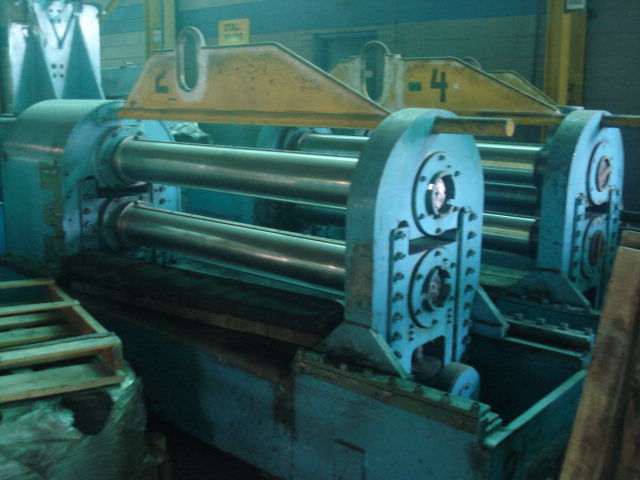

(3) Slitting Heads With 9" Arbor, (1) Slitting Head With
7" Arbor: 66" Arbor Width, .312" (6 Cuts) Max.
Slitting Capacity, Powered Arbor Adjustment, Sliding

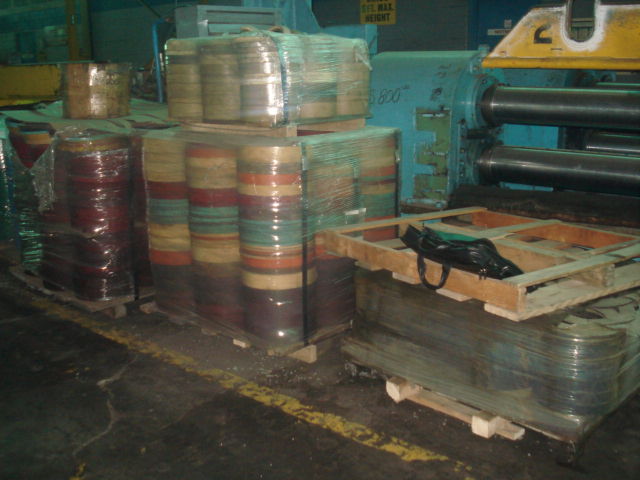

Outboard Housing, Full Set Of Knives & Tooling,
150 HP, Powered Pit Crossover Table
(2) Scrap Winders: Hydraulic Motor, Heavy Duty Design,
Automatic Dumping
Combo Tension Stand: Air Activated Drag Board, Rotary
Tension Unit, Hydraulic Drive, Coated Tension Rolls,
Strip Separation Bar
Pro-Eco Exit Crop Shear: Hydraulic Down Cut Blade

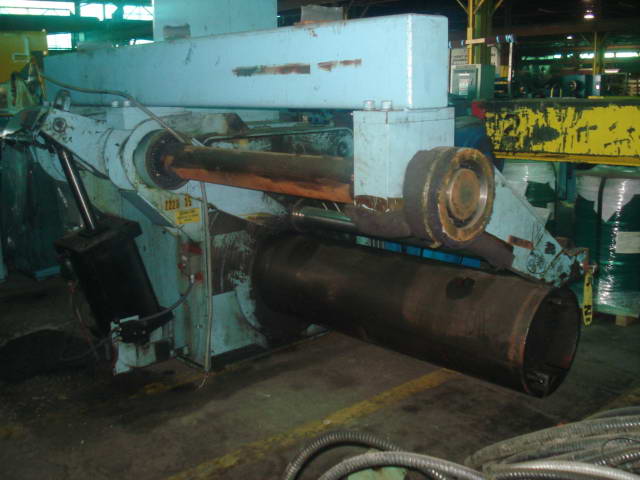

Recoiler: Hydraulic Grip, Powered Push-Off, Powered
Over-Arm Separator, 64" Max. Width, 200 HP DC
2-Arm Turnstile: Hydraulic Push-Off, Powered Rotation,
C-Hook Slot, ID Protective Bars
Complete Line With Electrics, Hydraulics & Controls
At Location ...........................
