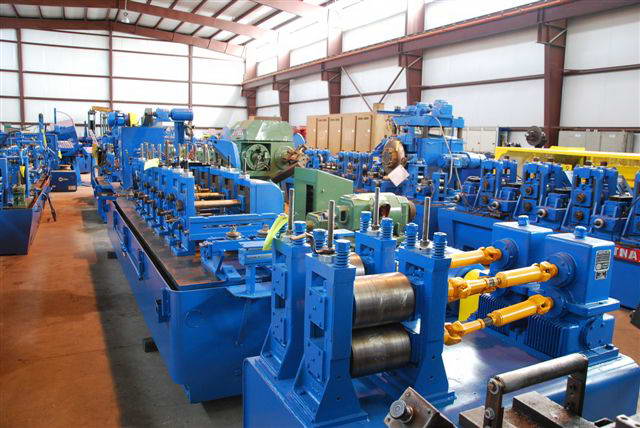

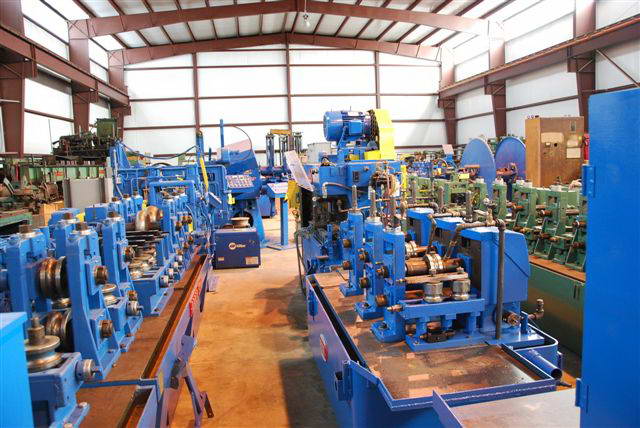

2-1/2" x .095" YODER #M2 Tube Mill Line   Our stock number: 47298

2-1/2 x .095 YODER #M2 Tube Mill Line

Click on picture below for larger version
2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line
2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line2-1/2 x .095 YODER #M2 Tube Mill Line

MODEL NUMBER: M2

SPECIFICATIONS:

Tube Diameter, Max.: 2-1/2" (63mm)
Wall Thickness, Max.: .095" (2.4mm)
Line Speed, Max.: 150 FPM, Max. Gear In Speed, No Load
Spindle Diameter: 2" (50mm)
Roll Space Forming, Fin & Sizing: 13" (330mm)
Horizontal Centers: 15" (279.4mm)

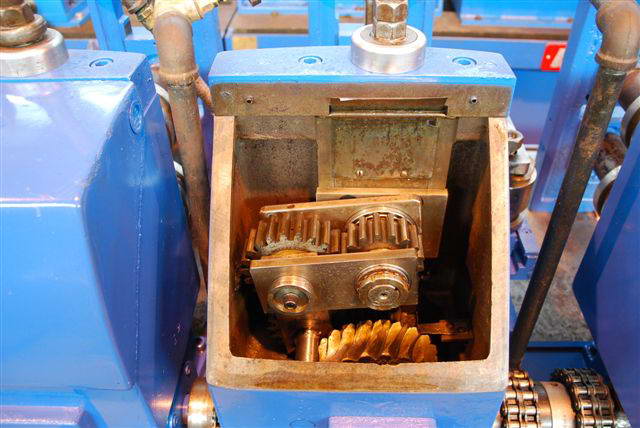

High Speed Yoder Gears

ENTRY EQUIPMENT:

(1) 4,000 Lb. LITTELL Model 40-12 Double Uncoiler
(1) YODER Strip End Detector

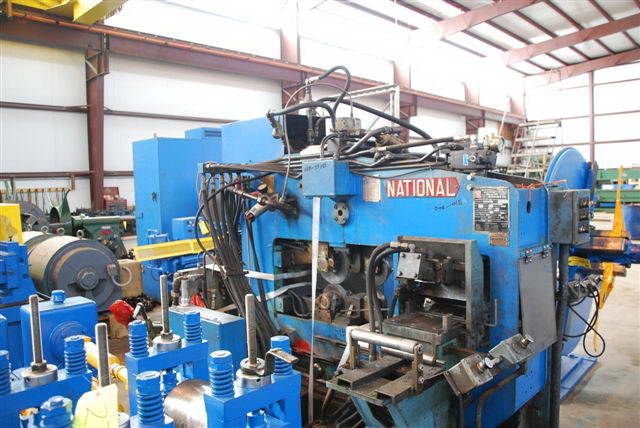

(1) NATIONAL Shear End Welder
(1) MECO MATIC Looping Tower With Carriage
(1) YODER M2-20 Double Pinch Roll Unit

WELDING SECTION:

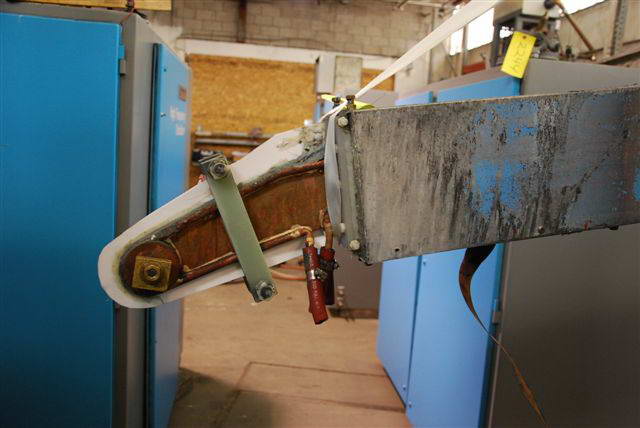

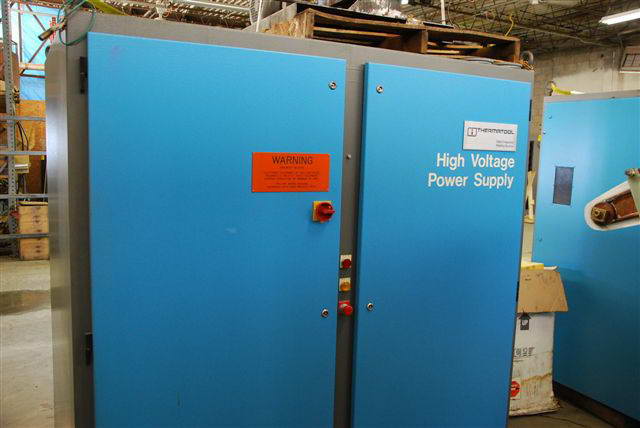

(1) 100 KW H.F. THERMATOOL Model TMI-100 Welder
(1) Coolant Section, Flood Type

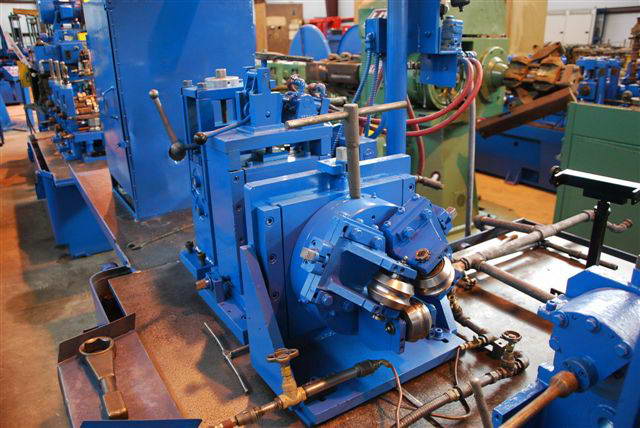

(1) 3-Roll Weld Pressure Unit

CUT-OFF:

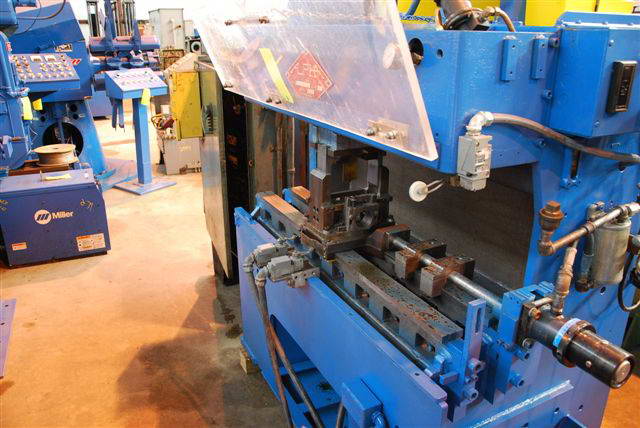

(1) 2-1/2" ALPHA Flying Cut-Off, Clutch & Brake, Single
Cut Die Set, Hydraulic Unit, 33' Run-Out Table

EQUIPPED WITH:

(1) Dual Motor CUTLER HAMMER Drive System
(2) 40 HP D.C. RELIANCE Motors, 440/60/3
(1) Mill Control Panel
(1) Set Of 3/4" Square Tooling

CONDITION: Running Until 2010

At Location ...........................
Photos Available
